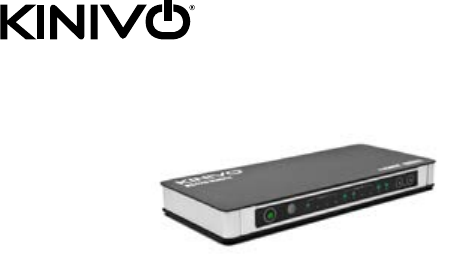

HS420 HDMI 4X2 Matrix User Manual © 2012 Kinivo LLC. All rights reserved. Kinivo is a trademark of Kinivo LLC. Bluetooth word mark and the Bluetooth logo are registered trademarks of Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may not be copied in any media or form without the written consent of Kinivo LLC. Kinivo Product Support Online : http://support.kinivo.com Email : support@kinivo.
Table of Contents Introduction........................................................................................................................ 3 Packing List.......................................................................................................................... 3 Features............................................................................................................................... 3 Smart Function Introduction.........................................................
Introduction The Kinivo HDMI Matrix switch enables up to four different HDMI input source devices (Such as the DVD player, cable box, and gaming console such as the x-box, PS3 etc.) to be connected to two output devices such as the HDTV, video projector etc. It is an easy, convenient and inexpensive solution to expand your home theater setup. Packing List HDMI Matrix Power Supply Remote Controller User Manual Features 1. Supports 4 different HDMI signal input sources and 2 different outputs.
. Supports RS232 remote control. 5. Auto Sensing Feature 6. User can choose between manual or remote operation. 7. HS420 HDMI 4*2 Matrix Switch Supports 4 HDMI input sources & 2 HDMI output sources. Smart Function Introduction 1. When the HDMI Matrix is powered on, it senses the input ports automatically and bypasses input port without signal. 2. Press ‘memory’ button on the remote to get the switch to remember the active input source port(s).
Installation How to connect the switch to your devices 1. Connect the signal source from devices such as Blu-ray, DVD players, gaming consoles such as PS3 and Xbox 360, Set top boxes, etc. into the HDMI Matrix Switch input. (Use HDMI to HDMI cable for HDMI Source or HDMI to DVI cable for DVI Source) 2. Connect the cables from your display devices such as HDTV’s or HD projectors into the HDMI Matrix Switch output. 3. This device is powered by a 5v external power supply (included) 4.
LED Indication Blue LED indicates “Active signal path” No LED indicates “No input signal” Specifications 6 Standard Compliance HDCP 1.
Operating Humidity 5% - 90% RH (No condensation) Product Dimension HS420 – 10.2” x 4.5” x 0.87”, 260mm L x 115mm W x 27mm H Supports Audio Format Supports LPCM, Dolby-AC3, DTS 7.1, DSD Max Working Current 1200 mA Data Transfer Speed 2.25 Gbps/Channel Input Video Signal 5 volts p-p HDMI Output Cable Distance <= 20m(If longer length is required, amplifier must be used) Supports 3D Yes Important Safety Instructions Please read instructions carefully before operation 1.
5. To prevent risk of electric shock or fire hazard, do not block the unit’s ventilation openings. 6. Do not install near any heat sources such as radiators, stoves, heat registers etc. 7. Unplug during lightning storms or when unused for a long period of time. 8. Protect power cord from being pinched, particularly near plug points. 9. Only use attachments/accessories specified by manufacturer.
Switch “A” on the matrix corresponds to HDMI output “A” and Switch “B” corresponds to HDMI output “B”. These buttons can be used to manually select the desired input on their respective output devices. For instance: The button Switch “A” can be used to select the input that goes to output “A” Warranty 1 Year Limited Hardware Warranty.
above. Except for the limited warranty described above we offer no other warranties expressed or implied, and other than limited warranty expressly contained herein, we hereby disclaim any and all warranties, including without limitation any implied warranties of merchantability, suitability or fitness for a particular purpose. If your product is not functioning or you have any concerns please contact Kinivo Support before returning the product. Online Support / Contact Us Please visit us at support.
This page intentionally left blank
1 year limited hardware warranty Kinivo Product Support Online : http://support.kinivo.com Email : support@kinivo.
