CABINET PARTS

For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01

(White) (Black) (Stainless Steel)

5−08 Litho In U.S.A. (CJJ)

Part No. W10185725 Rev. B

REFRIGERATOR

Summary of content (15 pages)

PAGE 1

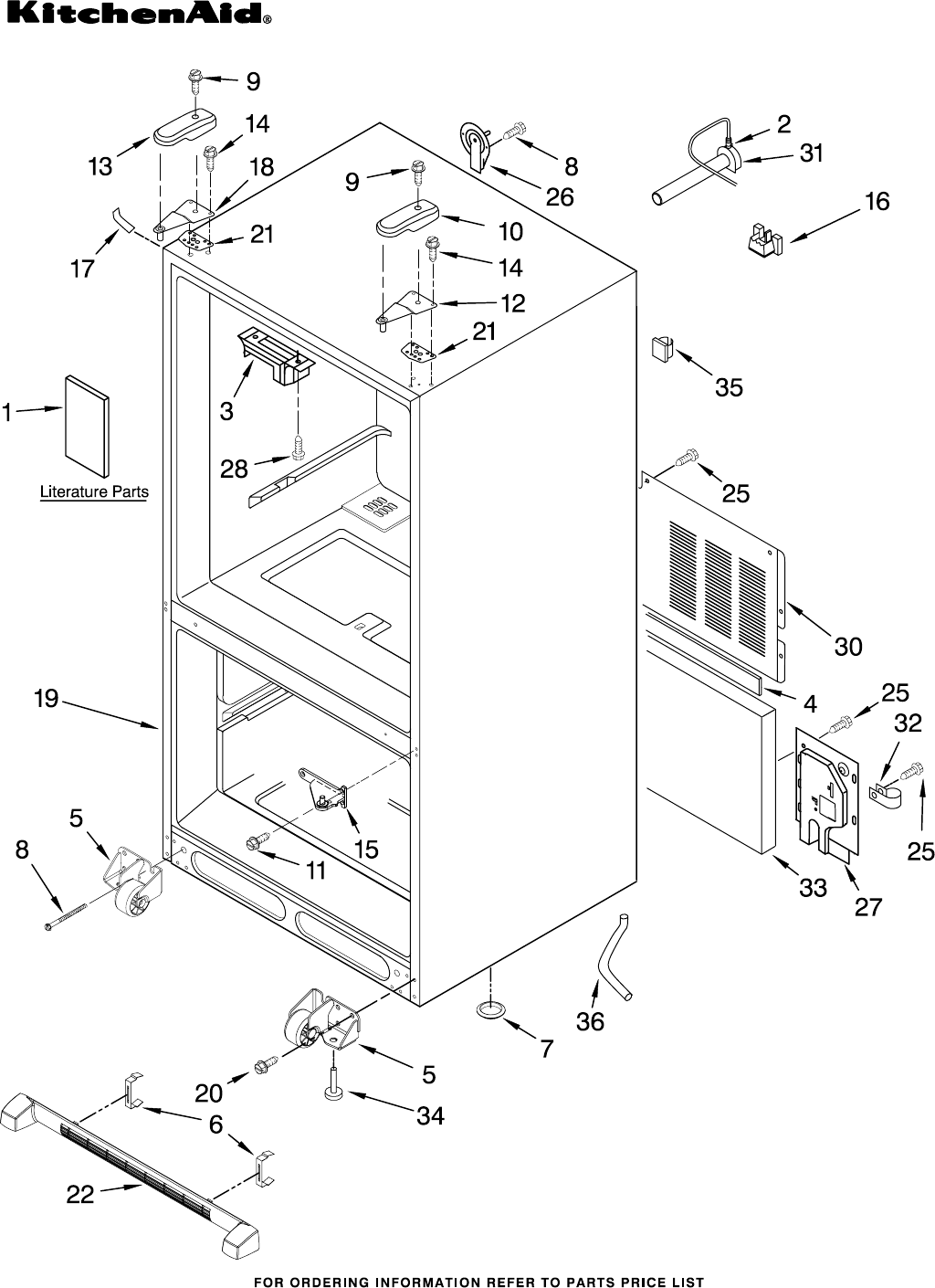

CABINET PARTS REFRIGERATOR For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) 5−08 Litho In U.S.A. (CJJ) 1 Part No. W10185725 Rev.
PAGE 2
CABINET PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. 1 Part No.
PAGE 3
FREEZER LINER PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) W10185725 3
PAGE 4
FREEZER LINER PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. Part No.
PAGE 5
REFRIGERATOR LINER PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) W10185725 5
PAGE 6
REFRIGERATOR LINER PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. Part No.
PAGE 7
REFRIGERATOR DOOR PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) W10185725 7
PAGE 8
REFRIGERATOR DOOR PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. 1 2 3 4 5 6 7 8 9 Part No.
PAGE 9
UNIT PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) W10185725 9
PAGE 10
UNIT PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. Part No. DESCRIPTION 1 67006433 Screw (2) 2 W10162928 Blade, Fan 3 67005889 Basepan 4 67006425 Screw (2) 5 67004954 Screw 6 67005565 Compressor 7 W10119857 Harness, Evap Heater 8 67007175 Drain Pan 9 61004743 Grommet (3) 10 67002493 Evaporator Heater 11 67005562 Capacitor (See Item # 12) 12 67005561 Overload/Relay (Capacitor Incl.
PAGE 11
SHELF PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) W10185725 11
PAGE 12
SHELF PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. Part No.
PAGE 13
FREEZER DOOR PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. 1 Part No. DESCRIPTION Freezer Door (Includes Insulation) W10184822 White W10184823 Black W10184150 Stainless Steel W10185725 Illus. No. Part No. 2 2319727W 2319727B 2319727S 3 67006113 DESCRIPTION Handle White Black Stainless Mount, Handle 13 Illus. No. 4 Part No.
PAGE 14
ICEMAKER PARTS For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. Part No. 1 2 3 4 5 6 67004028 628356 627843 2182124 2195914 7 2315522 DESCRIPTION Mold & Heater Assembly (Not Available −− Order D7824706Q) Arm, Shutoff Cup, Fill Ejector Ice Stripper Support & Motor Assembly Retainer, Thermostat Illus. No. Part No.
PAGE 15
OPTIONAL PARTS (NOT INCLUDED) For Models: KBFS20ETWH01, KBFS20ETBL01, KBFS20ETSS01 (White) (Black) (Stainless Steel) Illus. No. Part No. DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (13 Oz. Spray Can) 350939 Enamel, Black (13 Oz. Spray Can) 350930 Enamel, White (13 Oz. Spray Can) 72017 Brush Touch−Up Kit (White) 72032 Brush Touch−up kit (Black) Illus. No. Part No. DESCRIPTION Refinishing Material 799340 Enamel, Black (1 Qt.
