Assembly Instructions

Important Procedures & Measurements
For Your Installation ................................................... 3
Tools For Installation ................................................... 3
Preparation ................................................................ 4
Wall Cabinets ......................................................... 4-5
Base Cabinets ........................................................ 5-6
Sink / Cooktop .......................................................... 6
Filler Strip .................................................................. 7
Island & Peninsula ................................................... 7-8
Additional Tall Cabinet Box Installation Tips ................... 8
Cover Panels & Mouldings ........................................... 9
Tips For Installing Drawer Kits & Hinges ...................... 10
Quality & Care ......................................................... 11
BEFORE YOU BEGIN INSTALLATION
TABLE OF CONTENTS
2
12" BASE CABINET
DIMENSIONS: 18"W x 30"H x 24"D
INCLUDES: Cabinet Legs
(2) Toe Kick Clips
478-0024
4780
0024
®
VERIFYING YOUR ORDER
Verify that all hardware, fillers, cabinet boxes, fronts,
moulding and accessories you purchased are on site. A
missing item could delay the project.
ORGANIZING YOUR ORDER
Your KLËARVŪE CABINETRY
®
order is going to consist
of cabinet boxes, hinges, drawer kits, hardware, shelves,
door and drawer front, cover panels, and other finishing
items. While it can seem like a lot of pieces, we have
some easy tips and tricks to help you stay organized
during your installation process.
Cabinet Box Label Cabinet Front Label
96" Toe Kick
478-3477
Actual Dimensions:
96"W x 3/4"D x 4-1/2"H
Visit klearvuecabinetry.com for
installation videos, instructions,
care guides and more!
478-3477
96" Toe Kick
© Dakota Panel 2018
Rapid City, South Dakota
VÅRSTA
™
HAVEN
VÅRSTA
™
HAVEN
1
2

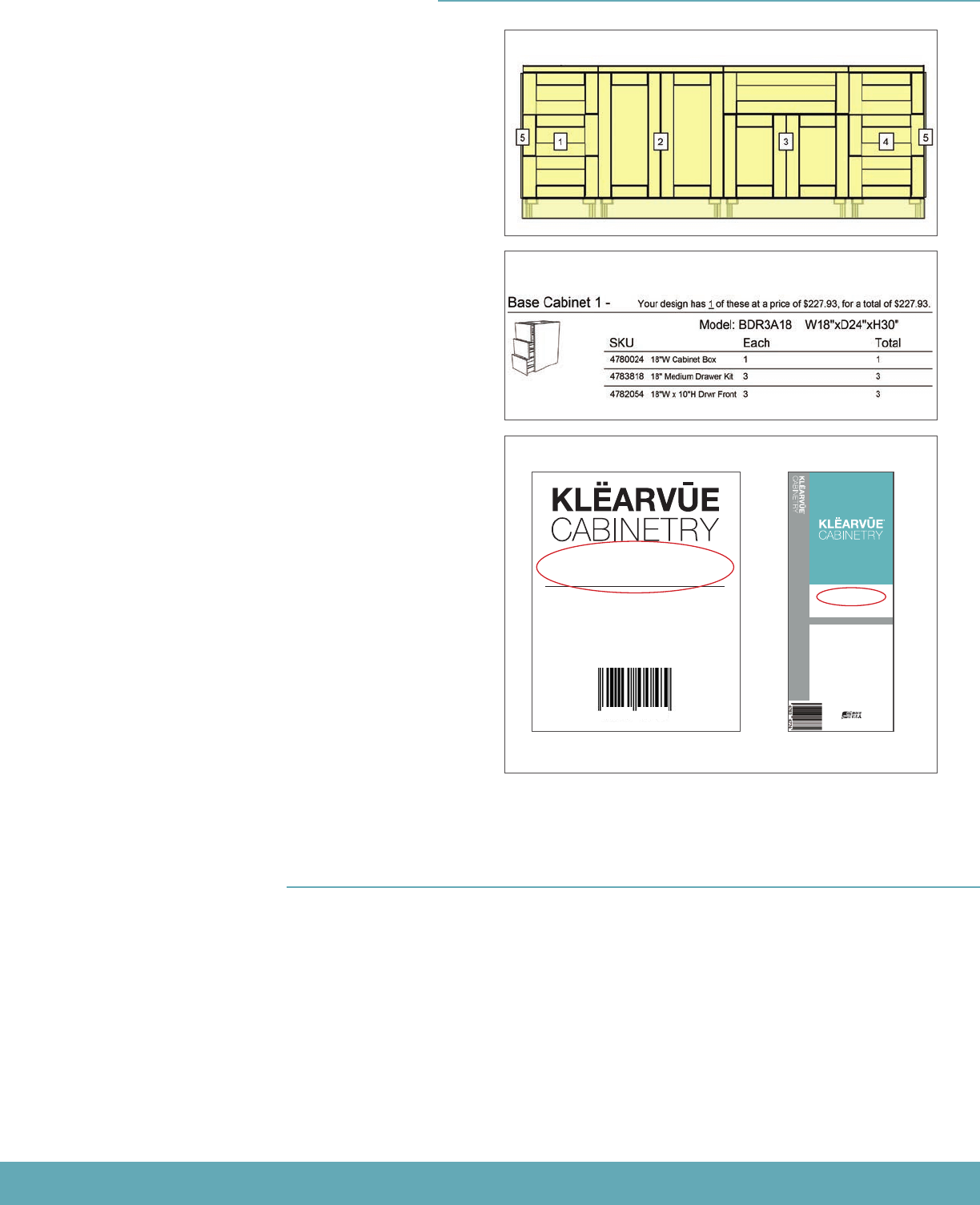

Your KLËARVŪE CABINETRY
®
design packet (generated
from the ŪCRËATË
®
cabinetry planner) will list which
components are intended for each cabinet box
configuration of your layout. Use the numbers on your
floor plan and elevation views with the numbers on the
cabinet list to sort and pair your cabinets with their
components.
You can organize each cabinet configuration by its
SKU. This is listed on the cabinet list of the design
packet, along with the quantity needed. The SKU is
labeled on the outside of each product as well.
FLOOR PLAN
CABINET LIST
SKU LABELS
