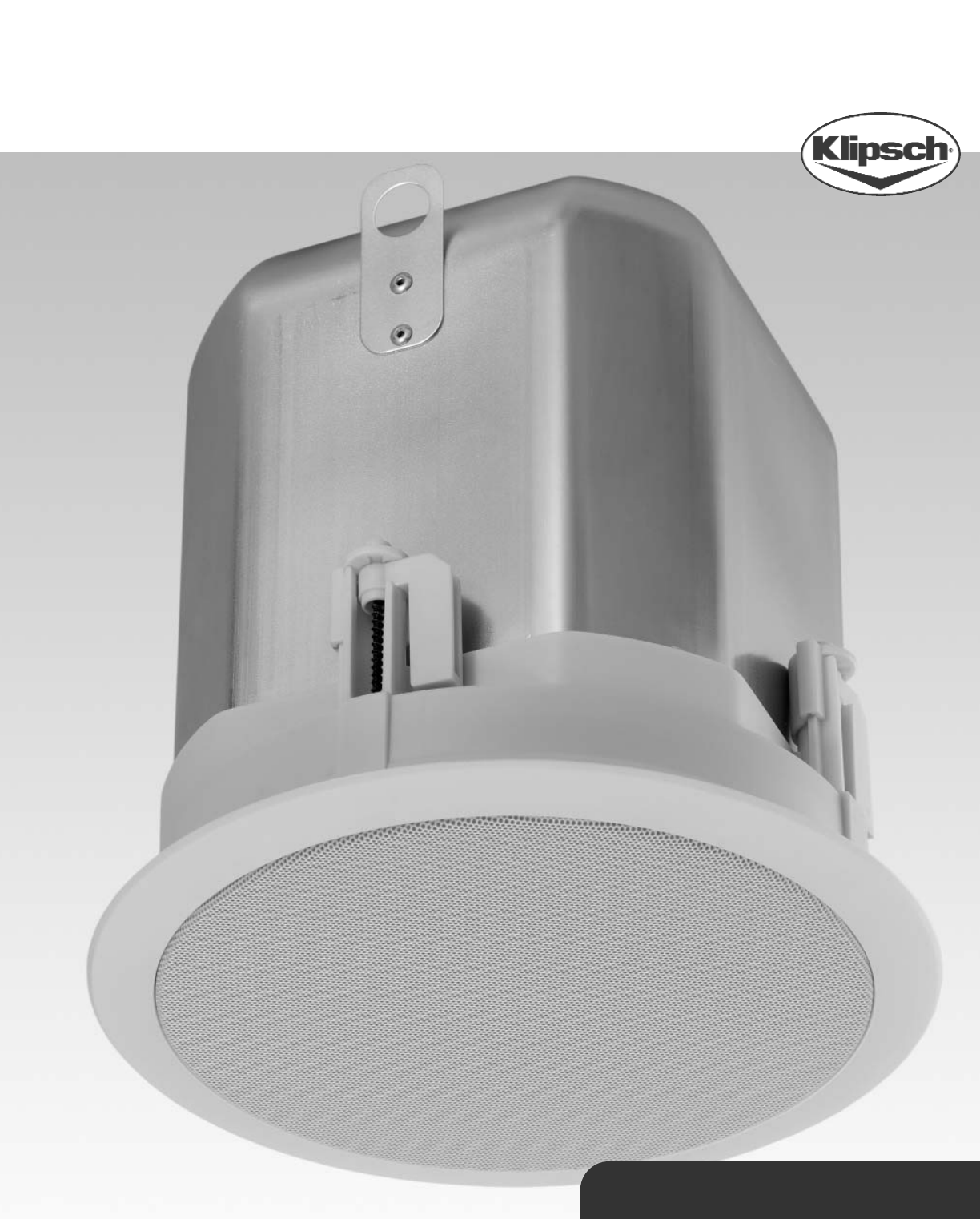

IN-CEILING LOUDSPEAKERS OWNER’S MANUAL AND WARRANT Y
I C - 5 T A N D I C - 6 T Thank you for purc hasing Klipsc h IC-5T and IC-6T in-ceiling speakers. The IC-5T and IC-6T in-ceiling speakers have been designed for speech and music reinforcement applications. Unobtrusive, these loudspeakers are engineered for easy, versatile installation. 3. To install the tilebridge, fold the rail side of the ring back upon itself using the spring tensioner on the reinforcement ring to allow insertion into the cutout hole.
5. Insert the speaker into the cutout hole. With a #2 Phillips screwdriver, tighten the four dog clamps until they are seated securely against the ceiling surface. Do not overtighten. 7. The IC-5T and IC-6T feature a ±15 degree swivel tweeter to aim high frequency sound to a desired location. To aim sound directly at the listening area, gently adjust the horn to the desired angle. 8. Using the flat of your hand, insert grille into speaker frame making sure it is securely seated and flush.
I N I C - 5 T A N D I C - 6 T - C E I L I N G L O U D S P E A K E R S S P E C I F I C AT I O N S IC-5T FREQUENCY RESPONSE C O N T. P OW E R H A N D . C A LC M A X C O N T. O U T P U T SENSITIVIT Y 2.83 V/1M SENSITIVIT Y 1W/1M C OV E R AG E DI Q N O M I N A L I M P E DA N C E DIAMETER C U TO U T D I A M E T E R DEPTH CAN DEPTH WEIGHT I N S TA L L AT I O N K I T 95-20k ± 3dB 75W (34.6V) 104dB 83dB 89.5dB 90 Degrees Conical 8dB 6.3 16 Ohms, 14 Ohm Minimum @180 Hz 9.563" 8.25" 9.375" 9.
Klipsc h Limited Warranty KLIPSCH, AUDIO TECHNOLOGIES ("KLIPSCH") warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of five (5) years from the date of purchase. During the Warranty period, KLIPSCH will repair or replace (at KLIPSCH’s option) this product or any defective parts (excluding electronics and amplifiers).
3502 Woodview Trace, Suite 200 Indianapolis, Indiana 46268 1. 800 . KLIPSCH • www.klipsch.com Make sure you return your warranty card so that we may keep you up-to-date on new Klipsch products and promotions. As always, if you have any questions, contact your local authorized Klipsch dealer. For your records: IC-5T IC-6T Klipsch Audio Technologies 3502 Woodview Trace, Suite 200 Indianapolis, IN 46268 Serial No. Serial No.
