44

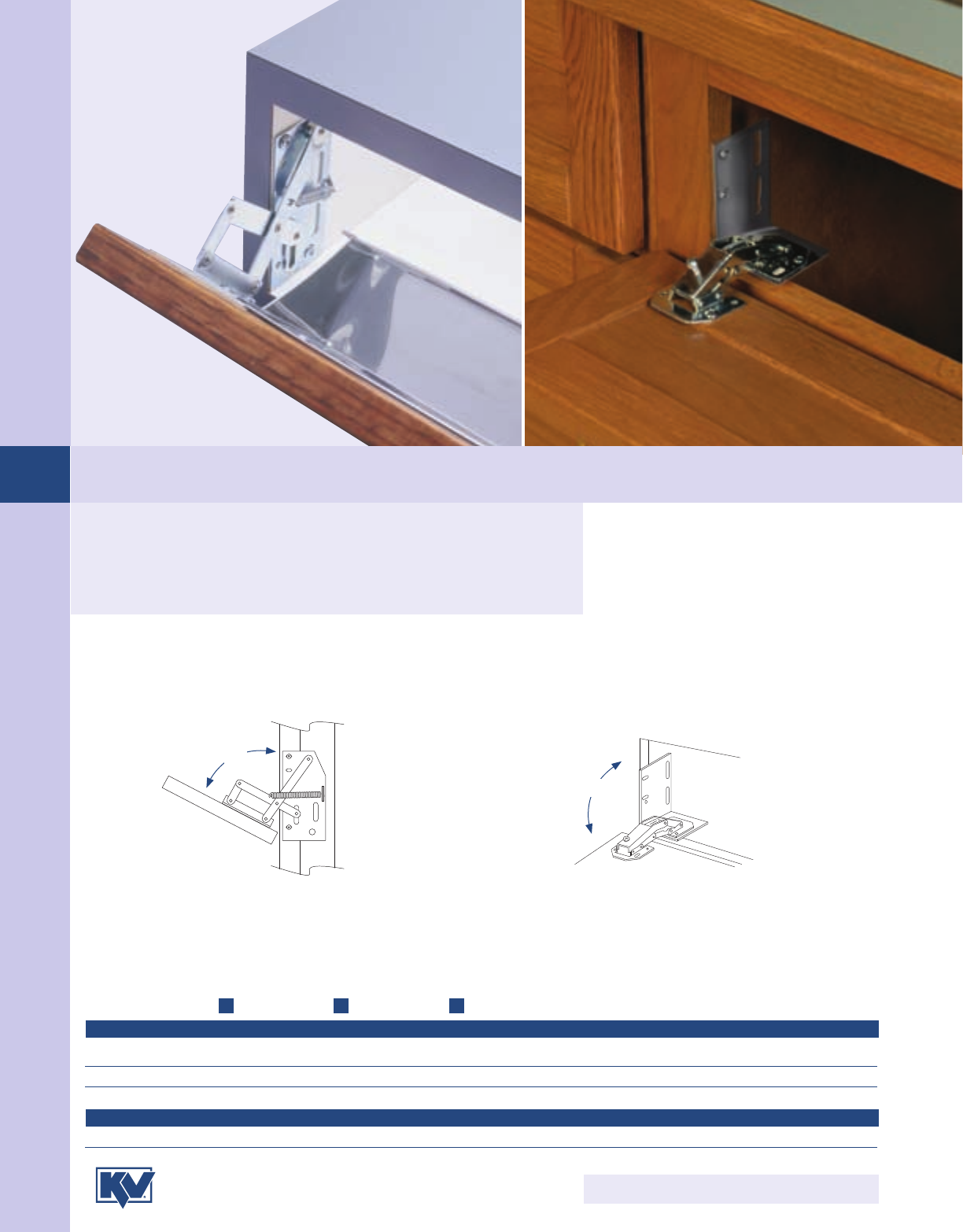

Sink Front Trays
Scissor Hinge
(SH-10)
Euro-Tray Hinge
(ET-H-N)
• Scissor Hinges are spring-loaded and self-closing with internal stop
• For use with faceframe or frameless (Euro-style) cabinetry
• Mounting hardware and instructions included
Scissor & Euro-Tray Hinges
Hinges
Units Weight
Stock # Height Width Depth Finish per Carton per Carton
SH-1-S/P 3-13/16" [97 mm] 2-7/8" [73 mm] 1-7/8" [48 mm] Nickel-Plated 1 pair 1 lbs. [0.5 kg.]
SH-10
3-13/16" [97 mm] 2-7/8" [73 mm] 1-7/8" [48 mm] Nickel-Plated 10 pair 5.1 lbs. [2.3 kg.]
SH-40 3-13/16" [97 mm] 2-7/8" [73 mm] 1-7/8" [48 mm] Nickel-Plated 40 pair 20 lbs. [9.1 kg.]
ET-H-N 2-7/8" [73 mm] 3-3/4" [95 mm] 2-1/4" [57 mm] Nickel-Plated 10 pair 6.4 lbs. [2.9 kg.]
DH
W
SCISSOR HINGES
EURO-TRAY HINGES
40°
Scissor Hinge
(SH-10)
Euro-Tray Hinge
(ET-H-N)
45° - 90°
See page 47 for minimum door dimensions.
