Parts Included
A. Waste Bin (1)
B. Wire Cage (1)
C. Sliding Base Assembly (1)
D. Mounting Screws (4)
E. Lid (if supplied)
Tools Required
• Phillips Head Screwdriver
Optional
• Drill with 1/16˝(1.5mm) bit for
drilling pilot holes
• Pencil
Product Assemblies
PLSW9-1-20
PSW9-1-20
PSW10-1-35
PSW12-1-50
PSW15-1-20
PSW15-1-35
Place sliding base assembly on cabinet floor, in desired position. Position front
Mounting Strap against the back edge of the cabinet face frame. If installing in a
frameless cabinet, measure 1/2˝ to 3/4˝ back from front of cabinet opening, and
align sliding base assembly parallel to cabinet opening. Close door to make sure
the assembly will not hold cabinet door open. Also, check to see if unit will clear
the door opening when fully extended. Once position is determined, fasten in
place using four mounting screws provided and a Phillips head screwdriver.
Optional Step:
Mark placement of mounting holes with a pencil, remove sliding base assembly
and drill pilot holes for fastening screws. Place sliding base assembly back into
position and fasten with the provided screws.
If sliding members are fully extended, return to closed position. Hold the wire cage
over the sliding base assembly so that the cage aligns with the clip retainer built
into the side of the sliding members. The orientation of your bin is deomonstrated in
the Top View chart below. Pushing firmly, lower wire cage into clip retainers until
fully seated. (NOTE: Never install wire cage(s) when slides are extended.) Insert bin
into cage, place lid on top of bin (if supplied) to complete the installation. If your
unit does not come pre-packed with a lid and you would like a lid, visit www.kv.
com to purchase the lids you require.

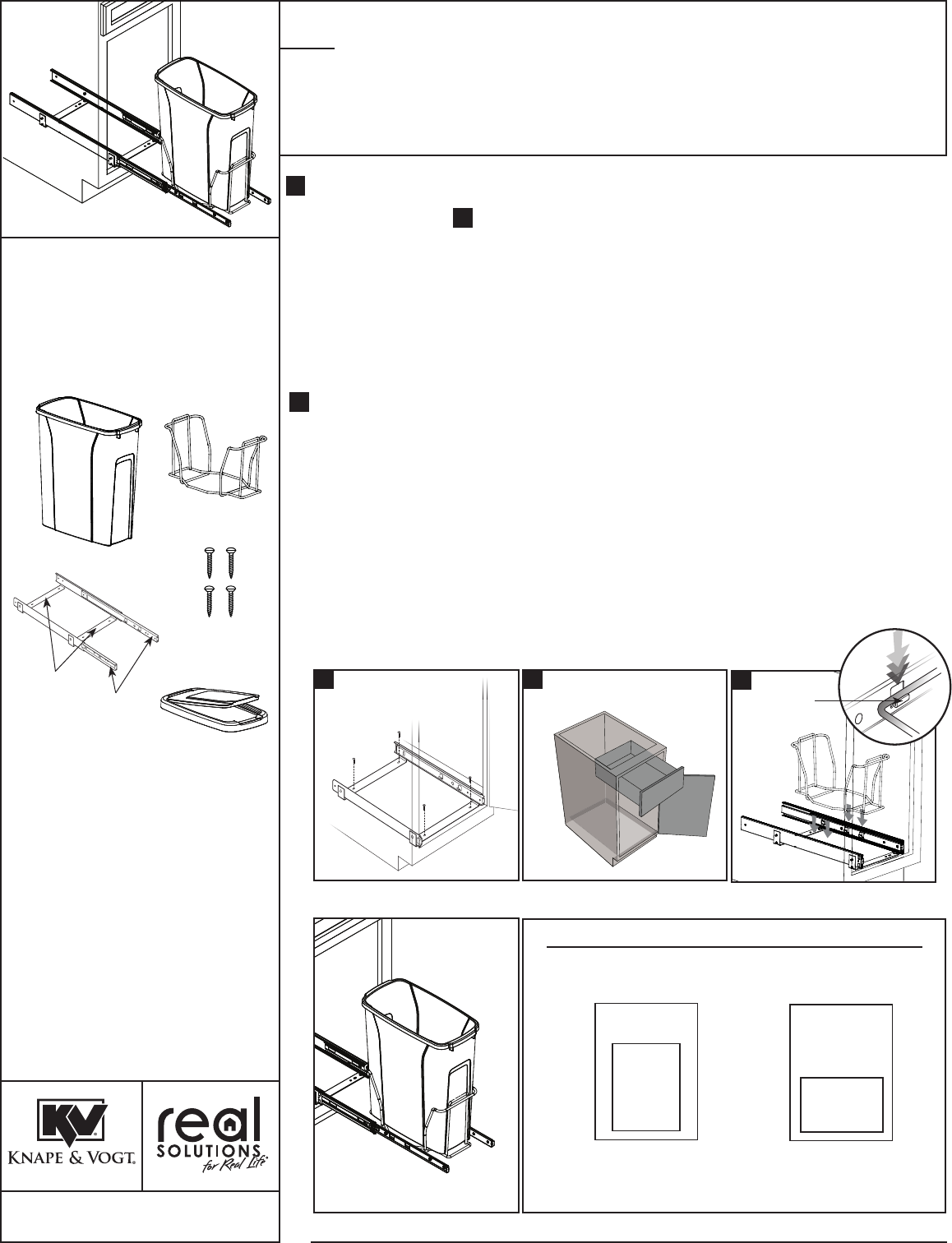

SLIDING SINGLE WASTE BIN
Installation Instructions
310162-0609
Inspect all parts and read all instructions prior to
beginning assembly and installation.
2
1
1
2
BIN
Top View
PLSW9-1-20
PSW9-1-20
PSW10-1-35
PSW12-1-50
PSW15-1-35
A
A
Single Bin
BIN
PSW15-1-20
Overall
Cabinet Width:
12", 15" & 18"
Overall
Cabinet Width:
18"
2700 Oak Industrial Drive NE , Grand Rapids, MI 49505 USA
800.253.1561 • 616.459.3311 • www.kv.com
©2009Knape & Vogt. All rights reserved. Knape & Vogt
®
reserves the right to change specifi cations without notice. Made in USA.
AB
D
E
Clip
Retainer
C
Mounting
Straps
Sliding
Members
