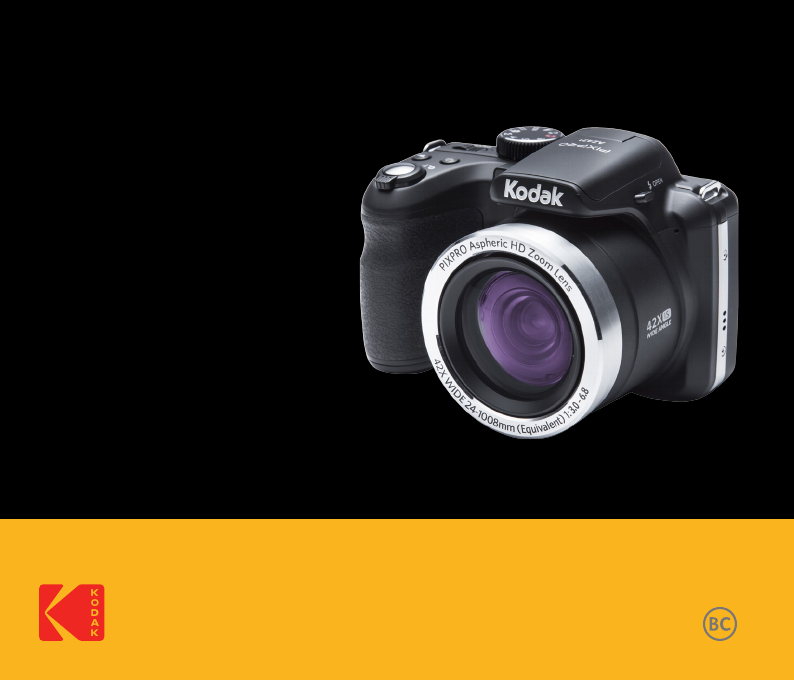

KODAK PIXPRO AZ421 DIGITAL CAMERA User Manual
BEFORE YOU START Declaration of Conformity Responsible Party: JK Imaging Ltd. Address: JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA JK Imaging Europe, 71 Clarendon Road, Watford, WD17 1DS, UK Company Website: kodakpixpro.com For Customers in the U.S.A. Tested to Comply with FCC Standards FOR HOME OR OFFICE USE Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
For Customers in Europe “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” marked cameras are intended for sales in Europe. This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate collection of electrical waste and electronic equipment in the European countries. Please do not throw the equipment into domestic refuse.
SAFETY NOTES Safety notes for this camera Do not drop the camera or allow it to hit solid objects. Do not attempt to disassemble or repair the camera. To prevent the camera from being damaged by moisture, do not use or store the camera in very humid environments, such as in rain or near bodies of water. Do not use or store the camera in dusty places or on a beach to prevent dust or sand from entering the camera, causing possible damage to it.
Safety notes for battery If the rechargeable Li-ion battery is used for the camera, only charge it with the supplied battery charger. If battery fluid leaks inside the camera, contact our customer service department immediately. If battery fluid leaks onto your skin, rinse your skin with clean water and seek immediate medical attention. Disposal of used batteries should be carried out in accordance with the local (national or regional) regulations.
Safety notes for memory card Do not drop the memory card or allow it to hit solid objects to avoid damaging it. Do not attempt to disassemble or repair the memory card. Do not expose the memory card to water. Always keep it dry. Do not remove the memory card when the camera is turned on. Otherwise, the memory card and photo/video files could be damaged. Do not directly edit the data on the memory card. Copy the data to your PC before you edit the files.
Other Safety Notes Do not disconnect the power or turn the camera off during the update process. Doing so may cause incorrect data to be written and the camera may not power on later. Do not hang the neck strap of the camera around the neck of a child. When using your camera on an airplane, observe the relevant rules specified by the airline. Due to the limitations of manufacturing technology, the LCD screen may have a few dead or bright pixels.
CONTENTS BEFORE YOU START................ 1 MODE OVERVIEW..................22 SAFETY NOTES....................... 3 Display Setting...................................22 CONTENTS.............................. 7 Overview of the Screen Icons in Photo Shooting Mode....23 GETTING READY.....................11 Overview of the Screen Icons in Movie Mode....................25 Accessories Included.........................11 Overview of the Screen Icons in Playback Mode...............
BASIC OPERATION................ 39 Using the Zoom Function..................39 Focus Setting.................................... 40 Macro Mode.......................................41 Self-Timer Setting...............................42 Flash Mode ........................................43 White Balance Setting........................44 Continuous Shot................................45 EV Setting...........................................46 Using Zoom Playback.........................
Quick Review...............................62 Protect..........................................75 Custom Settings..........................62 Delete...........................................76 Face Detection.............................63 DPOF.............................................77 Movie Menu........................................64 Trim...............................................77 Expo Metering..............................64 Setup Menu........................................
CONNECTIONS..................... 84 Exit................................................94 Connecting to a Computer................84 APPENDICES.........................95 Setting the USB Mode.................84 Transferring files to your computer......................................... 85 Video System.....................................86 Set Eye-Fi SD Card Connection Mode.. 87 Supported HDMI Connections..........88 Connecting HDMI-Ready TV........88 Connecting to a PICTBRIDGE™ Compatible Printer....
GETTING READY Accessories Included Your camera box should contain the camera model you purchased along with the following accessories. If anything is missing or appears to be damaged, please contact your retailer first or our customer service center. (Based on sales in different countries regions, the shape of the AC adapter will vary.
Install lens cap and neck strap 12
Part Names 1. Zoom Lever 2. Shutter Button 3. Strap Eyelet 4. Exposure Compensation Button 5. Continuous Shot Button 6. Power Switch 7. AF Assist Beam/Self-Timer Lamp 8. Mode Dial 9. Flash Lamp 10. Flash Button 11. Microphone 12. Speaker 13.
14. I Button 15. Indicator Lamp 16. Fast Video Recording Button 17. Menu Button 18. Micro USB Port 19. Micro HDMI Port 20. AF Button/Arrow Button (Up) 21. Flash Button/Arrow Button (Right) 22. Delete Button/Self-Timer Button/ Arrow Button (Down) 23. Display Button 24. Battery Cover 25. Playback Button 26. Tripod Socket 27. Macro Button/Arrow Button (Left) 28. SET Button 29.
Installing Battery and Memory Card 1. Open the battery cover. 2 2.
3. Insert the memory card into the memory card slot as shown in the diagram below: 4. Close the battery cover. 1 Write protection buckle 2 A standard SD memory card is not included in the camera packaging and needs to be purchased separately. This camera takes a standard (SD/SDHC) memory card. We recommend using a name brand memory card that is Class 4 or higher and has a capacity of 4GB to 32GB.
Charging Battery Before charging the battery, ensure that the battery is inserted properly and the camera is off. 1. Connect the camera and the power charger using the supplied USB cable. (The plug shape of the power charger may vary depending on the country or region. The actual item may vary from the drawing below). 2. Insert the plug of the power charger into the wall outlet to charge the battery. 1 2 The charger is for indoor use only.
3. When the camera is turned off, you can also connect the camera to your PC using a USB cable to charge the battery. 3 Indicator lamp Charging indicator: Red: Charging The indicator will go out once charging is finished. To have maximum battery life, charge the battery for at least 4 hours the first time. Please charge the battery indoors between 0°C and 40°C (32°F and 104°F).
Turning Camera On and Off Slide the power switch to turn on/off the camera. Power Switch How to Take Pictures 1. Hold the camera securely with both hands, being careful not to block the flash and lens with fingers. 2. Point the lens toward the object you want to take a picture of. 3. Use the zoom lever to select Tele or Wide position to zoom in or out on your subject. 4. Press the shutter button down half-way to allow the camera to focus on your subject.
Set your Language, Date/Time Set your Language, Date/Time after the First Power-On 1. When you turn the camera on for the first time, the language selection screen appears. 2. Press the arrow buttons to select your desired language. 3. After you press the button to confirm the selection, the Date/Time settings screen appears. 4. Press the left/right arrow button to select the Date/Time to be adjusted: Time is displayed in YYYY:MM:DD / HH:MM. 5.
5. Press the left/right arrow button to select the Date/Time to be adjusted: Time is displayed in YYYY:MM:DD / HH:MM. 6. Press the up/down arrow button to press the value for your selected block. After you finish your settings, press the button to confirm. Resetting Date/Time 7. Press the button and the following snapshot screen appears. After you set your Date/Time for the first time, follow the instructions below to reset date and time. 1. Turn the power switch to turn on the camera. 2.
MODE OVERVIEW Display Setting Press the button to display the settings: Classic, Full, Off. Classic: Displays the camera parameters on screen SD 1234 16M 00:56:00 F3.0 1/50 -0.3 EV 400 ISO Full: Camera parameters with Grid and Histogram SD 1234 16M 00:56:00 F3.0 22 1/50 -0.
LCD Screen Display Overview of the screen icons in photo shooting mode 3 2 1 4 1 SD 6 7 19 8 18 1234 17 16M 16 15 22 1/50 -0.3 EV 14 13 400 ISO 12 9 10 00:56:00 F3.0 Auto Mode Face Beautifier Program AE Panorama Mode Shutter priority Scene Mode Aperture priority Custom Settings 5 x1.0 20 Shooting Mode Icons Manual Mode 2 Macro Mode 11 3 Zoom Display (By turning the Zoom Lever) 4 SD Memory Card/Built-In Memory 21 5 Battery Status 6 White Balance (Adjustable in SD x1.
10 Video Quality 11 ISO Value (Adjustable in Self-Timer Off Self-Timer 2 sec Mode) 12 Remaining Recording Time Self-Timer 10 sec 13 Exposure Compensation (EV value) (Adjustable in Mode) 14 Shutter Speed (Adjustable in Mode) 15 Histogram 22 Flash Mode Force Off 16 Aperture Value (Adjustable in Mode) Flash Auto 17 Image Stabilization Slow Sync.
Overview of the Screen Icons in Movie Mode 1 2 3 5 4 7 Color Effect 8 Video Quality 9 Remaining Recording time 6 10 Exposure Compensation (EV value) 11 Image Stabilization SD x1.0 12 Focus Frame 15 7 14 12 11 00:56:00 10 9 Movie Mode Icons 2 Macro Mode 3 Self-Timer Self-timer Off Self-timer 10 sec 4 Zoom Display (by turning the Zoom Lever) 5 SD Memory Card/Built-In Memory 6 Battery Status 8 AiAE Spot -0.
Overview of the Screen Icons in Playback Mode 1 2 3 1/45 SD 13 4 5 12 11 10 6 x2 7 8 2014 07-18 00:00 9 26 1 DPOF File 8 Image Zone 2 File Protection 9 Shooting Date 3 Memory space (indicating the current number of photos and total number of photos) 10 Eye-Fi ON (with signal) 4 SD Memory Card/Built-in Memory 11 Red-Eye Reduction 5 Battery Status 12 HDR 6 Zoom Magnification Area 13 Date Folder 7 Image Zoom Ratios
Using the Mode Dial This camera provides a convenient mode dial that allows you to manually switch between different modes with ease. The available modes are listed below: Mode Name Auto Mode Program AE Shutter priority Aperture priority Manual Mode Icon Description In this mode, the optimal conditions for taking pictures will be set based on the subject and environment. It is the most commonly used mode for taking pictures.
Auto Mode Auto Mode is the easiest mode to take photos. While operating in this mode, the camera automatically optimizes numerous camera settings to adjust your photos and videos for the best possible results. SD Follow these steps: 1. Turn the power switch to turn on the camera. 2. Turn the Mode Dial to . 3. Compose your picture in the LCD screen and press the Shutter button halfway down to focus on the subject. 4. The LCD screen will show a green focus frame when the subject is in focus. 5.
Program AE Shutter Priority When (Program AE) mode is selected, you can adjust the EV value and ISO value. 1. Turn the mode Dial to and press the button to configure settings. When (Shutter Priority) is selected, you can adjust the shutter speed ,ISO value and EV value. The camera automatically sets the aperture value based on the shutter speed value and ISO value to get the most appropriate exposure value. 1. Turn the mode Dial to and press the button to configure settings. F3.0 1/50 -2.
Aperture Priority Manual Mode When selecting (Aperture Priority) mode, you can adjust the aperture size / EV value and ISO value. Selecting a large aperture opening will emphasize the point of focus and show a blurry background and foreground. A small aperture opening will keep both the background and main object in clear focus. 1. Turn the mode Dial to and press the button to configure settings. When selecting manual ( ) mode, you can set the aperture / shutter speed manually and ISO value. 1.
Face Beautifier In Portrait Mode, the camera is set to automatically adjust camera exposure for realistic portrayal of skin tones. Beautifier Mode has 3 effects: • Effect 1: Skin Soften 1. Turn the Mode Dial to select Face Beautifier Mode ( ). • Effect 2: Skin Soften + Eye Brightening 2. Press the button and press the up/ down button to select . • Effect 3: Skin Soften + Eye Brightening + Eye Enlargement 3.
Panorama Mode With Panorama Mode, you can take a series of pictures which will be stitched automatically into a ultra-wide (up to 180o) panoramic picture by the camera. Follow the steps below: 1. Turn the Mode Dial to Panorama Mode ( ). 2. Press the arrow buttons to select a shooting direction. (The right direction is used as default if you do not make any choice) 2 seconds later, the camera is ready to take pictures.
6. If you take 4 pictures, the camera will automatically stitch the pictures. Press the playback button to enter playback mode to see the effect. Flash Mode, Self-Timer, Macro Mode, and Exposure Compensation are all disabled in Panorama Mode. In the process of shooting in the panoramic mode, when the LCD screen shows “Improper alignment. Please try again.”, it means that in the process of camera moving, the moving angle is off the green line, shooting can't be done. You will have to try again.
Scene Pet Mode 34 Description Rapidly identifies pet (dog/cat), capturing the dynamic moment of pet. Sunset For sunsets. Captures subjects in strong sunlight. Fireworks For fireworks at night. Slower shutter speed is adjusted for brilliant images. The use of a tripod is recommended. Sport For fast-moving subjects. Captures sharp, action shots with minimal blur. This mode is not recommended for shooting indoors. Night Portrait For portraits against night scenery.
Auto Scene Mode (ASCN) In “ASCN” scene mode, the camera can detect different environments intelligently and automatically select the best scene and photo settings for you. “ASCN” can intelligently detect the following scenes: Icon Mode Name Portrait Mode 2. Hold the camera steadily and aim at the subject. The optimum scene mode will be selected automatically. Night Portrait 3. Press the shutter button half-way down to focus. Landscape Mode Backlit Portrait Night Landscape Mode 4.
Mode Name Description For landscapes, automatically adjusts the exposure and Landscape Mode reproduces vivid green and blue colors. 36 Portrait Mode Most suitable for capturing people with focus on their faces. Night Portrait When you take portraits at night or in low light conditions, ASCN will automatically adjusts the exposure for people and night scenes.
Custom Settings The user can store the frequently used shooting modes and parameters and switch to this mode for quick adjustment. Settings under mode (unset state or state after reset): 1. Turn the mode dial to select the mode, and enter the setup screen, as shown in the figure below: Select one capture mode to define CS . Go to setting CS mode Yes Or Rotating the mode dial to skip . Settings under non- mode: 1. Select any mode or scene mode to be stored. Landscape Save Exit 2.
5. Press the down arrow button select 「Custom Settings」and press the button or the right arrow button to enter the menu. 7. Turn the mode dial to switch to the custom settings ( ). 8. The photo settings you stored the last time are invoked. When the mode is used for the first time, there is no preset parameter stored in the mode. 6. Select「Yes」to save or「No」to cancel. Under the non mode, if you need to retain or modify the set parameters (except the parameters in ) in restart or all modes.
BASIC OPERATION Using the Zoom Function Your camera is equipped with two types of zoom functions: Optical Zoom and Digital Zoom. Toggle the Zoom Lever of the camera to zoom in or out of the subject while taking pictures. SD Zoom Indicator 1234 00:56:00 -0.3 EV Zoom Lever 400 ISO When the Optical Zoom reaches the threshold as Digital Zoom, release and turn the Zoom Lever to T to switch between the Optical Zoom and Digital Zoom.
Focus Setting In different photo shooting modes, you can select different focus methods. 1. Press the up arrow button ( ) to display the settings screen. Single-AF 2. Press the left/right to select the following 3 modes: Single-AF: The focus frame appears on the center of the LCD screen to focus on the subject. Multi-AF: The camera automatically focuses the subject in a wide area to find the focus point. 40 Object Tracking: Smart tracking of the object in motion under the focusing shooting. 3.
Macro Mode The Macro Setting is ideal for shooting small objects or close-up photos. This mode allows you to focus on subjects very close to the camera. 1. Press the left arrow button ( ) to enter the Macro Menu. Macro Off 2. Press the left/right to select the following 2 modes: • Macro Off Select this option to disable Macro. • Macro On Select this option to make focusing on the object closer to the lens (At the W side, the shooting distance should be more than 1.6 cm). 3.
Self-Timer Setting Use this function to take pictures at preset intervals. The camera can be set to shoot after 2 seconds, 10 seconds after pressing the shutter or when a smile is detected. 1. Press the down arrow button ( enter the self-timer menu. ) to • Self-Timer 10 sec A single picture is shot 10 seconds after the Shutter Button is pressed. • Self-Timer Smile Press the Shutter Button and a picture will be taken immediately after a smile is detected. 3.
Flash Mode The flash provides supplemental light for a scene. The flash is usually used when shooting against the light to highlight the object. It is also suitable for metering and shooting in darker scenes to improve the exposure. 1. Press the Flash Button flash. to pop up the 2 2. Press the right arrow button ( the Flash Settings Menu. 1 ) to enter ਘ⥺斿Ұ Force Off ܠ昘旅 3. Press the left/right to select the following 6 modes: • Force Off Flash is turned off.
White Balance Setting The white balance function allows adjustment of the color temperature for different light sources (Adjustable in Mode). Follow the steps below to set white balance of the camera: 1. Press Menu. button to enter White Balance AWB AWB 2. Press the left/right to select the following 8 modes: 44 • AWB • Daylight • Cloudy • Fluorescent • Fluorescent CWF • Incandescent • Manual WB (Fully press the shutter button to detect the white balance value) • Color Temp.
Continuous Shot Follow the steps below to configure the Continuous Shot Settings: 1. Press the to enter the Continuous Shot Menu. • 3 Shots • Time-Lapse Take pictures based on the preset interval (30sec/ 1min/ 5min/ 10min). 3. Press the button to confirm the settings and exit the menu. 4. Press the Shutter button to start continuous shooting. Single 2.
EV Setting The EV function menu of the camera includes functions, such as EV (exposure value) adjustment, ISO, Shutter Adjustment, Aperture Adjustment, etc. Using the appropriate function settings can improve your pictures. To select the best setting for optimum photos, follow these steps: 1. Press the screen. Exposure Compensation Set up to adjust the picture brightness.
ISO Shutter Adjustment The ISO function allows you to set the sensitivity of the camera's light sensor based on the brightness of the scene. To improve the camera's sensor performance in darker environments, a higher ISO value is required. A lower ISO value is needed when shooting in brighter conditions. For shutter speed, the camera may automatically set the aperture value corresponding to the manually set shutter speed so as to obtain a most suitable exposure value.
Aperture Adjustment You can adjust the aperture size value. Selecting a large aperture opening will emphasize the point of focus and show a blurry background and foreground. A small aperture opening will keep both the background and main object in clear focus. (Adjustable in Mode) F3.0 48 1/50 -1.0 EV 100 ISO Using Quick Recording In Shooting Mode, press the Recording Shortcut Button to begin recording video.
i Button Function Menu Mode: The Image Color Setting allows you to select different color effects. 1. Press the button to select the Image Color Setting Menu. 2. Press the left/right arrow button to select the Image Color Setting options.
PLAYBACK Viewing Photos and Videos To view photos and videos on LCD screen: 1. After pressing the button, the last photo or video clip taken will be displayed on the LCD screen. 2. Use the Left/Right navigation buttons to scroll through the photos or video clips stored in the internal memory or on the SD memory card. 3. To play a selected video clip, press the button to enter the Movie Playback Mode. An operation guide appears on the screen when playing back a video.
Thumbnail View When in Playback Mode, rotate the Zoom Lever counter clockwise to the position to display thumbnail images of the photos and videos on the screen. (the picture is displayed in horizontal position) W Zoom Out T Zoom In 1. Slide the Zoom Lever to switch between 3x3 and 4x4 thumbnails. 3. Press the arrow buttons to select a picture or video clip to view and press the button to restore it to the original size. If the indicator appears on the LCD, then a movie file is currently being displayed.
Using Zoom Playback (for still pictures only) When playing back photos, you can also use the Zoom Slider to zoom in on the photos 2 to 8 times. 1. Press the button to switch to Playback Mode. 2. Press the left/right button to select a picture to be zoomed in. 3. Rotate the Zoom Lever clockwise to ( ) to zoom in. 4. The bottom right corner of the screen will display the number of times and area of the photo zooming operation. x2 5.
Photos and Video Deletion In Playback Mode, press the down arrow button ( ) to delete your photos and videos. To delete photos or videos: 1. Press the button to switch to Playback Mode. 2. Press the left/right arrow button to select the photos and videos to be deleted. 3. Press the down arrow button ( ) and the deletion screen is displayed. 4. Press the up/down arrow button to select 「Delete One」or「Exit」and press the button to confirm. Erased photos/video clips cannot be recovered.
Slideshow You can use this setting to view the pictures taken as a slideshow. 1. Press button to enter playback screen. 2. Press button to enter the slide option (except for vedio file). 3. Press the left/right button to select slideshow playing or 「Cancel」 to return to the playback screen. 54 4. Press the setting. button to confirm the Pictures scroll automatically during a slide show. Slide playing function supports movie playing.
USING THE MENUS Photo Setup Menu Mode: 1. In Photo Shooting Mode, press the button to enter the Photo Shooting Menu. Expo Metering (Exposure Metering) Use this setting to select the "target" size of the camera's field of view to be metered. 2. Press the up/down arrow button to select the Photo Shooting Menu to be set. 3. Press the left/right arrow button to select the Photo Shooting Menu to be set and press the button to confirm.
Image Size OIS (Optical Image Stabilization) The size setting refers to the image resolution in pixels. A higher image resolution allows you to print that image in larger sizes without degrading the image quality. This mode can help reduce photo blur caused by unintentional hand shake, or low light. The bigger the number of recorded pixels is, the better the image quality becomes. As the number of recorded pixels lessen, you will be able to record more images on a memory card.
Cont. AF (Continuous Auto-Focus) HDR (High Dynamic Range) Enable Continuous AF to be able to continuously focus automatically when taking pictures. Use this setting to control wide dynamic image range when taking static pictures. Photos with extreme contrast of bright and dark areas will still maintain distinguishable detail and depth.
Face Beautifier Scene Select an effect of the Face Beautifier Mode. Select a scene mode under SCN mode.
• Shooting menu in the Shooting Mode (O: Available X: Not Available) Shooting Modes Options 16M о о о о о о о о о о о о х о о о о о х о о о о о х о о о о х х х х х х о 59
Photo Shooting Setting Menu Mode: 1. Press the button in Photo Shooting Mode and press the up/down button to select . 5. Press the up/down arrow buttons to select an option and press the button to confirm. Quality The Quality Setting can be used to adjust the image compression ratio. 2. Press the button to enter the menu. 3. Press up/down arrow button to select , and press the button or right arrow button to enter the menu. 4.
AF-Assist Beam ( Auto-Focus Assist Beam) In a darker environment, AF Assist Beam can be turned on for better focus. Date Imprint Include a Date/Time stamp on the photo image. Digital Zoom Turn the Digital Zoom on or off.
Quick Review Custom Settings This option allows quick review of the photos immediately after they are taken. Each photo is displayed on the LCD screen for the selected time. Custom Settings stores the current photo shooting mode and its parameters. The stored mode and parameters are directly invoked in Custom Settings mode.
Face Detection Detects and focuses on faces to make all faces as clear as possible in photo mode.
Movie Menu Mode: Expo Metering (Exposure Metering) 1. Turn the mode dial, select the mode and press the button to enter the Movie Menu. Use this setting to select the "target" size of the camera's field of view to be metered. Expo Metering: AiAE Expo Metering: AiAE 2. Press the up/down arrow button to select the Movie Menu to be set. 3. Press the left/right arrow button to select the Movie Menu to be set and press the button to confirm.
AIAE (Artificial Intelligence AE): Automatically selects the central and peripheral metering, to calculate the reasonable value of metering by weighting. Video Quality Set the image resolution used during video recording. * The longest recording time is 29 minutes at one time. When recording in higher pixel resolutions for extended periods of time, this can cause the camera to generate heat. This is not a camera malfunction.
Movie Setting Menu Mode: 1. Turn the Mode Dial and select to enter the video recording screen. 2. Press the button, press the up/ down arrow button to select , and press the button to enter the menu. Press SET To Enter Menu 3. Press up/down arrow button to select , and press the button or right arrow button to enter the menu. 66 4. Select the items to be set and press the button or the right arrow button to enter the menu. 5.
Digital Zoom Custom Settings Turn the Digital Zoom on or off. Custom Settings stores the current movie shooting mode and its parameters. The stored mode and parameters are directly invoked in Custom Settings mode.
Playback Menu Mode: 1. Press the menu. button to display the playback screen and press button to enter the 2. Press the up/down arrow button to select the playback to be set and press to enter. 3. Press the left/right arrow buttons to select an option and press the confirm. Photo Video Press SET To Confirm Press SET To Confirm Normal Mode Normal Mode Refer to the following pages for more details about each setting.
Playback HDR (High Dynamic Range) 1. Press the button, select the settings, and press the button to display the settings screen. With the HDR function, pictures that are overexposed may be corrected to optimize the highlights and lowlights captured to more accurately represent the actual scene. 2. Press the left/right button to select from the following 2 functions: Normal Mode: Display all images. Date Mode: Arranged by date. 1.
Red-Eye Reduction 4. After using the HDR function, the image will be saved as a new file and the original file is still stored in the memory. 1. In Playback Mode, press the left /right arrow button to select the photos to be edited. 2. Press the button, select the settings, and press the button to display the settings screen. 3. Press the left/right button to select Touch-up or「Cancel」to return to the playback Screen.
Rotate 4. Press the setting. button to confirm the The beauty feature mentioned here is the individual beautification for three effects. Beauty Mode allows you to select from one, two, or all three effects combined. You can use this setting to change the orientation of the picture. 1. In Playback Mode, press the left /right arrow button to select the photos to be edited. 2. Press the button, select the settings, and press the button to display the settings screen. 3.
Resize 4. Press the setting. button to confirm the This setting allows you to resize a picture to a particular resolution and saves it as a new picture. Videos and panoramic pictures cannot be rotated. 1. In Playback Mode, press the left /right arrow button to select the photos to be edited. The rotated picture file will replace the original photo. 2. Press the button, select the settings and press the button to display the settings screen. 3.
i Button Playback Function This setting allows you to change the picture color effect. The file is saved as a new photo and stored in memory together with the original photo. 1. In Playback Mode, press the left /right arrow button to select the photos to be edited. 2. Press the Button to select the Image Color Setting Menu. 3. Press the left/right button to select the corresponding menu or 「Cancel」 to return to the Playback Screen.
Playback Setting Menu Mode: 1. Press the button to show the playback screen, press the button, and press the up/down button to select . 2. Press the button to enter the menu. 3. Press up/down arrow button to select , and press the button or right arrow button to enter the menu. 74 4. Press the up/down arrow button to select the item to be set and press the button or right arrow button to enter the menu. 5. Press the up/down arrow buttons to select an option and press the button to confirm.
Protect To prevent any pictures or videos from being accidentally erased, use this setting to lock one or all of the files. There are 4 sub menus available: • One: Lock the selected photo or video if they are unprotected; unlock the selected photo or video if they are protected. • Date Folder: Protect all photos in the Date Folder. To lock or unlock the photo and video files: 1. Press the up/down arrow button to select「Protect」and press the button or right arrow button to enter the sub-menu.
Delete You can delete one or all photo/video files. There are 3 sub menus available: • One: Delete one photo or video. • Date Folder: Delete all photos in the Date Folder. • All: Delete all photos or videos. 3. Press the up/down arrow buttons to select an option and press the button to confirm. To delete photo or video files: 1. Press the up/down arrow button to select 「Delete」and press the button or right arrow button to enter the submenu. 2.
DPOF (Digital Print Order Format) Trim The DPOF feature allows you to compile and select a group of pictures that you would like to print and will save your selection on the memory card so that you can use the SD memory card to print without having to individually specify the photos you want to print. The Trim Setting allows you to crop photos and save them as new pictures. 1. Press the up/down arrow button to select「Trim」and press the button or right arrow button to enter the menu. 2.
Setup Menu Mode : 1. Press the button in any mode and press the up/down button to select . 2. Press the button to enter the menu. 3. Press up/down arrow button to select , and press the button or right arrow button to enter the menu. 4. Press the up/down arrow button to select the item to be set and press the button or right arrow button to enter the menu. 5. Press the up/down arrow buttons to select an option and press the button to confirm.
Sound Settings Power Saver To change this setting: This setting allows you to save power and get the maximum possible running time for your camera's batteries. Follow the steps below to turn the LCD screen and camera off automatically after a consecutive period of inactivity. 1. Select「Power Saver」in the basic settings menu. Press the button or right arrow button to enter the menu. 2. Press the up/down arrow button to select an option. 1. Select「Sound Settings」in the basic settings menu.
Language Date/Time Refer to the “Reset your language” section on page 20. Refer to the “Reset Date/Time” section on page 21. Zone The Zone setting is a useful function for your overseas trips. This feature enables you to display the local time on the LCD screen while you are abroad. 1. Select「World Time」in the basic settings menu. The World Time screen appears. 2. Press the up/down to select the departure place ( ) and destination ( ) fields. 3.
File / Software Format Memory Please note: formatting enables you to delete all contents in the memory card and built-in memory, including protected photo and movie files. To use this setting: 1. Press the button, press the up/down arrow button to select and press the button to enter the menu. 2. Press up/down arrow button to select and press the button or right arrow button to enter the menu. 3. Press the up/down arrow button to select 「Format」and press the button or right arrow button to enter the menu.
Copy to Card File Numbering Use this setting to copy the files stored in the internal memory to an SD memory card. 1. Press the button, press the up/down arrow button to select and press the button to enter the menu. 2. Press up/down arrow button to select and press the button or right arrow button to enter the menu. After you take a picture or video clip, the camera will save it with a sequential number. You can use this to reset the file numbering to 1. 1.
Reset FW Version Use this setting to restore the camera to its original default settings. Use this setting to view the current camera firmware version. 1. Press the button, press the up/down arrow button to select and press the button to enter the menu. 1. Press the button, press the up/down arrow button to select and press the button to enter the menu. 2. Press up/down arrow button to select and press the button or right arrow button to enter the menu. 2.
CONNECTIONS Connecting to a Computer You can use a USB cable to connect the camera and copy (transmit) photos to a computer, printer or other device. Setting the USB Mode The camera’s USB port can be set to connect with either a computer or a printer. The following steps will allow you to ensure that the camera is correctly configured to connect with a PC. 1. Press the button, press the up/down arrow button to select and press the button to enter the menu. 2.
Transferring files to your computer The computer will automatically detect the camera as a removable drive. Double-click the My Computer icon on the desktop to locate the removable drive and to copy folders and files in the drive to a directory on your PC as you would copy any typical folder or file. Follow the steps below to connect the camera to a computer. 1. Make sure the computer is turned on. 2. Connect one end of the supplied USB cable to the USB OUT port on your camera. 3.
Video System Use this feature to switch the video system from either NTSC or PAL. 1. Press the button, press the up/down arrow button to select and press the button to enter the menu. 2. Press up/down arrow button to select and press the button or right arrow button to enter the menu. 3. Press the up/down arrow button to select 「TV-System」and press the button or right arrow button to enter the menu. 4. Press the up/down arrow buttons to select「NTSC」or「PAL」and press the button to confirm.
Set Eye-Fi SD Card Connection Mode This camera supports the wireless connection for Eye-Fi memory card, Enable Eye-Fi connection by following below steps. 1. Press the button, press the up/down arrow button to select and press the button to enter the menu. 2. Press up/down arrow button to select and press the button or right arrow button to enter the menu. 3. Press the up/down arrow button to select 「Eye-Fi」and press the button or right arrow button to enter the menu.
Supported HDMI Connections HDMI (High Definition Multimedia Interface), is a fully digital audio/video transmission interface, through which uncompressed audio and video signals are transmitted. Direct transmission of digital video signals to your TV reduces conversion loss and improves image quality. Connecting HDMI-Ready TV 1. Use the cable with high resolution output terminal (which should be purchased separately) to connect the camera to the television which meets HDMI standard. 2.
Connecting to a PICTBRIDGE™ Compatible Printer PICTBRIDGE™ technology allows printing of the photos saved in the memory card by the printer. To find out if a printer is PICTBRIDGE™ compatible, simply look for the PICTBRIDGE™ logo on the packaging or check the owner's manual for specifications. With the PICTBRIDGE™ function on your camera, you can print the captured photos directly to a PICTBRIDGE™ compatible printer using the supplied USB cable, without the need for a PC. 3.
Connecting to your Printer 1. Make sure the printer is turned on. 2. Connect one end of the supplied USB cable to the USB port on your camera. 3. Connect the other end of the cable to the USB port on the printer. If the camera is not connected to a PICTBRIDGE™ compatible printer, the following error message will appear on the LCD screen.
Using the PICTBRIDGE™ Menu After setting the USB mode to Printer, the PICTBRIDGE™ Menu will appear. Print (with Date) If you have set the date and time on your camera, the date and time will be recorded and saved with each photo you take. 1. In the PICTBRIDGE™ menu, select「Print (with Date)」and the screen as shown below appears. Press the up/down arrow button to select a menu item and press the button or right arrow button to enter the item.
Print (without Date) 3. Press the up/down arrow button to select the number of copies for the currently displayed photo. 4. Press the button and the following screen will appear. 5. Select「Yes」and press the button to confirm; select「Cancel」to cancel printing. Use this setting to print the photos without dates on them. 1. In the PICTBRIDGE™ menu, select「Print (without Date)」and the screen as shown below appears. 2. Press the left/right arrow button to select a photo to be printed. 3.
Print Index You can print all photos in the camera via this function. 1. In the PICTBRIDGE™ menu, select「Print Index」and the screen as shown below appears. 5. Select「Yes」and press the button to confirm; select「Cancel」to cancel printing. 2. Select「Yes」and press the button to confirm; select「Cancel」to cancel printing.
Print DPOF Images Exit To use DPOF printing, you must select your photos for printing using the DPOF settings beforehand. See “DPOF” section on page 77. Select「Exit」to exit the PICTBRIDGE™ menu. At this time, the message「Remove USB Cable!」appears on the screen. 1. In the PICTBRIDGE™ menu, select「Print DPOF Images」and the screen as shown below appears. Disconnect the USB cable from the camera and printer. 2. Select「Yes」and press the button to confirm; select「Cancel」to cancel printing.
APPENDICES Specifications Design and specifications are subject to change without notice. Effective Image Sensor Pixels 16.15 Megapixels Total Image Sensor Pixels 16.44 Megapixels [1/2.3"CCD] Lens Focal Length 4.3mm (Wide) - 180.6mm (Tele) 35mm film equivalent 24mm (Wide) - 1008mm (Tele) F number F3.0 (Wide) - F6.8 (Tele) Lens Construction 11 groups 15 elements Optical Zoom 42x Focusing Range Normal: ( Wide) 50cm ~ ∞, (Tele) 200cm ~ ∞; Macro: 1.
(4:3) Number of Recording Pixels Still Image Movie 96 (16:9) 12MP: 4608×2592 2MP: 1920×1080 1280×720 (30fps), 1280×720 (15fps), 640×480 (30fps) Image Compression Best, Fine, Normal DCF, DPOF (Ver1.1) Support Yes File Format (3:2) 16MP: 4608×3456 14MP: 4608×3072 10MP: 3648×2736 5MP: 2592×1944 3MP: 2048×1536 0.3MP: 640×480 Still Image Exif 2.3 (JPEG) Movie MOV [Image: H.
HDR Yes Video Panorama Up to 180° (Horizontal) LCD Display 3.
Flash Flash Method Pop-up (Manual) Flash Modes Force Off, Flash Auto, Force Flash, Slow Sync., Slow Sync. + Red-Eye, Red-Eye Reduction Shooting Range (Wide) Approx. 0.5m ~ 7.5m (ISO 800) (Tele) Approx. 1.2m ~ 3.7m (ISO 800) Internal Memory: Approx.
Prompts and Warning Messages Message Description Action Warning! Battery exhausted. The camera battery is used up. It is a warning indicating that the camera is going to shut down. Replace with new batteries. The camera will shut down in 2 seconds. Lens obstruction, Re-start Camera. The lens is jammed or some foreign object is preventing the lens from functioning properly. Turn off the camera and restart it to reset the lens. Built-in memory error! An error occurred in internal memory.
Message 100 Description Action Remove USB Cable! Indicates that you can disconnect the USB cable. The message disappears after you disconnect the USB cable. Connection Failed! Failure to connect to your PC, printer, TV (with HDMI). Remove USB cable and retry connection Write Protect ! The SD card is locked. Remove SD card and switch the lever on the side of card to UNLOCK. The message will disappear after 2 seconds. Card Full ! Indicates that the SD card is full.
Message Description Action Card is not formatted. When an error occurs in the SD card, the message "Not Formatted" appears. Format the SD card. WARNING: Formatting the SD card will erase all data on the card. Copy the data from the SD card to another storage, such as a computer. Otherwise, all data will be erased after the format. The message will disappear after 2 seconds.
Message 102 Description Action Exceeded maximum folder number. Prompt message when the archives or file folders in memory card have reached the maximum (9999 for archives, 999 for file folder). Copy the data to your PC, format the memory card using the camera. Too many pictures for quick processing. During the playback by date, the images exceed specifications so that it is not possible to play by date. The message disappears after 2 seconds and the camera returns to the normal playback mode.
Troubleshooting Problem Possible causes Camera does not turn on The battery has been depleted. The battery is not inserted correctly. Recharge the battery. Camera turns off suddenly during operation The batteries have been depleted. Recharge the battery. The picture is blurry Camera shakes while taking a picture. Turn on OIS feature. Please use tripod for high magnification (above 15X) optical zoom. Images and video files cannot be saved The SD memory card is full. The memory card is locked.
Problem 104 Possible Causes Solution Saving data to memory card is slow Using a memory card below Class 4 may result in slower recording times. Use an memory card with write Class higher than 4 to improve performance. Cannot write to the memory card The SD memory card has been locked. Release the write lock of the memory card or replace with another card.
© 2018 JK Imaging Ltd. All Rights Reserved. The Kodak trademark, logo and trade dress are used under license from Eastman Kodak Company. All other logos, products or company names that are referred to in this document are trade names, trademarks or registered trademarks of their respective owners and holders. The owners and holders are not affiliated with JK Imaging Ltd., our products or our website. JK Imaging Ltd., 17239 So.
