Operating VRS
VRS User’s Manual
51
Using the Skew Tab
The Skew tab allows you to control auto deskew, auto crop, edge cleanup settings and
to perform manual skew adjustment on an image. Images can be rotated up to 360
degrees clockwise or counter-clockwise using the movable angle control arm, or they
can be automatically deskewed by selecting the Deskew check box. If necessary, you
can fine-tune the rotation with the Fine Angle Adjustment slider, or enter an amount
in the Angle box. When the Angle box lists 0.00, the image is displayed as it was
originally scanned.

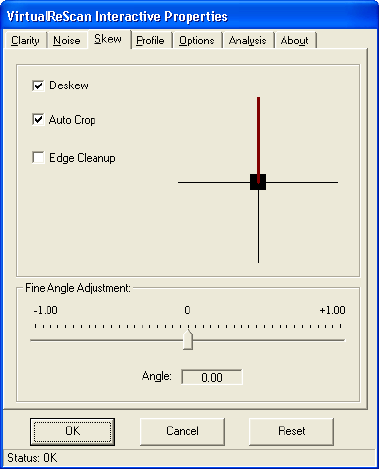

Figure 2-39. Skew Tab
Changes made to this tab are handled according to circumstances under which the
VRS Interactive Properties dialog box launched. If the dialog box opened as the result
of an exception, changes to Deskew, Auto Crop, or Edge Cleanup apply to the
exception image only. If the dialog box opened because you selected Preview or First
Page mode, Deskew, Auto Crop, and Edge Cleanup settings apply to the exception
image as well as subsequent scans.
If the dialog box opened as the result of an exception, changes to Manual Skew
Adjustment or Fine Angle Adjustment apply to the exception image only. Changes
made when you select Preview are discarded when the OK or Cancel buttons are
