Operating VRS
VRS User’s Manual
71
Picking Rectangle Tab
The Picking Rectangle tab allows you to select only the portion of an image to be
scanned or processed, effectively cropping off unwanted data. This feature is only
available for the Böwe Bell + Howell Spectrum series, the Fujitsu fi-4990C, and the
Fujitsu fi 4860C.
The Picking Rectangle tab is divided into two groups: Front Side and Back Side. If a
scanner supports duplex scanning, you may select picking rectangle settings for the
front or the back side, or both the front and the back side. For simplex scanners, only
the Front Side setting will be available: the Back Side options will be disabled (as is the
case with the Böwe Bell + Howell 8080 SB and Böwe Bell + Howell 8080 SC).

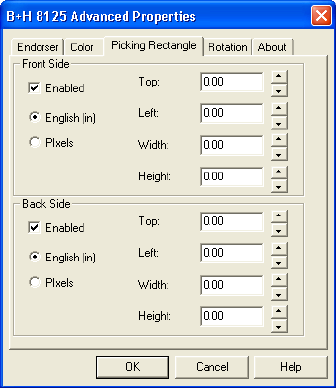

Figure 2-50. Advanced Properties Dialog Box – Picking Rectangle Tab
The Picking Rectangle tab allows you to enable and set the following:
• Unit of measurement to be used via the English or Pixels options
• Placement of the picking rectangle on the document--more specifically, the
distance from the top and left (offset) of the document edge using the up and
down arrows or by entering the distance into the Top and Left text boxes
• Width and Height of the picking rectangle using the up and down arrows or
by entering the picking rectangle dimensions into the appropriate text boxes
