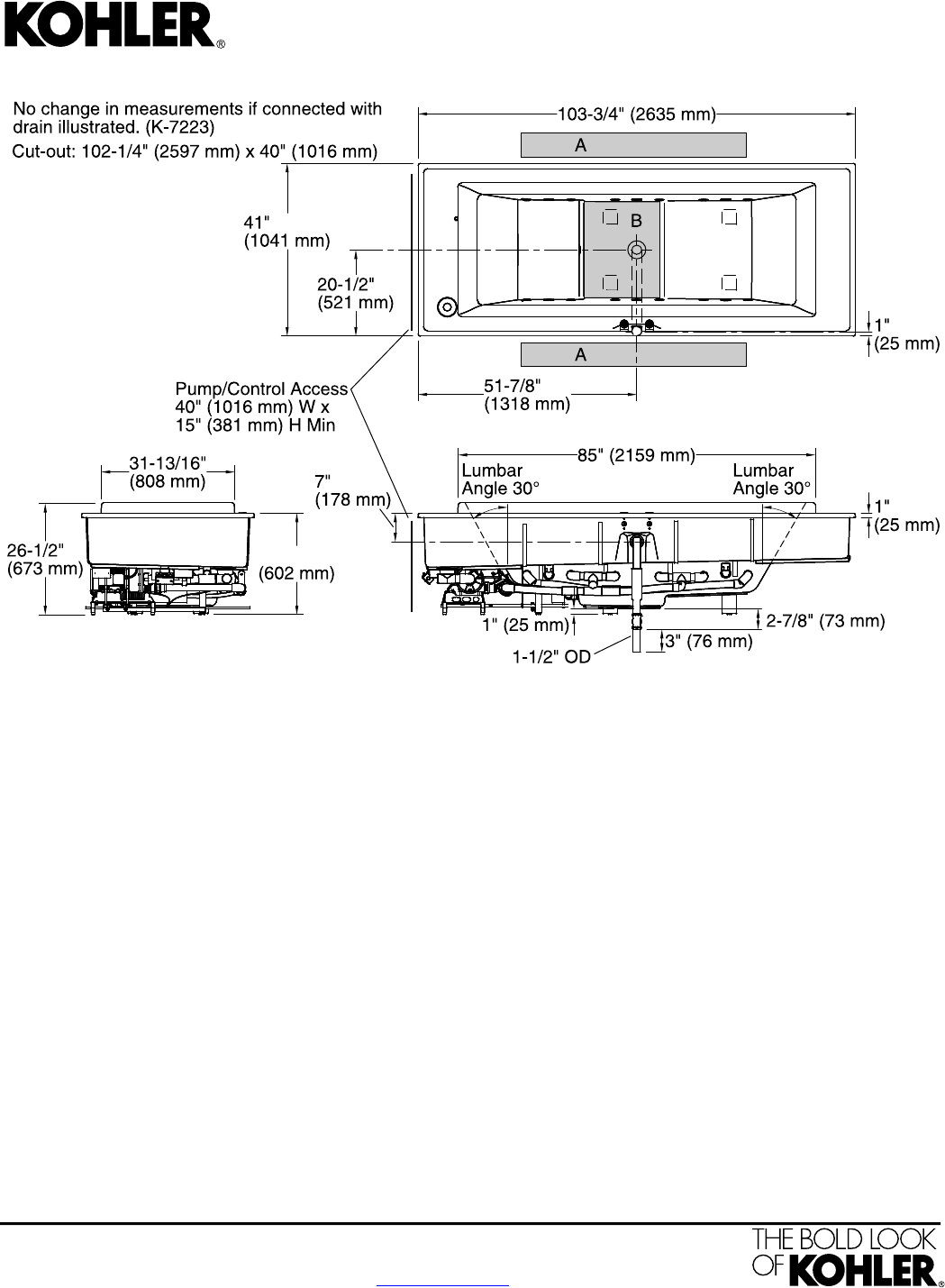

Dimensions Guide

23-11/16"
Notes
Required Electrical Service
Measure your actual product for rough-in details.
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
240 V, 20 A, 50/60 HzPump:
240 V, 20 A, 50/60 HzHeater:
Technical Information
Recommended spouts for area A: K-T954-4,
K-T6906, K-18486-4, K-922 and K-924, or K-923
and K-924.
All product dimensions are nominal.
Drop-inInstallation:
CenterDrain location:
Recommended spouts for area B: K-922 or
K-923.
60" x 25-1/2" (1524 mm x 648 mm)Basin area, bottom:
84" x 31-1/2" (2134 mm x 800 mm)Basin area, top:
Unit must be filled through the bathing well.
375 lbs (170.1 kg)Weight:
Consult local and national codes for minimum air
gap requirements when installing a spout on the
faucet deck.
66 lbs/ft² (322.2 kg/m²)Minimum floor load:
24-5/8" (625 mm)Water depth:
185 gal (700.3 L)Water capacity:
Drop-in, 102-1/4" x 40" (2597 mm x
1016 mm)
Cutout:
Pump: 240 V, 4 A, 50/60 Hz
Heater: 240 V, 15 A, 50/60 Hz, 4000 W
Electrical component
rating:
VariablePump speed:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-31-2017 01:28
sok
®
104" Effervescence Bath
K-1166-RE
