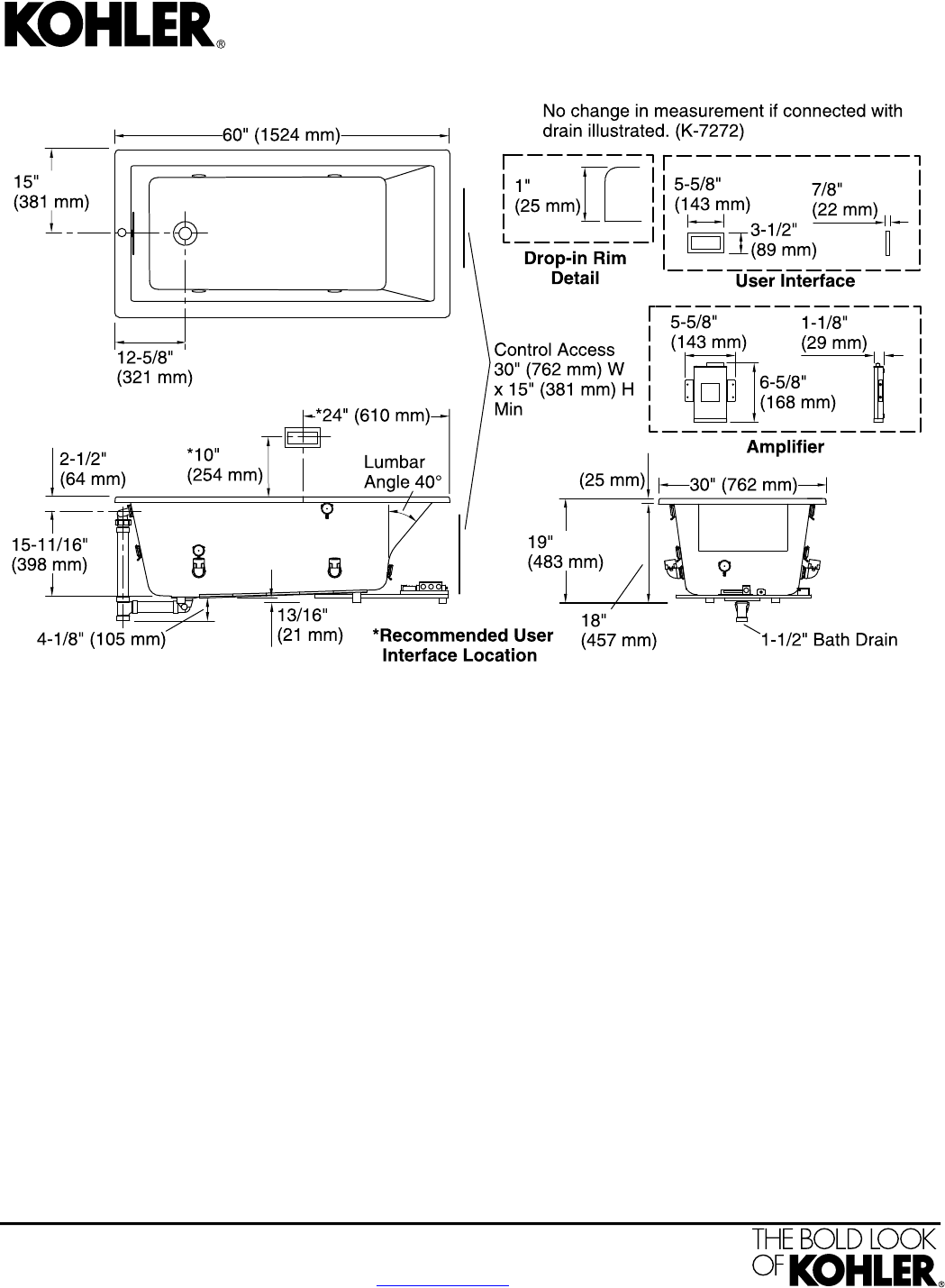

Dimensions Guide

1"
Notes
Required Electrical Service
Measure your actual product for rough-in details.
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD).
Install this product according to the installation
instructions.
120 V, 15 A, 50/60 HzAmplifier, Heated
Surface:
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Technical Information
All product dimensions are nominal.
Provide one grounded electrical outlet within 24"
(610 mm) of each component.
Drop-in, Under-mount, Drop-in,
Under-mount
Installation:
Control amplifier fits 16" (406 mm) center studs.
25' (7.6 m) cables are included.
EndDrain location:
42-3/8" x 20" (1076 mm x 508 mm)Basin area, bottom:
ADA compliant when installed to the specific
requirements of these regulations.
54-3/8" x 24-5/16" (1381 mm x 618 mm)Basin area, top:
80 lbs (36.3 kg)Weight:
50 lbs/ft² (244.1 kg/m²)Minimum floor load:
15-1/16" (383 mm)Water depth:
59.8 gal (226.4 L)Water capacity:
Drop-in, 59-1/2" x 28-1/2" (1511 mm x
724 mm)
Cutout:
Amplifier: 120 V, 1.1 A, 50/60 Hz
Heated Surface: 120 V, 0.5 A, 50/60 Hz,
65 W
Electrical component
rating:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-3-2017 01:53
Underscore
®
Rectangle
5' VibrAcoustic
®
Bath
K-1167-VBCW
