How To Guide

Product Information
Applicable product:
Bidet faucet K-12286-4
Optional accessories:
Plug button set K-12003
Installation Notes
Install this product according to the installation guide.
5-1/2" (14 cm)
1-5/8"
(4.1 cm)
D.
2-1/2"
(6.4 cm)D.
1-1/8" D.
9/16" D.
2-13/16"
(7.1 cm)
3-1/2"
(8.9 cm)
7-3/4"
(19.7 cm)
2-1/4"
(5.7 cm)D.
4" (10.2 cm)
1-1/4" OD
2-5/8" (6.7 cm)
5/8"
(1.6 cm)D.
2-1/8"
(5.4 cm)
6-1/8"
(15.6 cm)
2-1/4"
(5.7 cm)

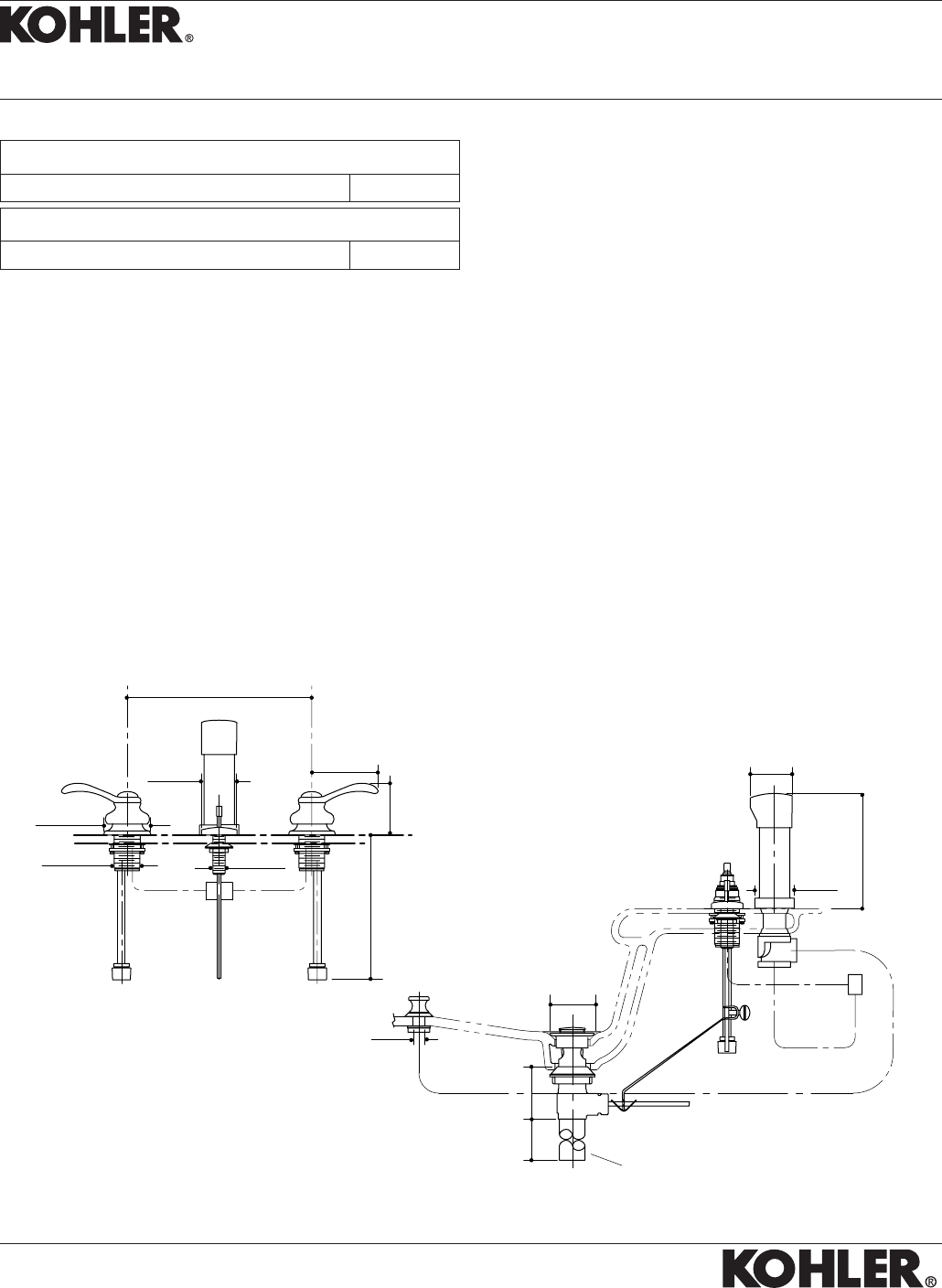

Roughing-In
K-12286-4
FAIRFAX
®
BIDET FAUCET
FAIRFAX
®
BIDET FAUCET
116820-1-
AC
