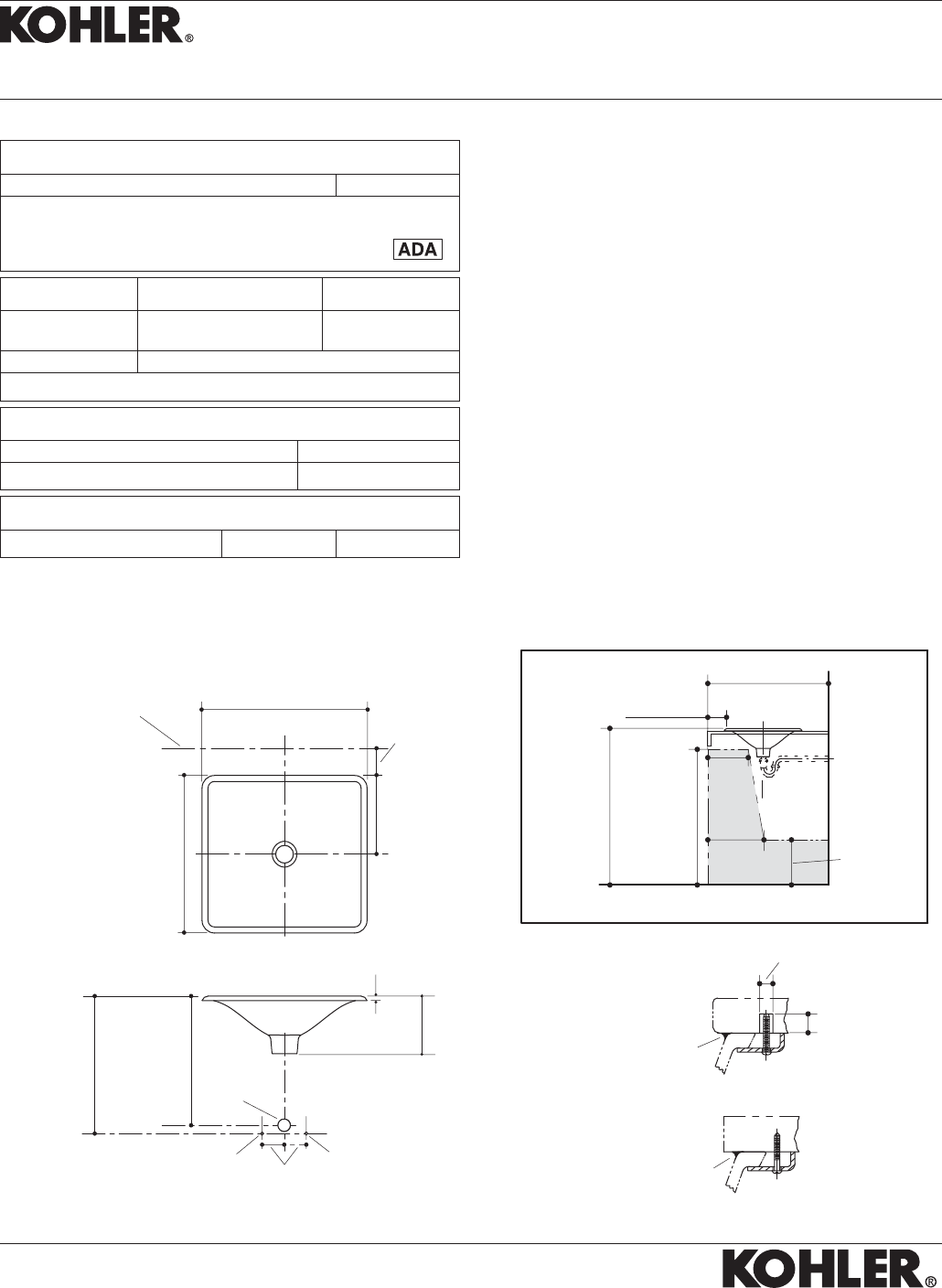

How To Guide

Product Information
Applicable product:
Self-rimming/undercounter lavatory K-2827
Lavatory is ADA compliant when installed according to
the ADA guidelines.
Fixture*: Basin area Water depth
Lavatory 15-1/4″ (38.7 cm) x
14-1/2″ (36.8 cm)
3-3/4″
(9.5 cm)
Drain hole 1-3/4″ (4.4 cm) D.
* Approximate measurements for comparison only.
Included components:
Basin clamp assembly 52047
Cut-out template 1053507-7
Accessories/hardware:
P-trap K-9018 Recommended
Installation Notes
Install this product according to the installation guide.
Supplied basin clamp assemblies require 1″ (2.5 cm)
minimum countertop thickness. Installer must supply anchors
for thinner countertops.
NOTICE: The countertop manufacturer or cutter must use
the cut-out template provided with the product, or a current
one provided by the Kohler Co. (Call 1-800-4-KOHLER.)
Kohler Co. is not responsible for cut-out errors when the
incorrect cut-out template is used.
Fixture dimensions are nominal and conform to tolerances in
ASME Standard A112.19.1.
7/16" (1.1 cm)
5-3/4" (14.6 cm)
15-5/8"
(39.7 cm)
7-13/16"
(19.8 cm)
2-1/2"
(6.4 cm)
1-1/4"
OD
3/8" Cold
3/8" Hot
4"
(10.2 cm)
16-3/8" (41.6 cm)
34"
(86.4 cm)
3-1/4"
(8.3 cm)
27"
(68.6 cm)
Min
8"
(20.3 cm)
Min
9"
(22.9 cm)
Min
11"
(27.9 cm)
Recommended ADA Installation
24" (61 cm)
Sealant
Marble Installation
Wood Installation
Sealant
3/8" (1 cm) D.
5/8" (1.6 cm)
12-7/8"
(32.7 cm)
14"
(35.6 cm)
C
L of Fitting
Roughing-In
K-2827
IRON/TONES
TM
SELF-RIMMING/UNDERCOUNTER LAVATORY
IRON/TONESTM SELF-RIMMING/UNDERCOUNTER LAVATORY
1052994-1-
C
