Specification Sheet

Recommended Faucet Area
Notes
Required Electrical Service

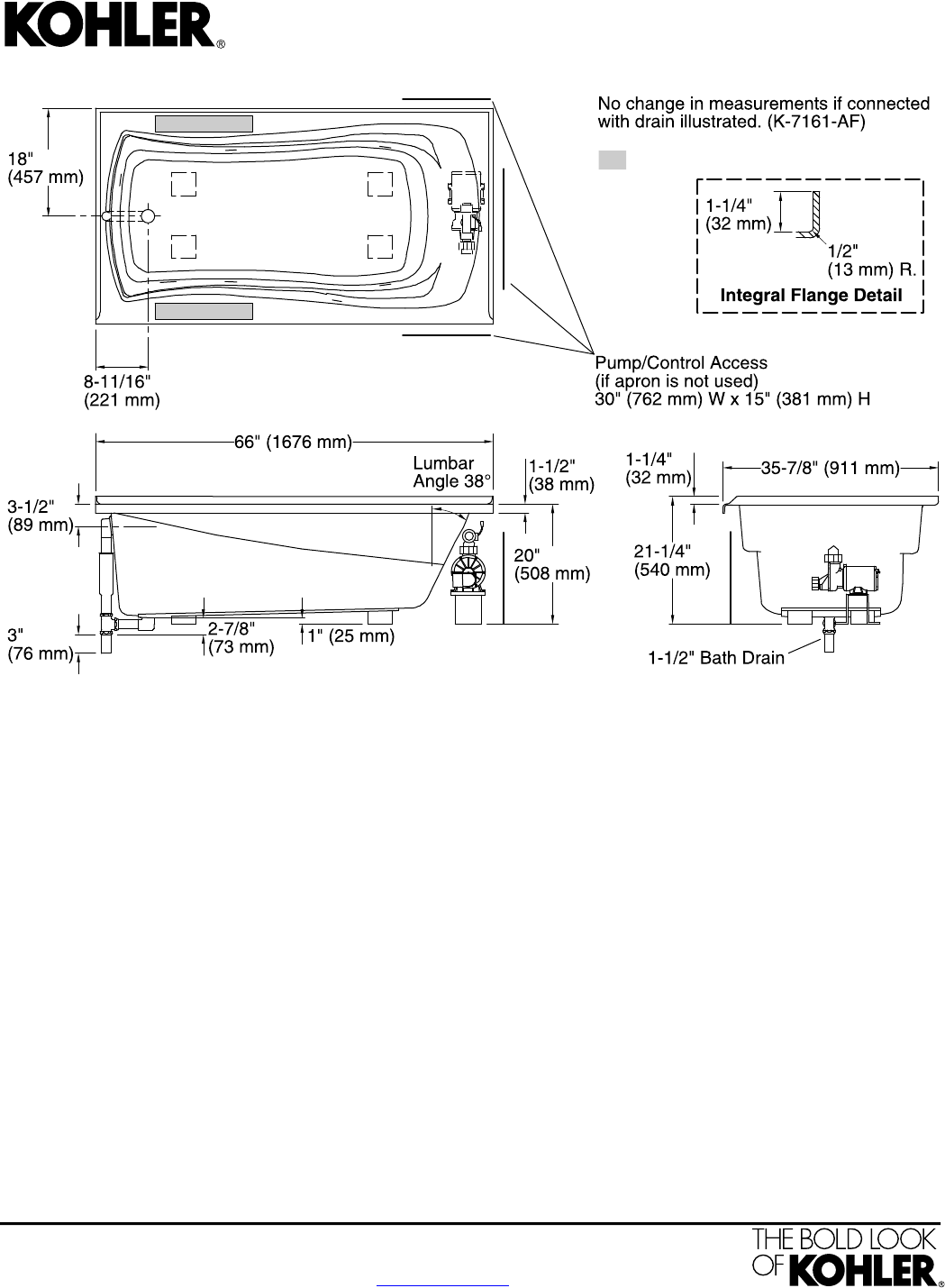

Measure your actual product for rough-in details.
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
120 V, 15 A, 60 HzPump, Heated
Surface:
Technical Information
Provide one grounded electrical outlet within 24"
(610 mm) of each component.
All product dimensions are nominal.
3-Wall AlcoveInstallation:
If installing a rim-mount faucet, make sure there
is no interference with drain overflow or whirlpool
LeftDrain location:
48" x 24" (1219 mm x 610 mm)Basin area, bottom:
system before drilling any holes. Consult local
59" x 30" (1499 mm x 762 mm)Basin area, top:
and national codes for minimum air gap
116 lbs (52.6 kg)Weight:
requirements if installing a spout on the faucet
deck.
48 lbs/ft² (234.4 kg/m²)Minimum floor load:
14" (356 mm)Water depth:
67 gal (253.6 L)Water capacity:
Pump: 120 V, 7.5 A, 60 Hz
Heated Surface: 120 V, 1.1 A, 60 Hz, 65
W
Electrical component
rating:
SinglePump speed:
1-15/16" (49 mm)Minimum flat for door:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-7-2017 05:18
Mariposa
®
5.5' Whirlpool Bath
K-1224-LW
