Specification

Technical Information
Fixture:* basin area top area weight
Bathing
well
50″ (127 cm)
x24″(61 cm)
65″ (165.1 cm) x
27″ (68.6 cm)
115 lbs.
(52.2 kg)
water depth capacity
To
overflow
14″ (35.6 cm) 72 gal. (272.5 L)
* Approximate measurements for comparison only.
Pump: HP V Hz A
1-speed 1-1/4 120 60 7.5
Heater: kw V Hz A
1.5 120 60 12.5
No change in measurements if connected with drain
illustrated. (K-7166–AF or K-7166M-AF)
Drop-in cut-out 70″ (177.8 cm) x 34″ (86.4 cm)
Minimum access panel:
Pump/heater
control
20″ (50.8 cm) W x
15″ (38.1 cm) H
required
Faucet area recommended
Required Electrical Services (2)
Two dedicated circuits required, each protected with
Class A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 VAC, 15 A, 60 Hz
Heater 120 VAC, 15 A, 60 Hz
Locate the outlet behind the whirlpool and within 24″ (61
cm) of the pump and heater.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
80 lbs./square foot (390 kg/square meter) loading.
The apron must be installed before the finished floor and wall
materials are installed.
If installing a rim-mount faucet, make sure there is no
interference with drain overflow and circulating system before
drilling any holes. Consult local and national codes for
minimum air gap requirements if installing a spout on the
faucet deck.
72" (182.9 cm)
1" (2.5 cm)
3" (7.6 cm)
1-1/2" O.D.
18"
(45.7 cm)
20"
(50.8 cm)
36" (91.4 cm)
Integral
Flange Detail
Drop-In
Rim Detail
1-1/2"
(3.8 cm)
1-1/4"
(3.2 cm)
1/2" R.
(1.3 cm)
Pump/Control
Access (If Apron
Is Not Used)
Pump/Control
Access (If Apron
Is Not Used)
1-13/16"
(4.6 cm)
1-1/4"
(3.2 cm)
3-1/2"
(8.9 cm)
2-7/8"
(7.3 cm)
18-1/2"
(47 cm)
10-1/4"
(26 cm)

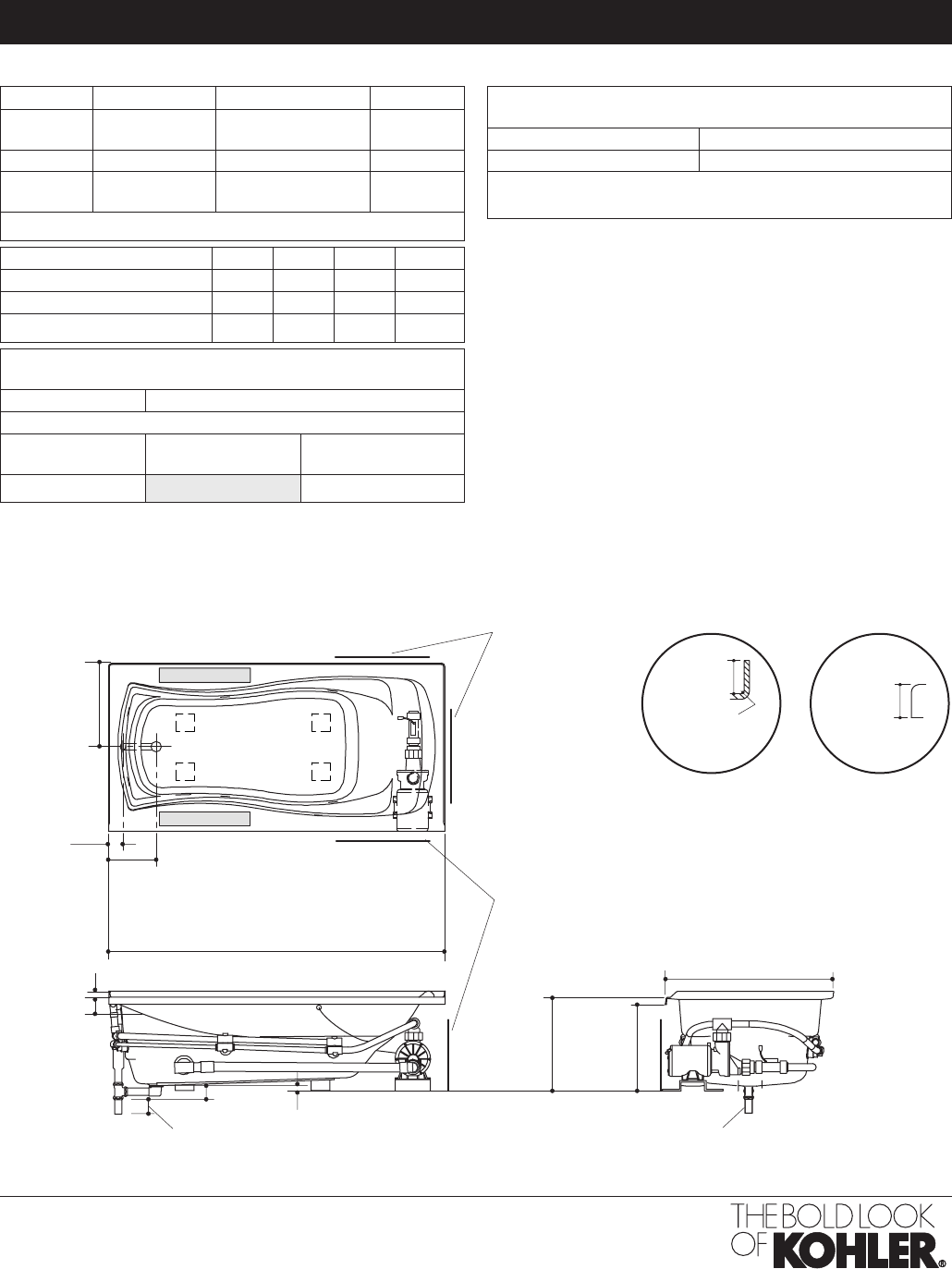

Product Diagram
MARIPOSA™
MARIPOSA™ BATH WHIRLPOOL
Page2of2
1012669-4-
B
