Specification Sheet

Lumbar
Notes
Technical Information

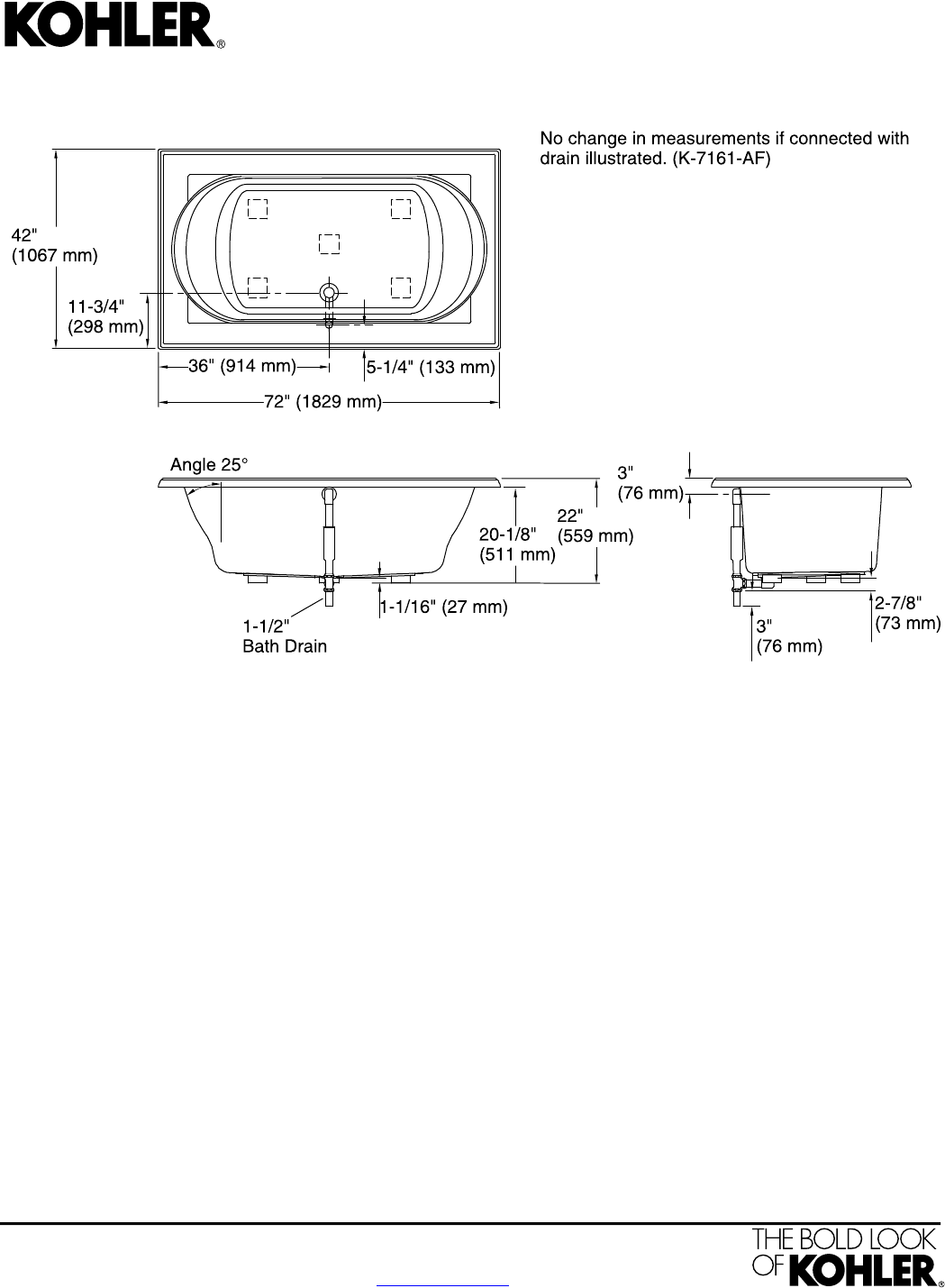

Measure your actual product for rough-in details.
All product dimensions are nominal.
Install this product according to the installation
instructions.
Drop-inInstallation:
CenterDrain location:
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
48" x 27" (1219 mm x 686 mm)Basin area, bottom:
60" x 30" (1524 mm x 762 mm)Basin area, top:
86 lbs (39 kg)Weight:
If installing a rim-mount faucet, make sure there
is no interference with drain overflow before
43 lbs/ft² (209.9 kg/m²)Minimum floor load:
16" (406 mm)Water depth:
drilling any holes. Consult local and national
94 gal (355.8 L)Water capacity:
codes for minimum air gap requirements if
installing a spout on the faucet deck.
Drop-in, 70-1/2" x 40-1/2" (1791 mm x
1029 mm)
Cutout:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-7-2017 05:37
Memoirs
®
6' Bath
K-1417
