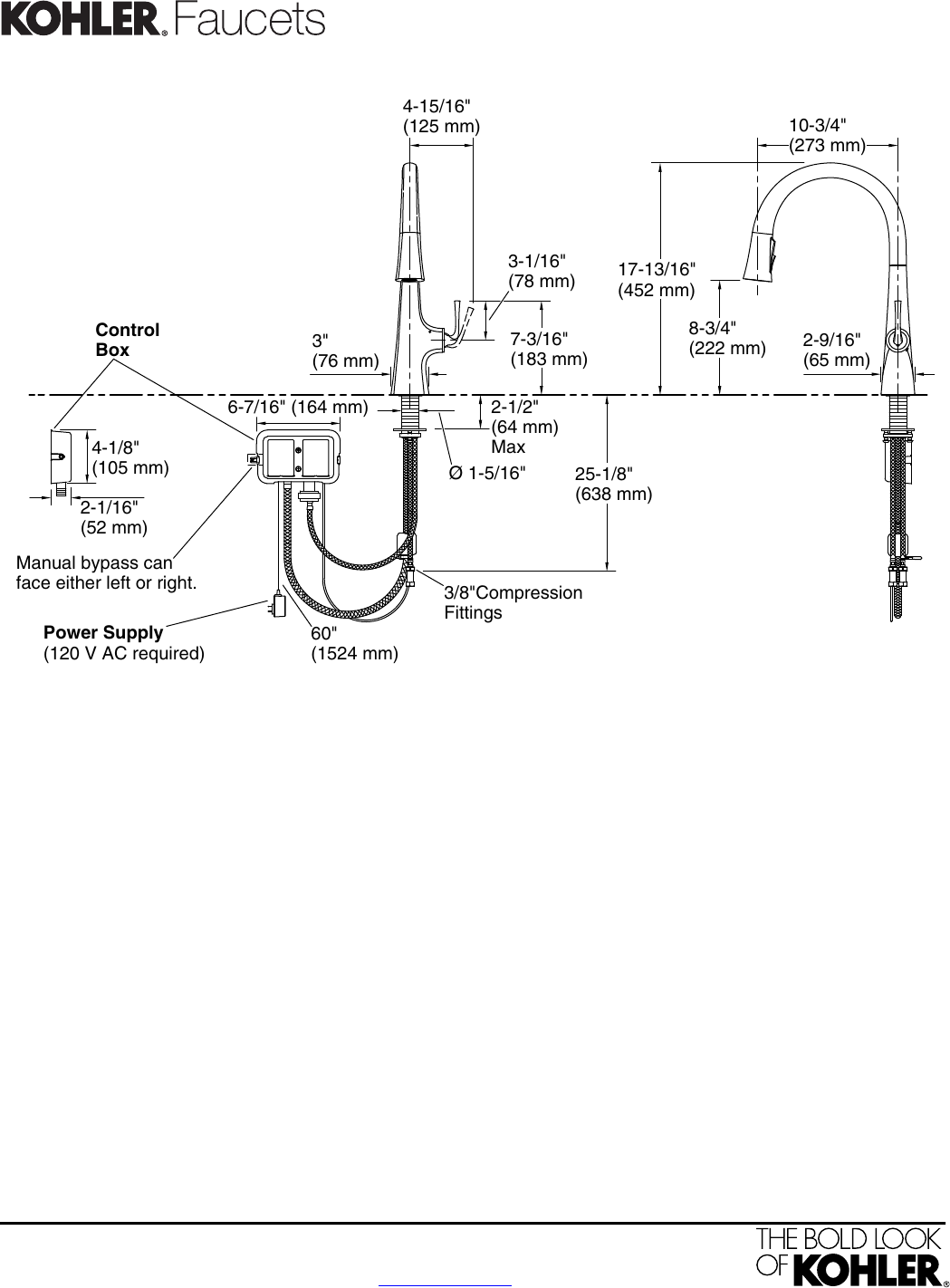

Specification Sheet

25-1/8"
(638 mm)
7-3/16"
(183 mm)
6-7/16" (164 mm)
2-1/16"
(52 mm)
4-1/8"
(105 mm)
60"
(1524 mm)
Power Supply
(120 V AC required)
Manual bypass can
face either left or right.
Control
Box
10-3/4"
(273 mm)
8-3/4"
(222 mm)
17-13/16"
(452 mm)
3"
(76 mm)
2-1/2"
(64 mm)
Max
3-1/16"
(78 mm)
4-15/16"
(125 mm)
3/8"Compression
Fittings
2-9/16"
(65 mm)
Ø 1-5/16"
Notes
Technical Information
Install this product according to the installation
instructions.
All product dimensions are nominal.
NoDrain included:
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-10-2019 12:06 - US/CA/LM
Graze
™
Touchless pull-down kitchen sink faucet
K-22068
