Installation Guide

1. Prepare the Site

Install Framing

NOTE: The mixer valve requires special framing and support.

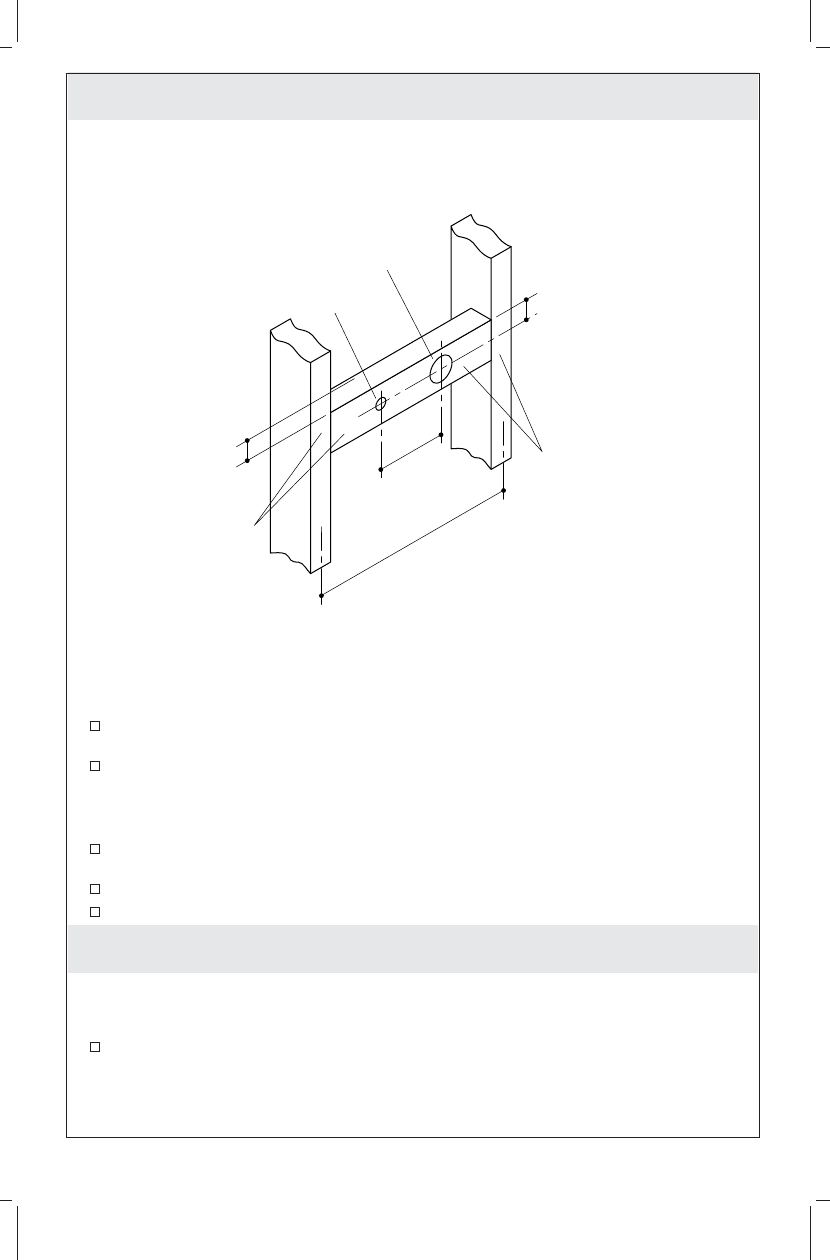

Construct the framing for the faucet installation. A suggested framing example is

illustrated.

Verify the constructed framing is level and will be parallel to the ﬁnished wall.

Adjust as needed.

Attach Mixer Valve

Loosely attach the mixer valve to the framing with one or two wood screws (not

provided).

Using the ﬂat portion of the mixer valve as a guide, level the mixer valve.

Fully tighten the wood screw(s).

Préparer le Chantier

Installer le cadrage

REMARQUE: Le mélangeur nécessite un cadrage et un support spéciaux.

Construire le cadrage pour l’installation du robinet. L’exemple de cadrage suggéré

est illustrée.

16" (40.6 cm)

6" (15.2 cm)

2-3/16"

(5.6 cm) D.

1-3/16"

(3 cm) D.

1-3/4"

(4.4 cm)

1-1/2"

(3.8 cm)

These surfaces to be

flush.

Ces surfaces doivent

être égales.

Estas superficies
