Specification Sheet

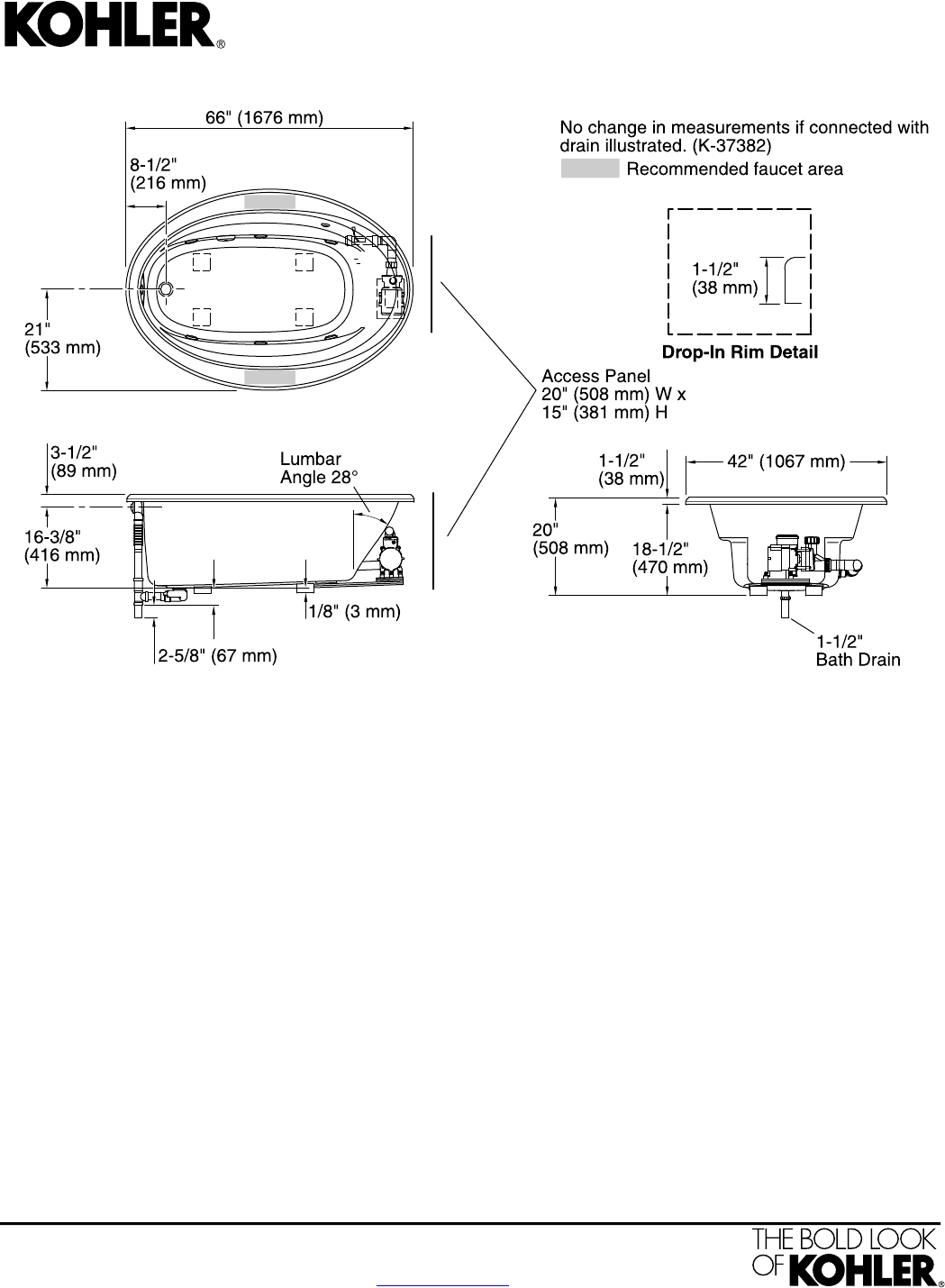

4-1/8" (105 mm)
Notes
Required Electrical Service
Measure your actual product for rough-in details.
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
120 V, 15 A, 60 HzPump:
Technical Information
All product dimensions are nominal.
Drop-in, Under-mountInstallation:
EndDrain location:
48-5/8" x 24-1/2" (1235 mm x 622 mm)Basin area, bottom:
60" x 32-3/16" (1523 mm x 818 mm)Basin area, top:
34 lbs/ft² (166 kg/m²)Minimum floor load:
14-5/16" (364 mm)Water depth:
70 gal (265 L)Water capacity:
Drop-in, 1233384-7, not required, included
Under-mount, 123, not required, not
included
Template:
Pump: 120 V, 7.5 A, 60 HzElectrical component
rating:
SinglePump speed:
0" (0 mm)Minimum flat for door:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-20-2016 06:24
Sunward
®
5.5' Whirlpool Bath
K-6347
