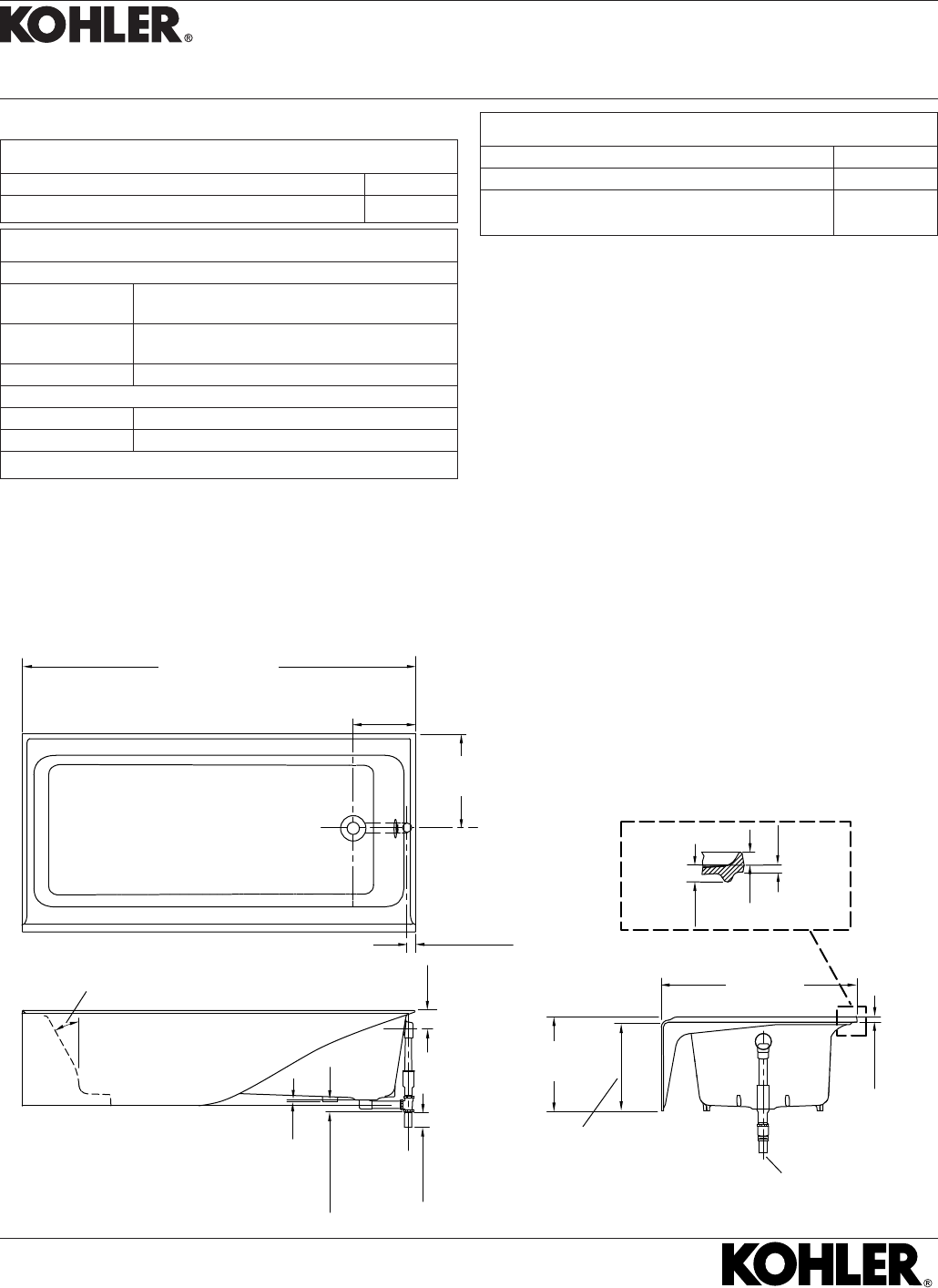

1
Product Information
Applicable product:
Bath with integral apron – left drain K-847
Bath with integral apron – right drain (shown) K-848
Fixture*:
Bathing well:
Basin area,
bottom
50-3/4″ (1289 mm) x 20-5/16″ (516 mm)
Basin area,
top
58-7/16″ (1484 mm) x 22-5/8″ (575 mm)
Weight 400 lbs (181 kg)
To overflow:
Water depth 11-11/16″ (297 mm)
Capacity 49 gal (185.7 L)
*Approximate measurements for comparison only.
Recommended accessories:
Toe tap bath drain OR K-7259
Cable bath drain – 30″ (762 mm), brass OR K-37380
Cable bath drain – 30″ (762 mm), with PVC
tubing
K-37383
Installation Notes
Install this product according to the installation guide.
Floor support under the bath must provide for a minimum of
57 lbs/square foot (278.3 kg/square meter) loading.
Will comply with ADA when installed per Section 607
Bathtubs of the ADA 2010 Standards for Accessible Design.
Fixture conforms to ASME Standards A112.19.1/CSA B45.2.
All dimensions are nominal.
32"
(813 mm)
17"
(432 mm)
1/2"
(13 mm)
No change in measurement if connected with
drain illustrated. (K-7259)
1-1/2" Bath Drain
16-1/2"
(419 mm)
Rim Flange Detail
5/8"
(16 mm)
1/4"
(6 mm)
1/2"
(13 mm)
1-3/16"
(30 mm)
2-5/8" (67 mm)
2-7/8"
(73 mm)
1/4" (6 mm)
3-1/4"
(83 mm)
16"
(406 mm)
66" (1676 mm)
9"
(229 mm)
Lumbar
Angle 39˚
Roughing-In
K-847, K-848
BELLWETHER
®
BATH WITH INTEGRAL APRON
BELLWETHER
®
BATH WITH INTEGRAL APRON
1183440-1-
B
