Rough In Guide

Product Information
Applicable products:
Lavatory faucet K-19774-4
Lever handle is ADA compliant
Included components:
Drain 1035625
Installation Notes
Install this product according to the installation guide.
Lower flow aerator options are available - please refer to the
Kohler price book.
3 5/8"
(9.2 cm)
7 3/8"
(18.7 cm)
11 7/8"
(30.2 cm)
13"
(33 cm)
2 1/4"
(5.7 cm) Max
2"
(5.1 cm) D.
1"
(2.5 cm)
Touch-Activated Drain
2-1/4"
(5.7 cm) D.
5-1/8"
(13 cm)
3-13/16"
(9.7 cm)
1-1/4"
OD

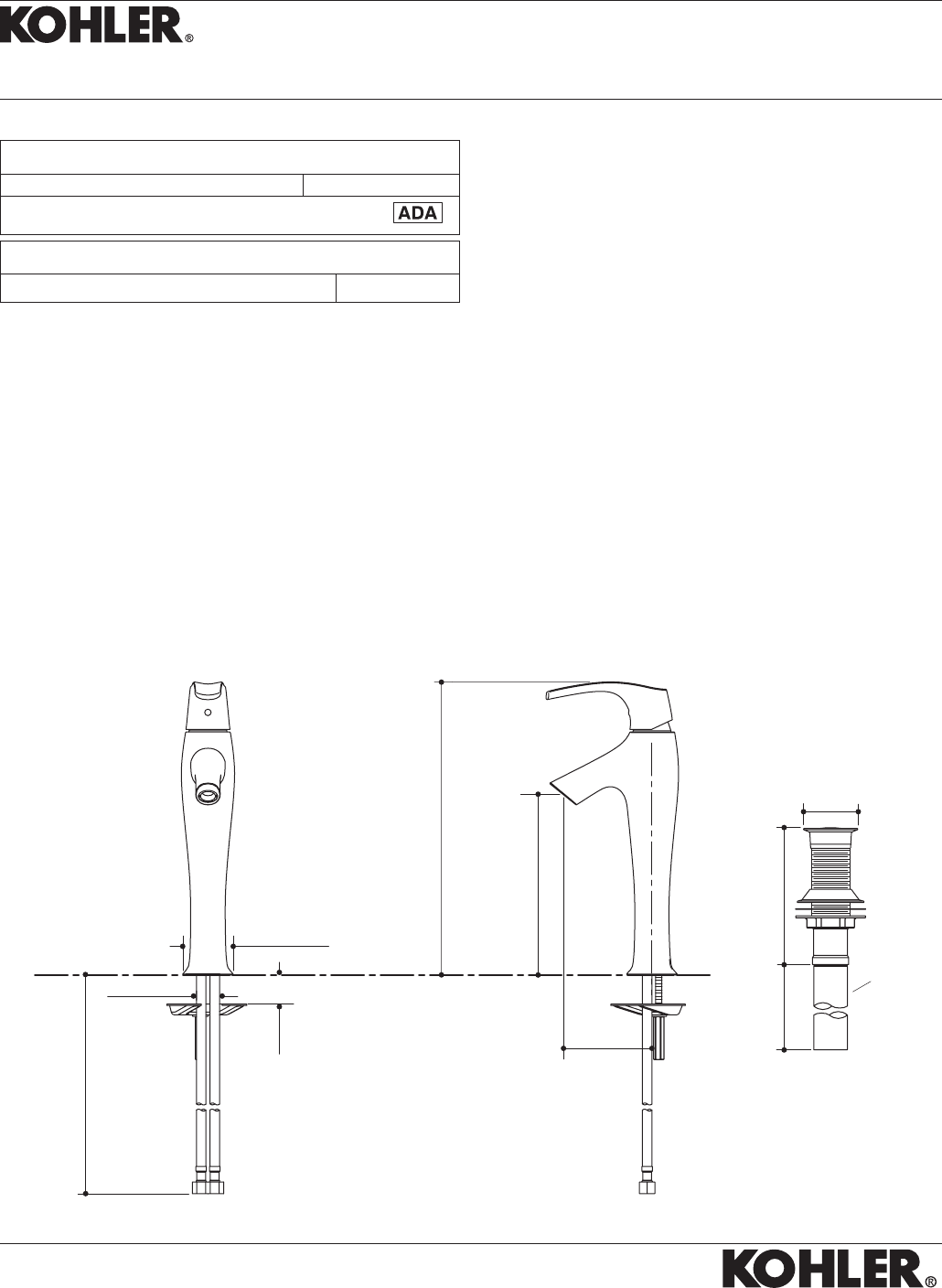

Roughing-In
K-19774
SYMBOL
TM
LAVATORY FAUCET
SYMBOLTM LAVATORY FAUCET
1044534-1-
D
