Rough In Guide

Product Information
Applicable faucet:
Primary pull-out kitchen sink faucet –
9″ (22.9 cm) spout reach
K-6331
Secondary/prep pull-out kitchen sink faucet –
8″ (20.3 cm) spout reach
K-6332
Lever handle is ADA compliant.
Installation Notes
Install this product according to the installation guide.
Lower flow aerator options are available - please refer to the
Kohler Price Book.
2-1/2"
(6.4 cm) Max
2" (5.1 cm)
1-5/16"
(3.3 cm) D.
3-1/4"
(8.3 cm)
K-6331
11-15/16" (30.3 cm)
K-6332
10-7/16" (26.5 cm)
K-6331
11-5/16" (28.7 cm)
K-6332
9-13/16" (24.9 cm)
K-6331 9" (22.9 cm)
K-6332 8" (20.3 cm)
K-6331
9-15/16" (25.2 cm)
K-6332
8-7/16" (21.4 cm)
3/8" Compression Fitting

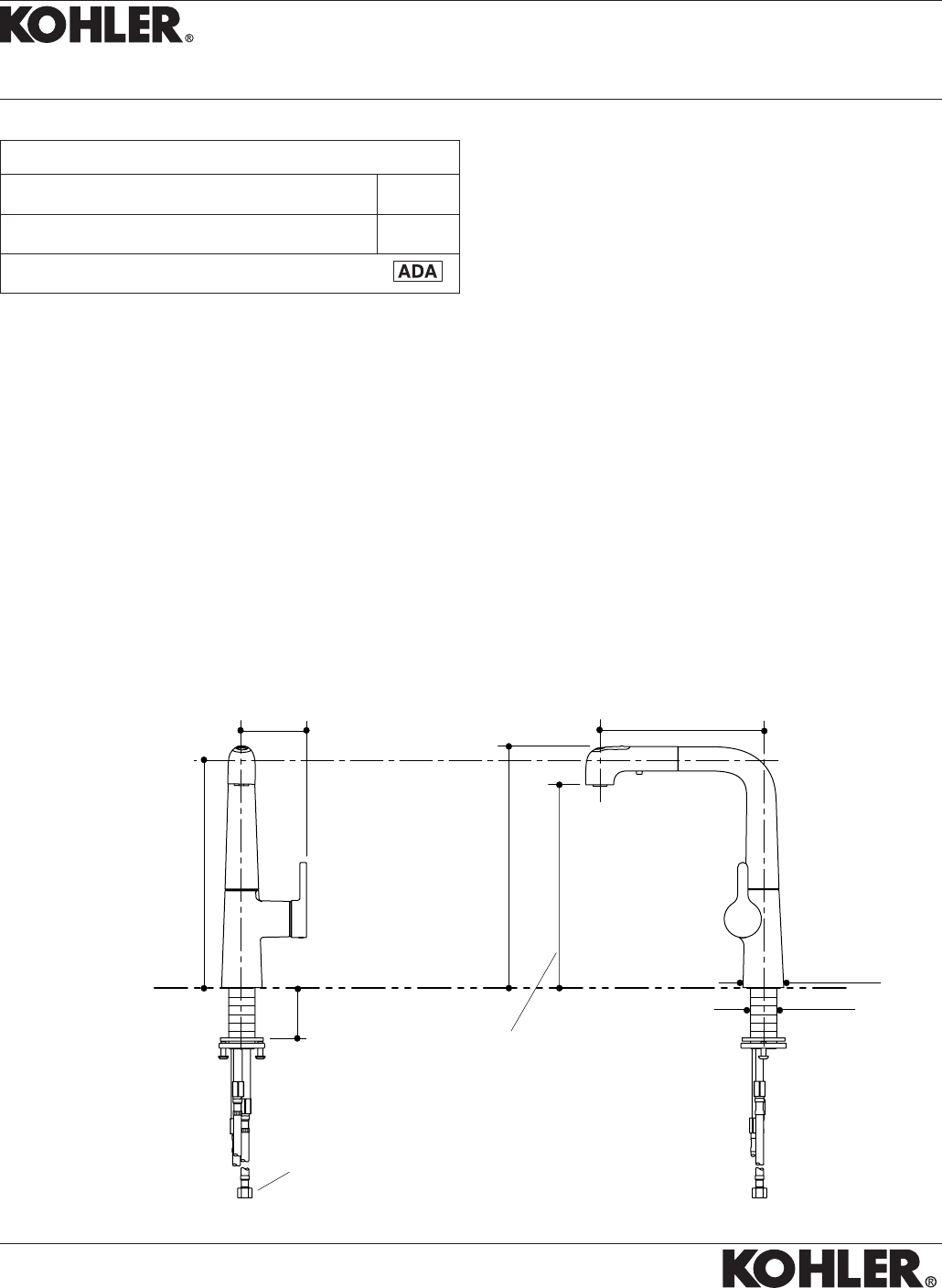

Roughing-In
K-6331, K-6332
EVOKE
TM
PULL-OUT KITCHEN SINK FAUCET
EVOKETM PULL-OUT KITCHEN SINK FAUCET
