Specifications Sheet

 2013, 2015 by Kohler Co. A ll rights reserved.
DISTRIBUTED BY:
G11-123 (RXT S tatus Indicator) 1/15a
LED Operation
LED State/Color Indicates
Utility Available
On Utility power is available
Off Utility power is not available
Utility Connected
On
Utility power is connected (ATS
in normal position)
Off Utility power is not connected
Generator Available
On
Generator set is running and
producing power
Off
Generator set power is not
available
Generator
Connected
On
Generator is connected to the
load (A TS in Emergency
position)
Off Generator not connected
Loads A through D
GM84662-KP2-QS
only
Red Load disconnected (shed)
Green Load connected (added)
Flashing red Disconnected (test)
HV AC Loads A, B
GM84662-KP2-QS
only
Red Load disconnected (shed)
Green Load connected (added)
Flashing red Disconnected (test)
Dimensions
Model Item Dimensions, mm (in.)
Indicator panel 92 x 42 (3.62 x 1.65)
GM84662-KP1-QS Ribbon cable length 254 (10)
Indicator panel 183 x 42 (7.20 x 1.65)
GM84662-KP2-QS Ribbon cable length 252 (9.93)
Kit Contents
Kit GM84662-KP1 -QS GM84662-KP2 -QS
Descrip tion Qty. Qty.
Decal, Membrane
Status Indicator
1 1
Installation
Instructions
1 1

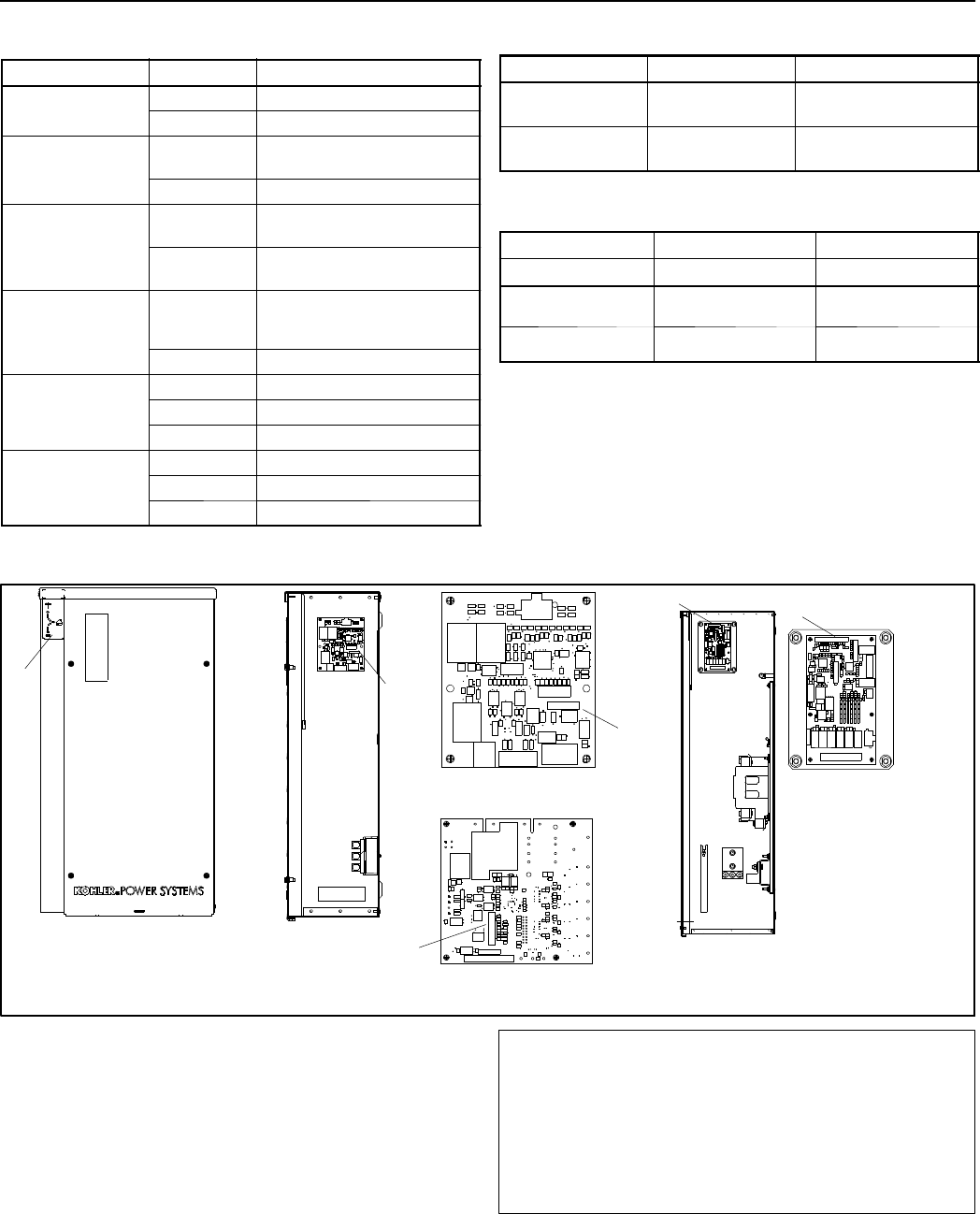

Status Indicator Location and Connection
1
1. Status Indicator
2. Status indicator connection to A TS interface board
2
2
2
2
2
Combined
Interface/
Load Management
Board
(GM84662-KP2-QS,
Single-Phase Only)
Three phase
(GM84662-KP1-QS)
Single phase
(GM84662-KP1-QS)
