How to Guide

Product Information

Applicable faucet trim:

With metal lever handles K-T10592-4

With ceramic lever handles K-T10592-4P

Required valve:

1/2″ valve system with integral

diverter

K-438-K-NA

Lever handles are ADA compliant.

Installation Notes

Install this product according to the installation guide.

6-1/8"

(15.6 cm)

7-1/8"

(18.1 cm)

2-7/16"

(6.2 cm)

5-7/16"

(13.8 cm)

3-3/16"

(8.1 cm)

Ceramic

2-5/8" (6.7 cm) D.

Traditional

4-3/16"

(10.6 cm)

3-3/16"

(8.1 cm)

3-3/16"

(8.1 cm)

4-3/16"

(10.6 cm)

2-1/2 "

(6.4 cm) Max

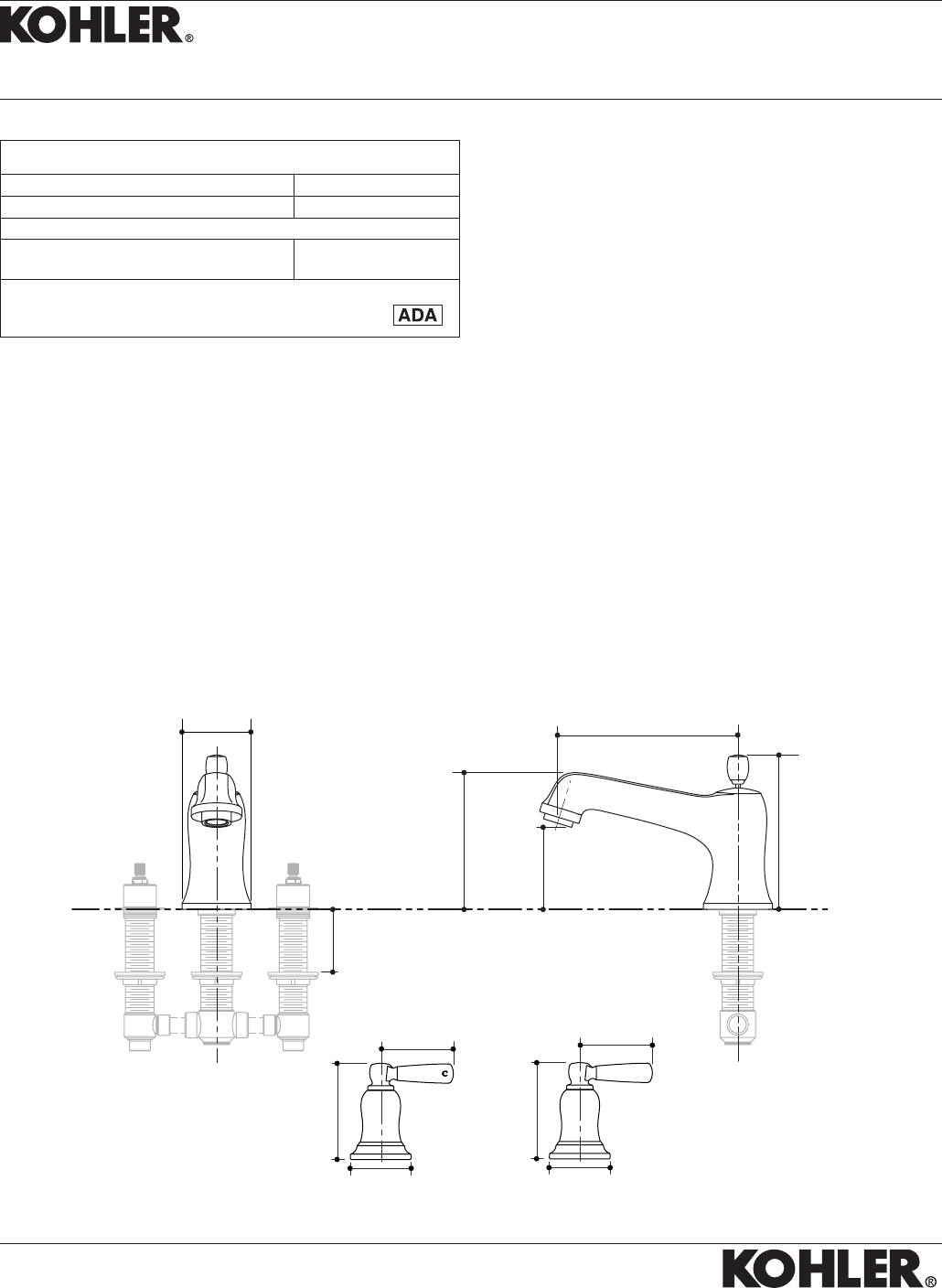

Roughing-In

K-T10592

BANCROFT

BATH FAUCET TRIM

BANCROFTTM BATH FAUCET TRIM

1049619-1-

PAGE 1
