Build – Smooth – Points
Smoothing the Selected Points
This command is used to make the boundary of the points selected in the currently displayed element smooth
as well as to regularize surface points density.
Operating Procedure
1
From the element list, select one desired
element.
2
Select the desired points.
3
From the [Build] menu, select [Smooth]
and then click [Points].

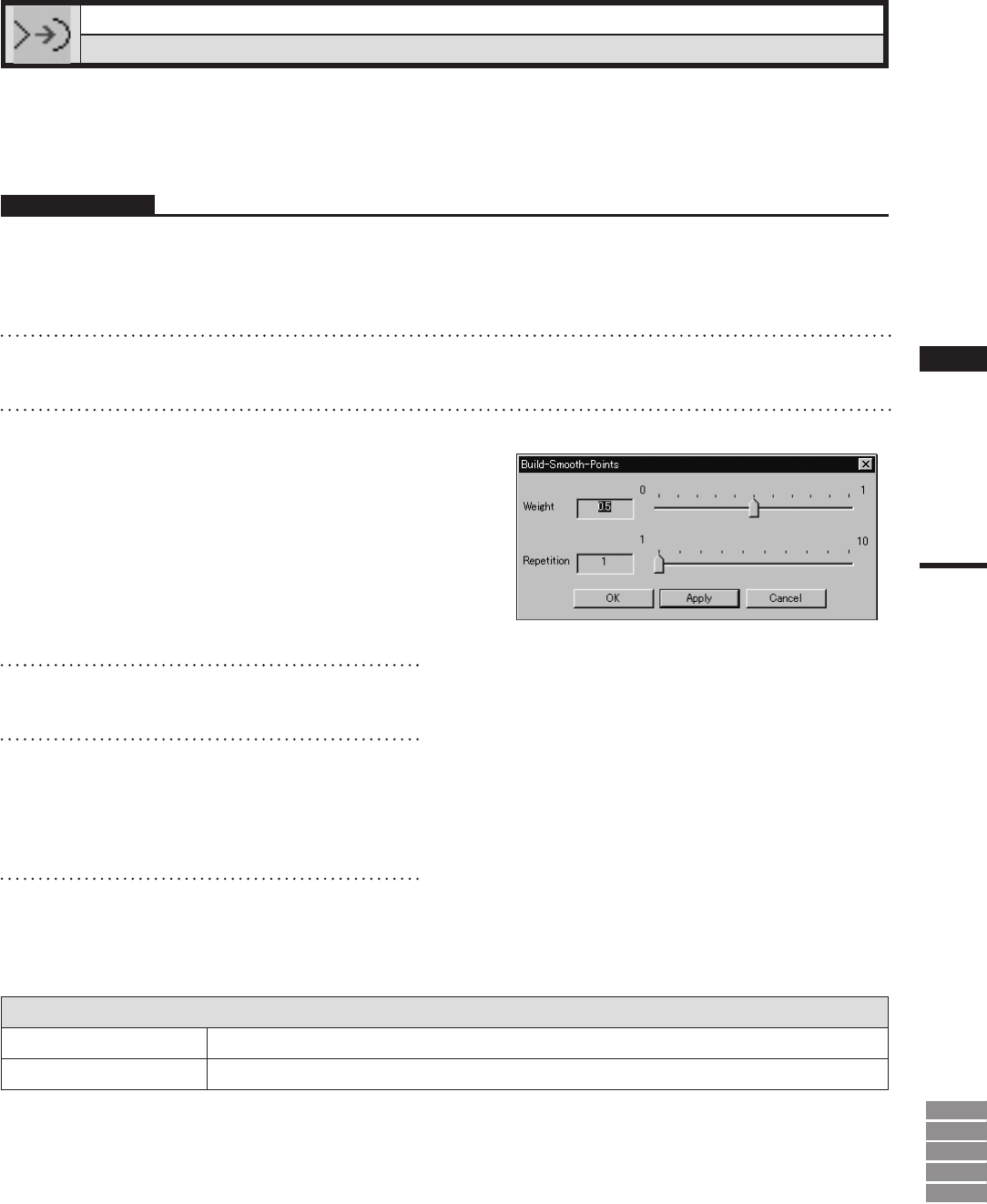

The [Build-Smooth-Points] dialog box will ap-
pear.
• The selected element will be ready to be dis-
played in all windows. It will be displayed if
it is not displayed in the active window or the
windows for which all the elements are set to be
displayed.
4
Set the parameters.
5
Click the [Apply] button.
The boundary of the selected points will be
smoothed according to the parameter settings
and then displayed.
Parameters for [Build-Smooth-Points] Dialog Box
Weight
Used to set level of regularization of surface points density.
Repetition
Used to set level of smoothness.
• If you change the parameter settings and click
the [Apply] button again, the element will be
smoothed according to the new parameter set-
tings.
6
Click the [OK] button.
This will conrm execution of smoothing and
close the dialog box.
