Assembling the stand > Assembling procedure
63

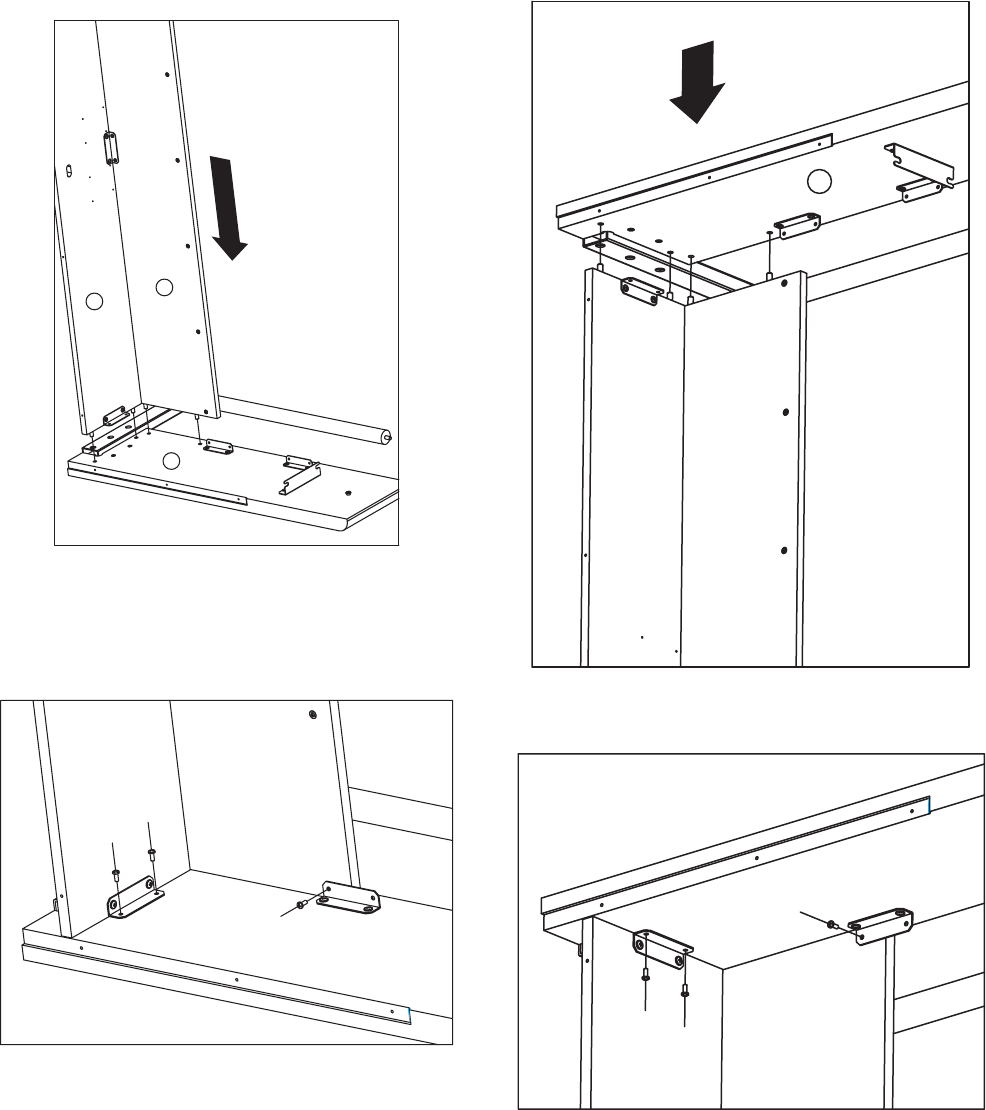

3. Lay the left side panel (C) on one of the protective card-
board sheets (e), and fasten to it the pedal beam and front
bar assembly.
Warning: Be careful not to scratch the wooden surface of
the side panels.
4. Fix the left leg to the pedal beam and front bar assembly
with three screws (a).
5. With the stand assembly still in the same position, attach
the right side panel (D) by inserting the remaining four
bolts of the pedal beam into the corresponding holes of the
right side panel (D).
6. Fasten the right side panel with three screws (a).
7. Turn the stand assembly up, making the two feet firmly lay
on the floor.
B
A
C
a
a
a
D
a
a
a
