Assembling the stand > Check after assembly
67

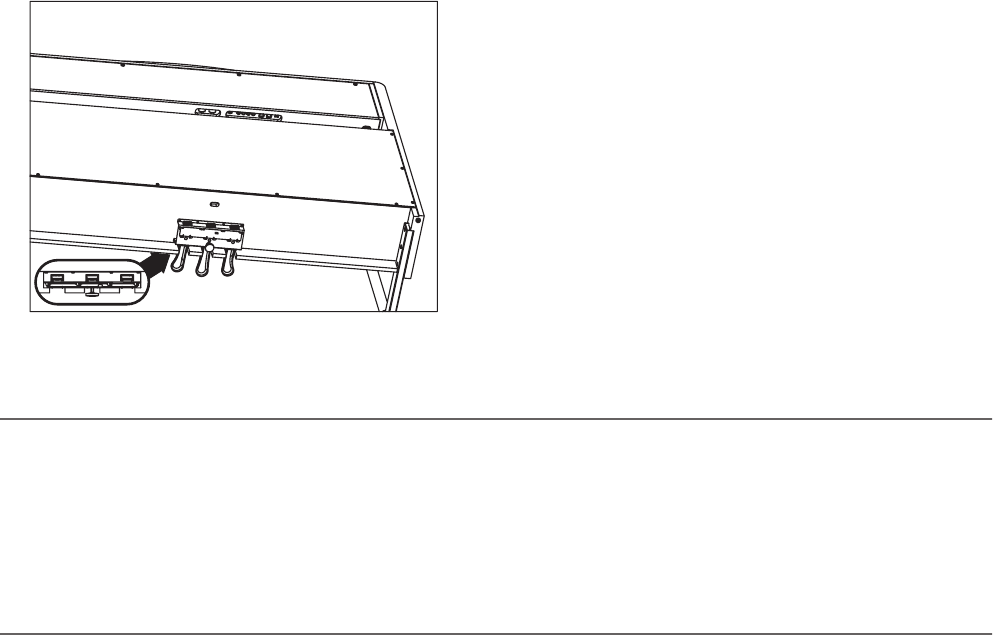

20.Loosen the pedal adjuster, and adjust it so that it is in firm
contact with the floor.
Note: Unless the adjuster is in firm contact with the floor,
the pedal will wobble, possibly causing malfunctions.
Check after assembly
[•] Are any parts left over?
If any parts are left over, check the diagrams to see where
they should be used.
[•] Make sure that all screws are tight.
Caution
Caution when transporting the instrument
Remove the piano from its stand, and transport them sepa-
rately. After transportation, refer to these instructions and re-
assemble the piano and stand.
Screw loosening
After assembly, the various screws and bolts of the stand may
loosen as time goes by, causing the stand to wobble. If this oc-
curs, re-tighten the screws.
Disassembly
If you need to packup the piano, reverse the assembly order by
which the piano was attached to the stand and the stand was
assembled. After disassembly, save the screws and other parts
so that no parts are lost.
