Your VP-2x2 2x2 XGA/Audio Matrix Switcher
4
4 Your VP-2x2 2x2 XGA/Audio Matrix Switcher

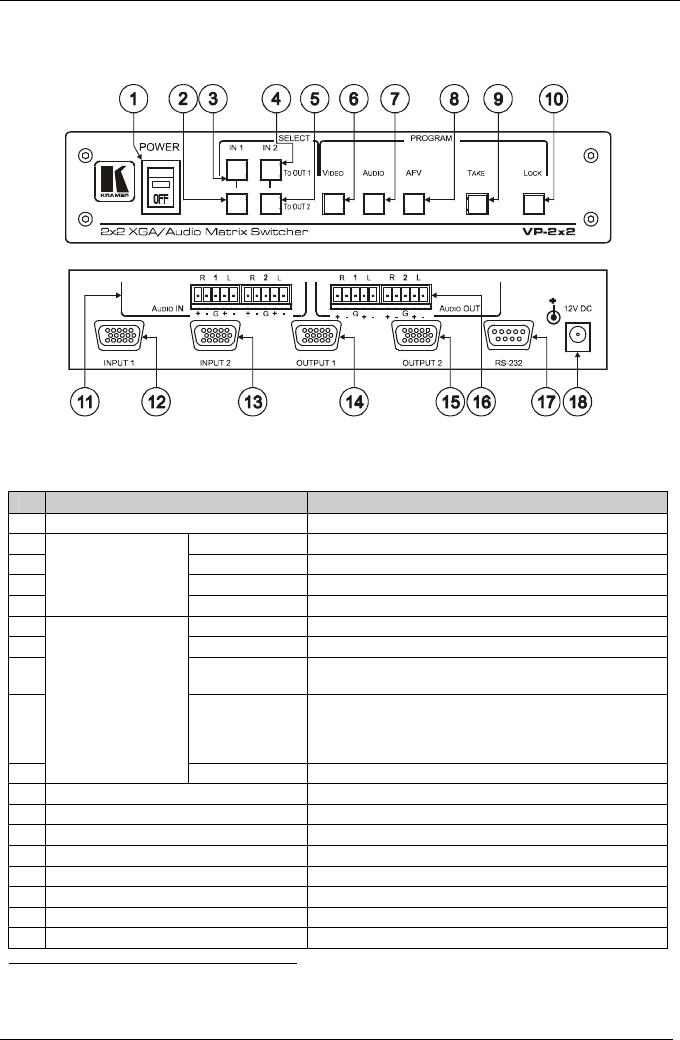

Figure 1 and Table 1 define the front and rear panels of the VP-2x2:
Figure 1: VP-2x2 2x2 XGA/Audio Matrix Switcher
Table 1: VP-2x2 2x2 XGA/Audio Matrix Switcher Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 IN 1 To OUT 2 Switches input 1 to output 2
3 IN 1 To OUT 1 Switches input 1 to output 1
4 IN 2 To OUT 1 Switches input 2 to output 1
5
SELECT Buttons
1
IN 2 To OUT 2 Switches input 2 to output 2
6 VIDEO When illuminated, actions relate to video
7 AUDIO When illuminated, actions relate to audio
8 AFV When illuminated, audio channels follow the video
channels
9 TAKE Pressing TAKE toggles the mode between the Confirm
mode
2
and the At Once mode (user confirmation per
action is unnecessary). In Confirm mode, TAKE
implements the pending action
10
SELECT Buttons
1
LOCK Disengages/engages the front panel buttons
11 AUDIO IN Terminal Block Connectors Connects to the 2 balanced audio inputs
12 INPUT 1 HD15F Connector Connects to the video source 1
13 INPUT 2 HD15F Connector Connects to the video source 2
14 OUTPUT 1 HD15F Connector Connects to the video acceptor 1
15 OUTPUT 2 HD15F Connector Connects to the video acceptor 2
16 AUDIO OUT Terminal Block Connectors Connects to the 2 balanced audio outputs
17 RS-232 9-pin D-sub Connector Connects to PC or Remote Controller
18 12V DC +12V DC connector for powering the unit
1 Press to select. When selected, the button illuminates
2 When in the Confirm mode, the TAKE button illuminates
