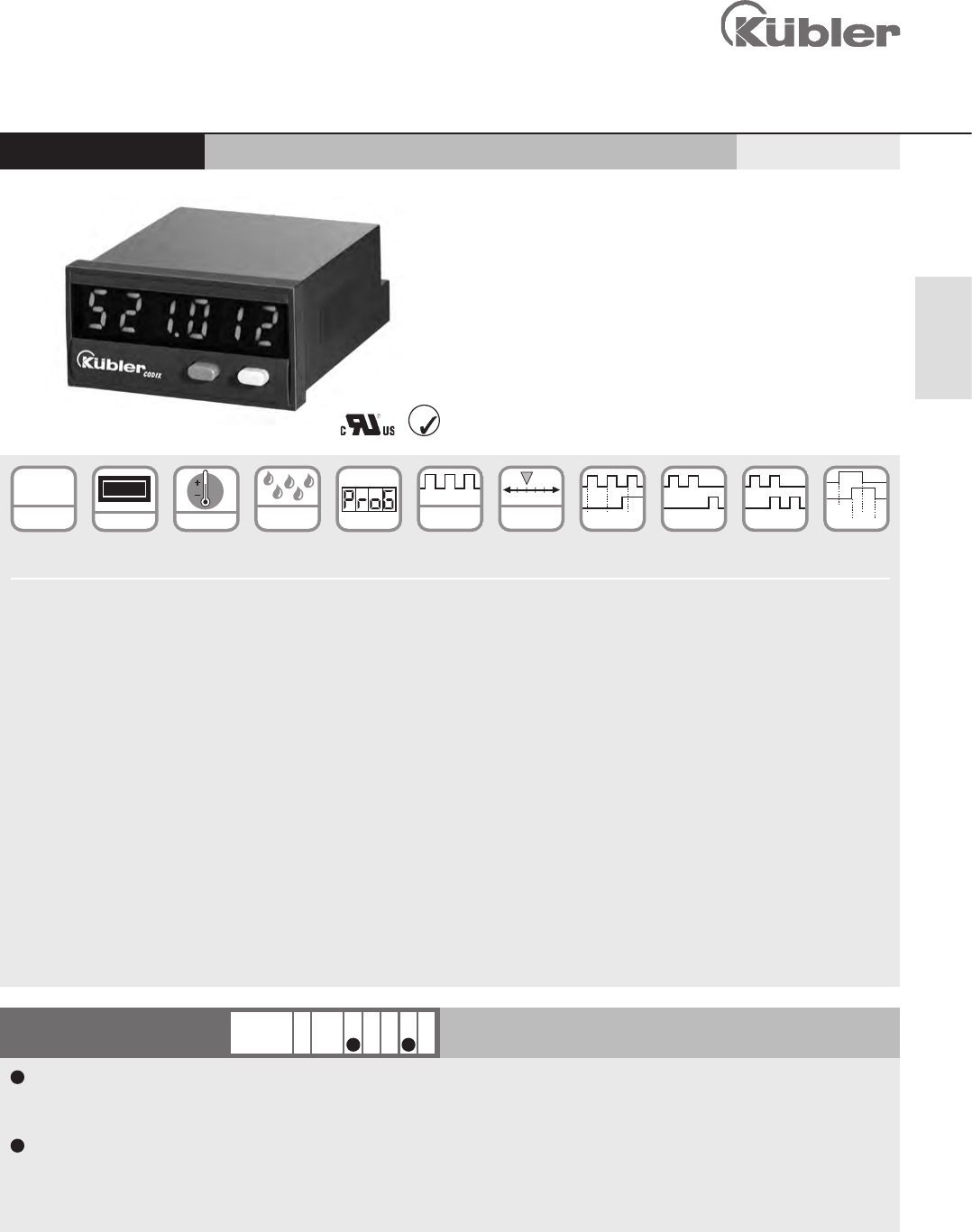

The Codix 521 is a voltage powered pulse counter / position

display for fast and slow count pulses, with 6-digit LED display for

NPN, PNP input signals.

Equipped with 4 count input modes: count direction, difference,

addition, quadrature (phase discriminator) x1, x2 and x4.

Powerful

• Fast count input – input frequency max. 60 kHz.

• Robust housing – IP65 protected.

• Very bright LED display, 8 mm high.

• Position, difference, adding or count direction detection

- programmable for positive (PNP) or OV (NPN) switching

input pulses.

- fast count input with an input frequency of max. 60 kHz,

can be damped to 30 Hz for mechanical contacts.

• Short start-up time – detects input pulses just 16 msec after

being switched on => no pulses are lost with a simultaneous

motor start-up.

User-friendly

• Large keys – can also be operated when wearing gloves.

• Simple uniform menu-driven programming and operation

– possible to enter the programming also during operation

with a conﬁrmation prompt.

• Individually programmable scaling:

Multiplication and division factor (0.0001…99.9999), to display

corresponding engineering units, e.g. position in 1/10 mm or

packing units.

• 4 different count input modes:

2-channel count input for detecting count direction, difference

or adding mode, quadrature with x1, x2 or x4 evaluation.

• Freely programmable setpoint.

• As an alternative to the HTL inputs, devices are available with

a 4 ... 30 V DC input level, for use as parallel displays to PLCs.

• Optional output - as zero signal.

Order code

Output

1 = optocoupler output

2 = no output

Input switching level

0 = Standard (HTL)

A = 4 ... 30 V DC

1) Stock types.

6.521 . 01 . 3 XX 0

Power supply Temperature

range

DIN front bezel Menu-driven

programming

High protection

level

Position

display

Count with

direction (DIR)

Differential

count (up.dn)

Add/Add count

(up.up)

Phase

discriminator

Pulse counter/

Totalizer

LED pulse counters Codix 5216 count modes (DC)

Delivery speciﬁcation

· Counter

· Mounting clip

· Front bezel for screw mounting (T008181) 56 x 40 mm [2.20 x 1.57“], panel cut-out 50 x 25 mm [1.97 x 0.98“]

· Front bezel for clip mounting (T008180) 53 x 28 mm [2.09 x 1.10“], panel cut-out 50 x 25 mm [1.97 x 0.98“]

· Gasket

· Instruction manual, multilingual

Summary of content (3 pages)

PAGE 1
Pulse counters, electronic LED pulse counters 6 count modes (DC) Codix 521 The Codix 521 is a voltage powered pulse counter / position display for fast and slow count pulses, with 6-digit LED display for NPN, PNP input signals. Pulse counters Equipped with 4 count input modes: count direction, difference, addition, quadrature (phase discriminator) x1, x2 and x4. RoHS DC 000000 10 ...
PAGE 2
Pulse counters, electronic LED pulse counters 6 count modes (DC) Accessories Codix 521 Dimensions in mm [inch] Order no. Adapter front bezel, 72 x 36 [2.83 x 1.42] for cut-out 68 x 33 [2.68 x 1.30] to cut-out 45 x 22.2 [1.77 x 0.87], for counters 48 x 24 [1.89 x 0.94], as set black and silver anodised 162704 Set Adapter front bezel, 48 x 48 [1.89 x 1.89] for cut-out 45 x 45 [1.77 x 1.77] to cut-out 45 x 22.2 [1.77 x 0.87], with clip mounting for counters 48 x 24 [1.89 x 0.
PAGE 3
LED pulse counters 6 count modes (DC) Codix 521 Terminal assignment 5 2 1. 0 1 2 Power supply: 10...30 V DC Display A Count input B optional output μ processor Reset input Keypad 1 2 3 4 5 1 2 3 4 5 6 7 PIN without optocoupler PIN with optocoupler (NPN) 1 10 ... 30 V DC 1 10 ... 30 V DC 2 0 V GND 2 0 V GND 3 INP A 3 INP A 4 INP B 4 INP B 5 Reset 5 Reset 6 Emitter 7 Collector Pulse counters Block diagram Dimensions 22 x 45 [0.866 x 1.
