OWNER’S MANUAL Profile System Two TM Congratulations on the purchase of your new Kustom Profile System Two; a portable and powerful stereo P.A. System. Your new system offers unsurpassed sound quality as well as outstanding performance characteristics. Inside this manual you’ll find detailed information regarding the system’s many features. We wish you many years of enjoyment with your Kustom Profile System Two.
ENGLISH IMPORTANT SAFETY INSTRUCTIONS 1. Danger Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably to noise induced hearing loss but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. 2. 3. 4. 5. The U.S.
IMPORTANTES INSTRUCTIONS DE SECURITE FRENCH 1. Lire avec attention toutes les recommandations et précautions d'emploi avant d'utiliser ce produit. 2. Toutes les recommandations et précautions d'emploi doivent être conservées afin de pouvoir s'y reporter si nécessaire. 3. Lire et comprendre tous les avertissements énumérés dans les précautions d'emploi. 4. Suivre toutes les précautions d'emploi pour utiliser ce produit. 5.
Table of Contents Profile System Two Contents Optional Accessories Profile System Two Features Setup Diagram A - Mixer Front Setup Diagram B - Mixer Back Setup Diagram C - Speaker Cabinet Back Setup Instructions About the Master Section About the Input Section About the Output Section FAQ Frequently Asked Questions Amplifier Loading Chart Block Diagram Specifications EC Declaration of Conformity Kustom Contact Information 4 5 5 5 6 7 8 9 10 11 14 15 16 17 18 19 20

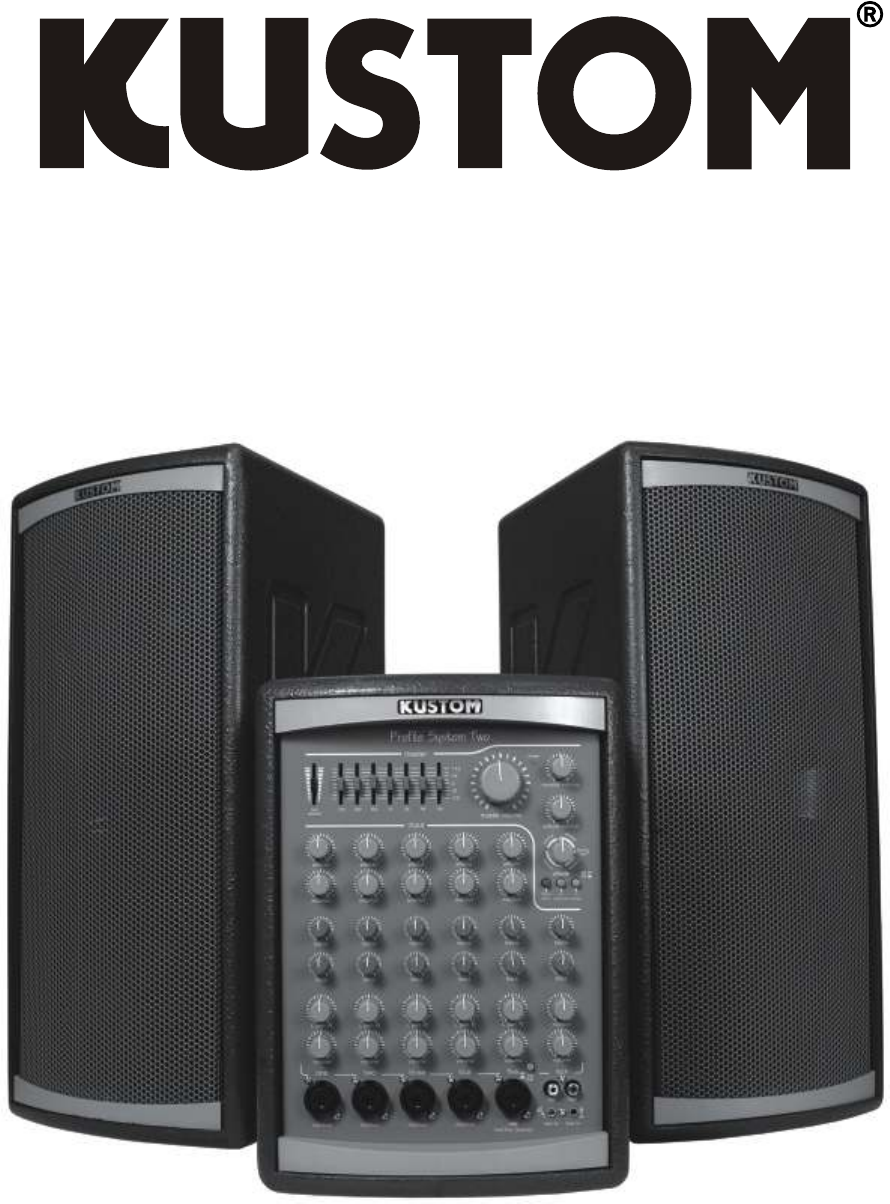

Profile System Two Contents These items are included with your Profile System Two: • (1) 300-Watt Stereo Powered Mixer • (2) Line Array Speaker Cabinets • (2) 25-Foot Speaker Cables • Owner’s Manual • Warranty Card Optional Accessories: • Convenient Roller Bag for Easy Transport (KPSRB220) • Kustom Profile Stands for Speakers & Mixer (KPSSS200) • Kustom Profile Microphone with accessories (KPS-DM120) Profile System Two Features Profile Two Powered Mixer • Power: 300 Watts RMS Total - 150 Watts Per Channel
SETUP DIAGRAM A MIXER FRONT 6
SETUP DIAGRAM B MIXER BACK 7
SETUP DIAGRAM C SPEAKER CABINET BACK Speaker Input Jack (Y) This jack is used to connect the Speaker Output Jack (R or W) to the speaker. This should be connected with a good quality speaker cable.
Setup Instructions: Making Connections: • Using the Profile speaker cables, or a set of your own, connect an end of each cable into the speaker outputs of the mixer (R & W). Then connect the opposite end of each cable to the appropriate speaker cabinet input (Y). Hint: For ease of use, connect the right output jack (R) to the speaker cabinet on the right side of the mixer front and connect the left output jack (W) to the speaker cabinet on the left side of the mixer front.
About the Master Section The master section gives you final control over the sum of what is happening in the input section. In other words, the adjustments you make in this section will affect all channels evenly. Sub Volume Control (1) When using a powered subwoofer that is connected into the sub output jack (U), this control becomes a volume control for the subwoofer. The output signal level can be adjusted by + or 12dB.
About the Input Section The input section is where you connect microphones, guitars, drum machines, keyboards, and other audio sources. Effects Control (A) This control is used to send the signal from the individual channel to the digital effects. The effects volume control (6) adjusts the overall volume for this control. Monitor Control (B) This control is used to send the signal from the individual channel to the monitor output jack (T).
Methods for connecting inputs to channels Method 1: Microphone using XLR balanced inputs This is the most popular method for connecting microphones. It works with both dynamic and condenser low impedance microphones. Acoustic guitars that have XLR balanced outputs can also use this input. Because of the phantom power on these inputs, a battery may not be needed. Check the 2 1 3 manufacturer of your instrument for use without a battery.
About the Input Section (Cont.) Combination Input Jack (M) This jack functions the same as the other combination jacks (L) except the 1/4” input can be stereo, mono, or hi-Z mono. String instruments, such as acoustic guitar that have a passive pickup (nonbattery powered) are typically hi-z mono and will work best in this channel.
About the Output Section The output section (mixer back) is where you connect your speakers, recording equipment, and any other external sound conditioning device. Left Preamp Output (N) This jack can be used to connect the left output to an external audio device such as a power amp. This output is line level. Right Preamp Output (O) This jack can be used to connect the right output to an external audio device such as a power amp. This output is line level.
FAQ Frequently Asked Questions: 1. How many speakers can I use with the Profile Two? ANSWER: Most speaker cabinets today are 8-ohms. For the sake of this question we will assume this is the case. You can use a total of four 8-ohm speakers with the Profile Two: Two for the Left power-amp and two for the Right power-amp. The Profile Two cabinets are 4-ohms each. DO NOT connect more than one of these cabinets per power-amp. DO NOT plug more than two 8-ohm speakers or one 4-ohm speaker into each poweramp. 7.
The Profile System Two mixer and speakers have been specifically designed and optimized for use together as a package. The mixer has been designed to deliver maximum power with a 4-ohm load on each channel. If you choose to use different speakers with the mixer, refer to the chart below for loading information. Amplifier Loading Chart (each channel) Speaker cabinet loads (ohms) applied to the amplifier Cabinet B’s Impedance open 16 8 5.33 4 3.20 2.67 2 Cabinet A’s Impedance (ohms) open 16 8 5.33 4 3.
RCA RING (R) SLEEVE RING (R) TIP (L) SLEEVE RIGHT LEFT Line MIC TIP (L) AUX IN SLEEVE Line/Inst TIP (L/mono) RING (Right) Microphone Hi-Z Amp + - Preamp Preamp Right Sum-amp Left Sum-amp LINE/INST + - Phantom Power Right Sum-amp Left Sum-amp Phantom Power Mic/Line(mono/stereo)-Inst. Phantom Power Input Jack CHANNEL 5 TIP (+) RING (-) SLEEVE Line Microphone Mic/Line Input Jack Vol. Tone R L Tone LE SS REB BA T Vol./ Sum MONITOR R L Vol. Vol. Vol. Vol.
Profile System Two Specifications Model Output Power, Both Channels Driven Accepted Inputs Frequency Response Total Harmonic Distortion Hum & Noise System Gain per Channel Input Channel Equalization Master Equalization Sub Woofer Digital Effects Phantom Power Power Requirements Dimensions & W eight Model Power Capacity Frequency Response Nominal Impedance Dimensions & W eight Per Cabinet KPS-PM300 145W per channel 150W per channel 170W per channel CH 1 - 4 6 Channel Dual Powered Mixer 4 Ohms @ 0.
EC Declaration of Conformity We: Kustom Musical Amplification Inc. 4940 Delhi Pike Cincinnati, OH 45238 Tel: 1-513-451-5000 Fax: 1-513-347-2192 Declare that the product Product name: Kustom Product model number: Profile System Two to which this declaration relates is in conformity with the following standards; EN55013 (A12) : 1995 Limits and methods of measurement of radio disturbance characteristics of broadcast receivers and associated equipment.
