Datasheet

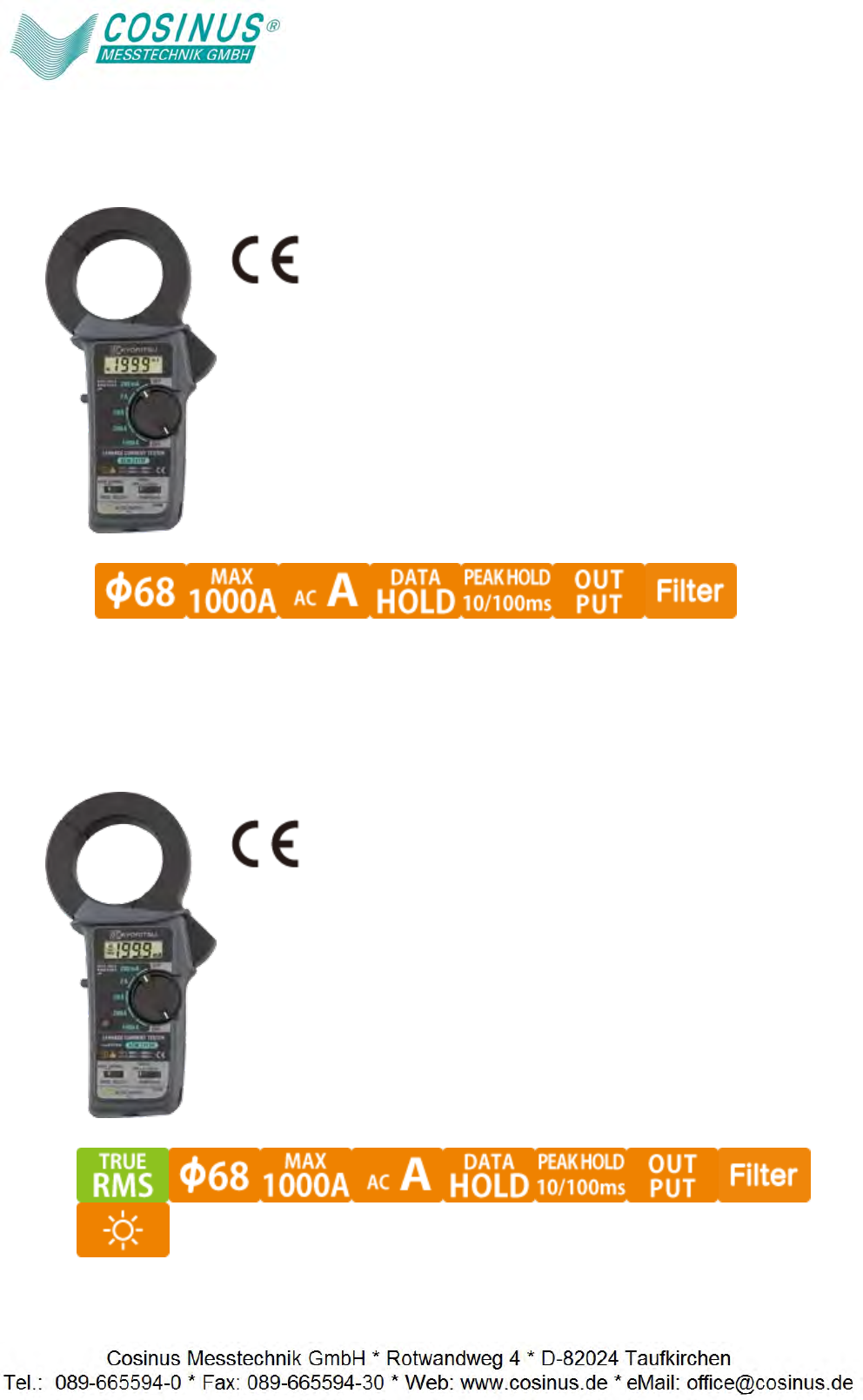

Leakage Clamp Meters

KEW 2413F

• Extra wide transformer jaws are best suited for

clamping on all three or four wires (3phases) together

for leakage current measurement.

• Frequency filter switch to eliminate the effect of

harmonics.

• Output terminal.

• Resolution 0.1mA.

KEW 2413R

• Large transformer jaws of 68mm diameter makes it

possible to clamp on all three or four wires (3 phases)

together for leakage current measurement.

• True RMS enables an accurate measurement for

distorted waveforms.

• Measurement from mA up to AC 1000A

• Frequency filter switch to eliminate the effect of the

harmonics.

• 2 way analogue output terminal

• Resolution 0.1mA

PAGE 1
Leakage Clamp Meters KEW 2413F • Extra wide transformer jaws are best suited for clamping on all three or four wires (3phases) together for leakage current measurement. • Frequency filter switch to eliminate the effect of harmonics. • Output terminal. • Resolution 0.1mA. KEW 2413R • Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement. • True RMS enables an accurate measurement for distorted waveforms.
PAGE 2
KEW 2413R 200mA/2/20/200/1000A ±2.5%rdg±5dgt (200mA/2/20A) AC A (50/60Hz) ±3.0%rdg±5dgt (200A, 0 - 500A) ±5.5%rdg (501 - 1000A) AC A (WIDE) Crest factor 200mA/2/20/200/1000A ±1.8%rdg±5dgt (50/60Hz) (200mA/2/20A) ±2.0%rdg±5dgt (50/60Hz) (200A, 0 - 500A) ±5.0%rdg (50/60Hz) (501 - 1000A) 3.0 or less Conductor size Ø68mm max.
PAGE 3
KEW 2413F AC A (50/60Hz) AC A (WIDE) Conductor size Frequency response Effect of external stray magnetic field φ15mm 100A Output Applicable standards Power source Dimensions Weight 200mA/2/20/200A/1000A ±1.5%rdg±2dgt (200mA/2/20A) ±2%rdg±2dgt (200A 0 - 500A) ±5.5%rdg (501 - 1000A) 200mA/2/20/200/1000A ±1%rdg±2dgt [50/60Hz], ±3%rdg±2dgt [40Hz - 1kHz] (200mA/2/20A) ±1.5%rdg±2dgt [50/60Hz], ±3.5%rdg±2dgt [40Hz - 1kHz] (200A/0 500A) ±5%rdg [50/60Hz], ±10%rdg [40Hz - 1kHz] (501 - 1000A) Ø68mm max.
