Printer User Manual

Appendix
148
7
C
CC
C
To avoid making your hands
dirty with toner from the transfer
roller, wear the gloves included
in the maintenance kit.
D
DD
D

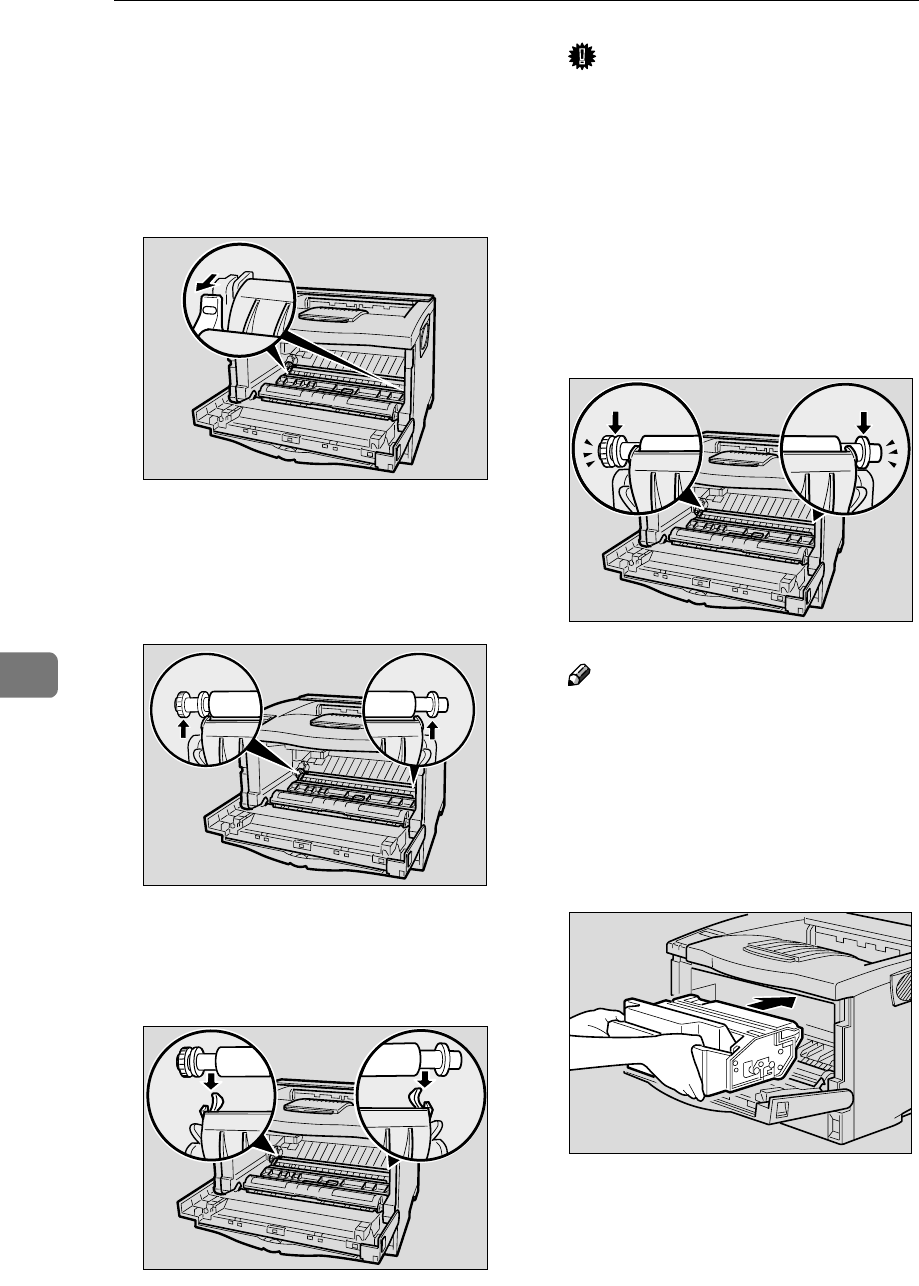

Hold the lock levers (“$
$$
$” parts),
and pull them.
E
EE
E
Hold the green parts of the roller
on both sides, and remove the
roller from the printer as shown
in the illustration.
F
FF
F
Insert the new transfer roller on
the socket with the gear of the
roller positioned on the left.
Important
❒ Do not insert the roller on the
back of the socket, or the printer
might be damaged.
❒ Insert the metallic part of the
roller on the socket. If you insert
the sponge part of the roller, the
roller might be damaged.
G
GG
G
Push down the green parts of
both sides of the printer until it
clicks as shown in the illustration.
Note
❒ When the transfer roller is set,
the transfer roller cover will re-
turn to its original position au-
tomatically.
H
HH
H
Holding the grips of the toner car-
tridge, insert it into the printer
until it stops.
ZCEM200J
ZCEM210J
ZCEM220J
ZCEM221J
ZGDT120J
