12: VIP

EDS1100/2100 User Guide 106

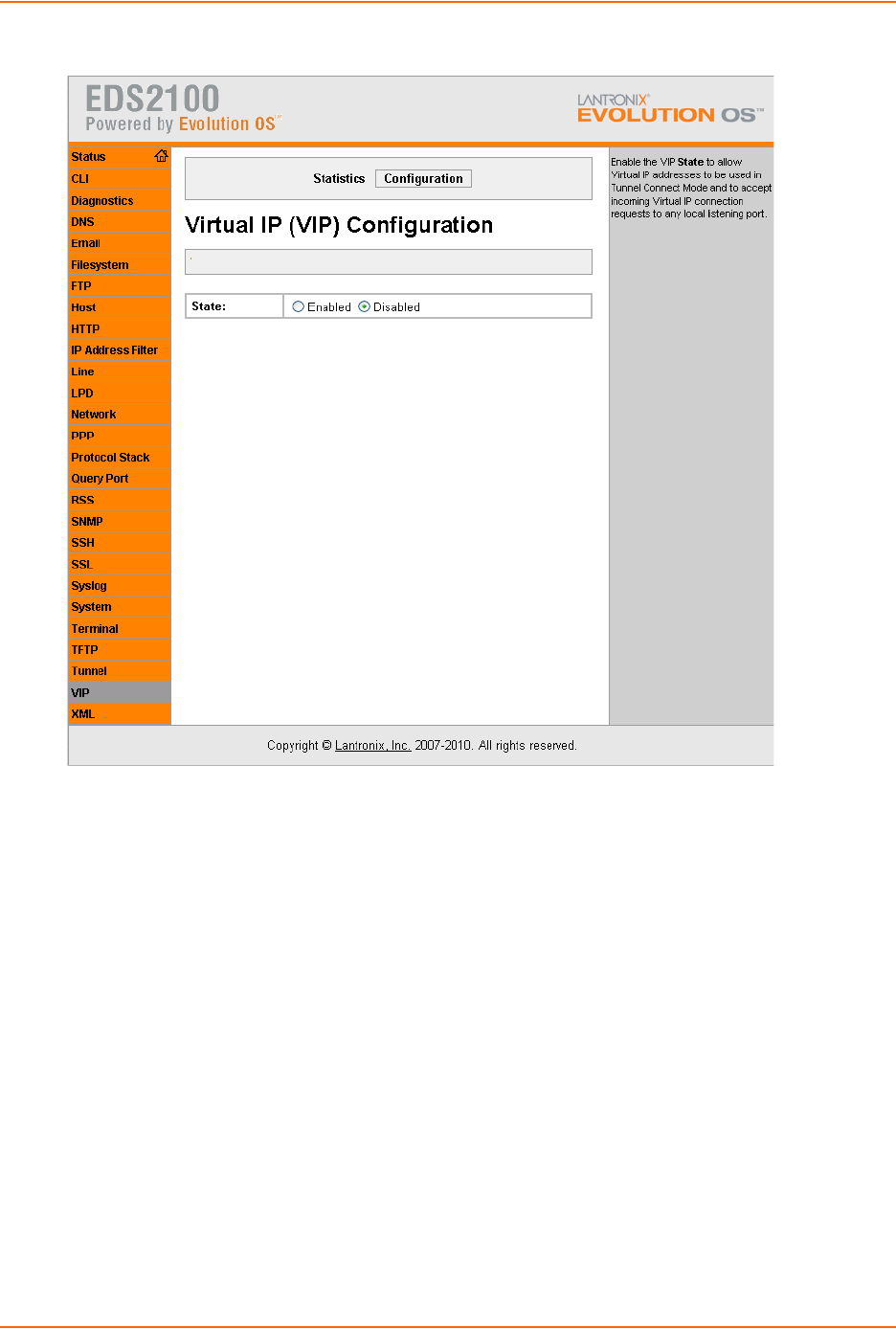

Figure 12-2 VIP Configuration Web Page

2. Click Enabled to use VIP addresses in Tunnel Accept Mode and Tunnel Connect Mode. The

default is disabled.

3. Click Submit.
