13: Maintenance and Diagnostics Settings

EDS1100/2100 User Guide 108

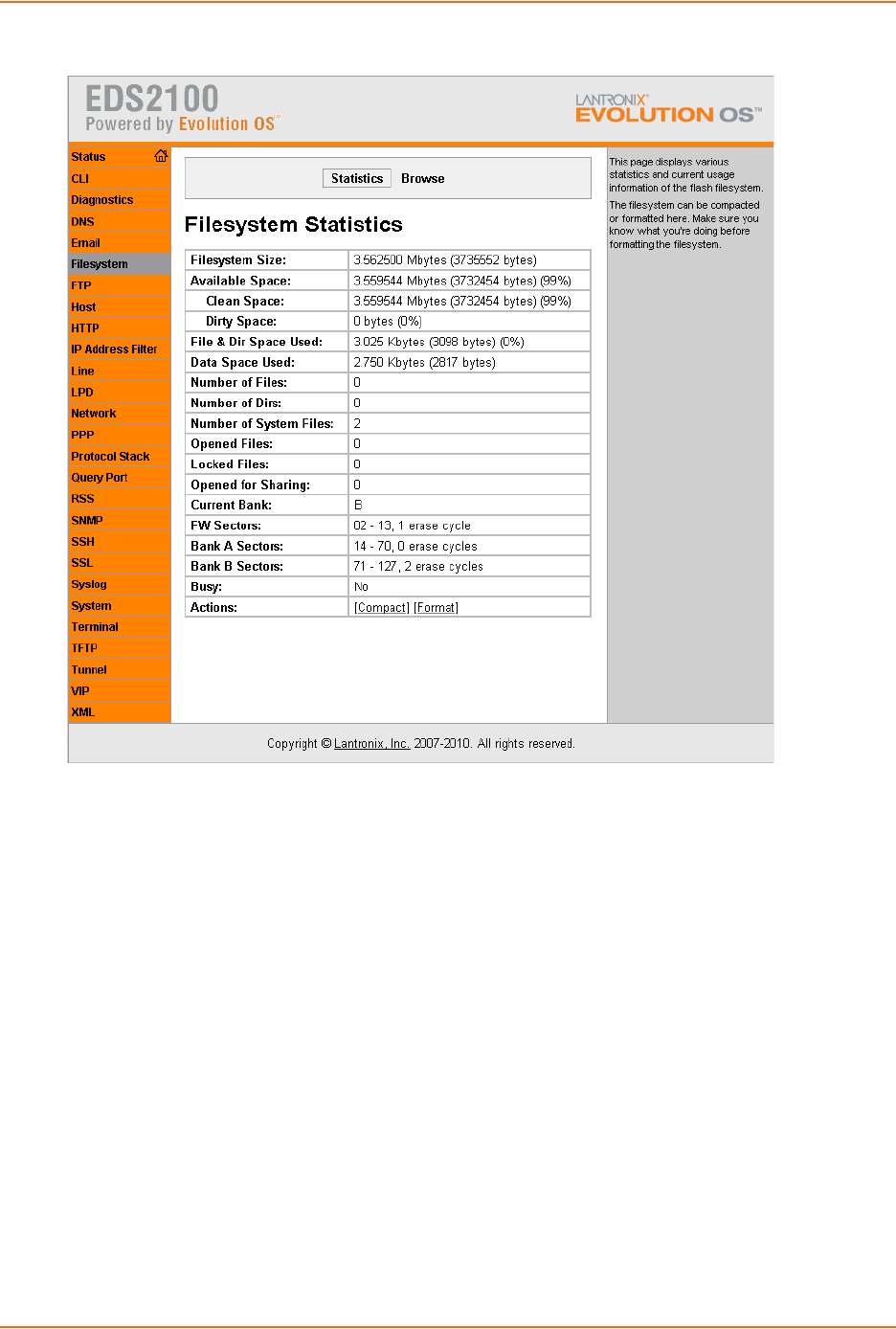

Figure 13-1 Filesystem Statistics Web Page

2. Click Compact in the Actions row to compact the files.

Note: The compact should not be needed under normal circumstances as the system

manages this automatically.

3. Back up all files before you perform Step 4, because all user files get erased in that step.

4. Cick Format in the Actions row. The configuration gets retained.

Filesystem Browser

To browse the filesystem, perform the following steps.

1. Click Filesystem > Browse. Figure 13-2 shows the page that displays.
