13: Maintenance and Diagnostics Settings

EDS1100/2100 User Guide 113

3. Click Submit.

ICMP

To set the ICMP, perform the following steps.

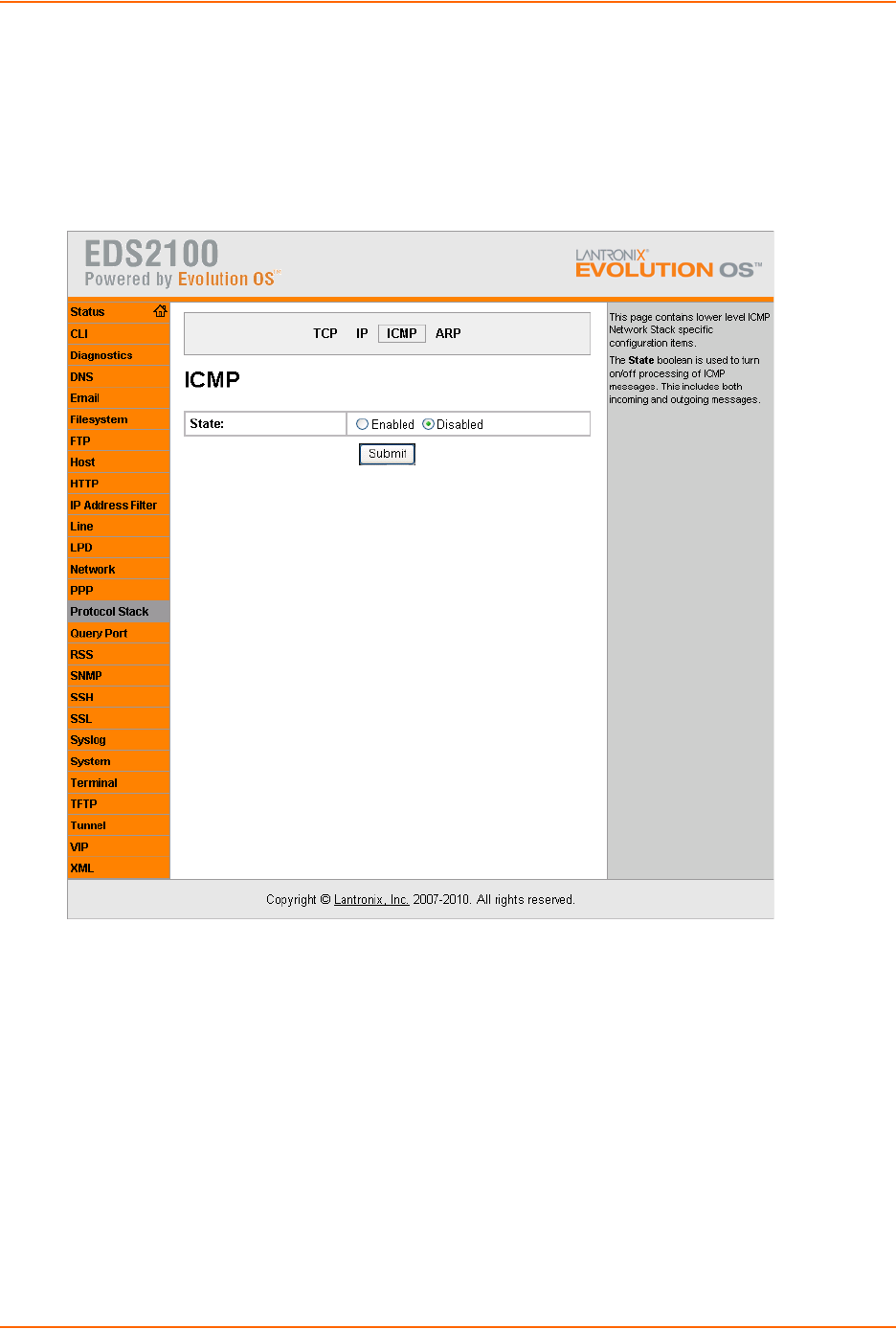

1. Click Protocol Stack < ICMP. Figure 13-5 shows the page that displays.

Figure 13-5 ICMP Web Page

2. Click Enabled.

3. Click Submit.

ARP

1. Click Protocol Stack > ARP. Figure 13-6 shows the page that displays.
