13: Maintenance and Diagnostics Settings
EDS1100/2100 User Guide 115
IP Address Filter
The IP address filter allows specified hosts and subnets to communicate with the EDS1100/2100.
Note: If using DHCP/BOOTP, ensure the DHCP/BOOTP server IP address is in the list.
To configure the IP address filter, perform the following steps.
1. Click the IP Address Filter on the Main Menu. Figure 13-7 shows the page that displays.

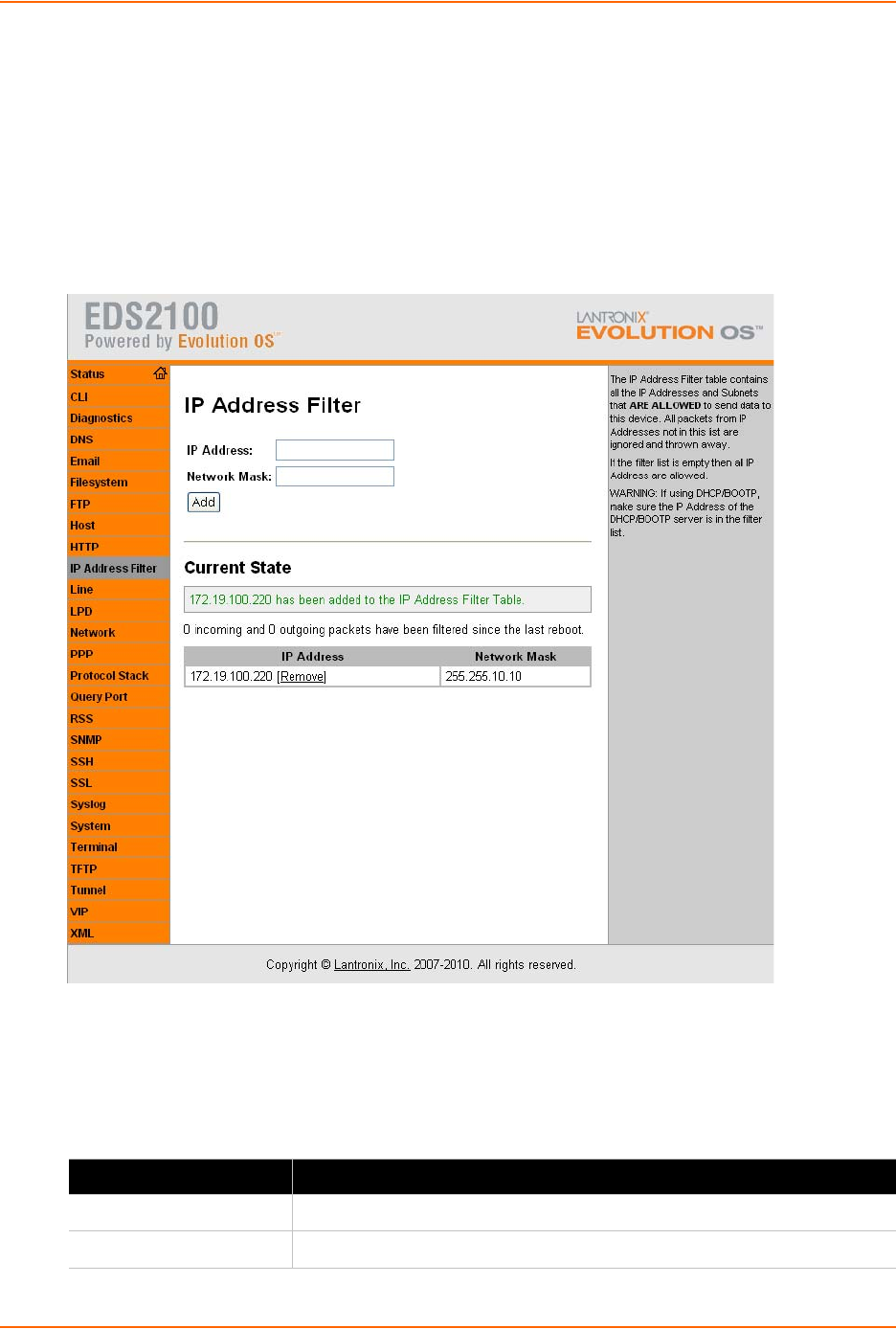

Figure 13-7 IP Address Filter Web Page
Note: Be aware not to assign your network IP address as “filtered.” You will have to
reset your system because the EDS1100/2100 has locked your network out.
2. Enter or modify the fields in Table 13-4
Table 13-4 IP Address Filter Fields
Field Description
IP Address Enter the IP address to add to the IP filter table.
Network Mask Enter the IP address’ network mask in dotted notation.
