13: Maintenance and Diagnostics Settings

EDS1100/2100 User Guide 118

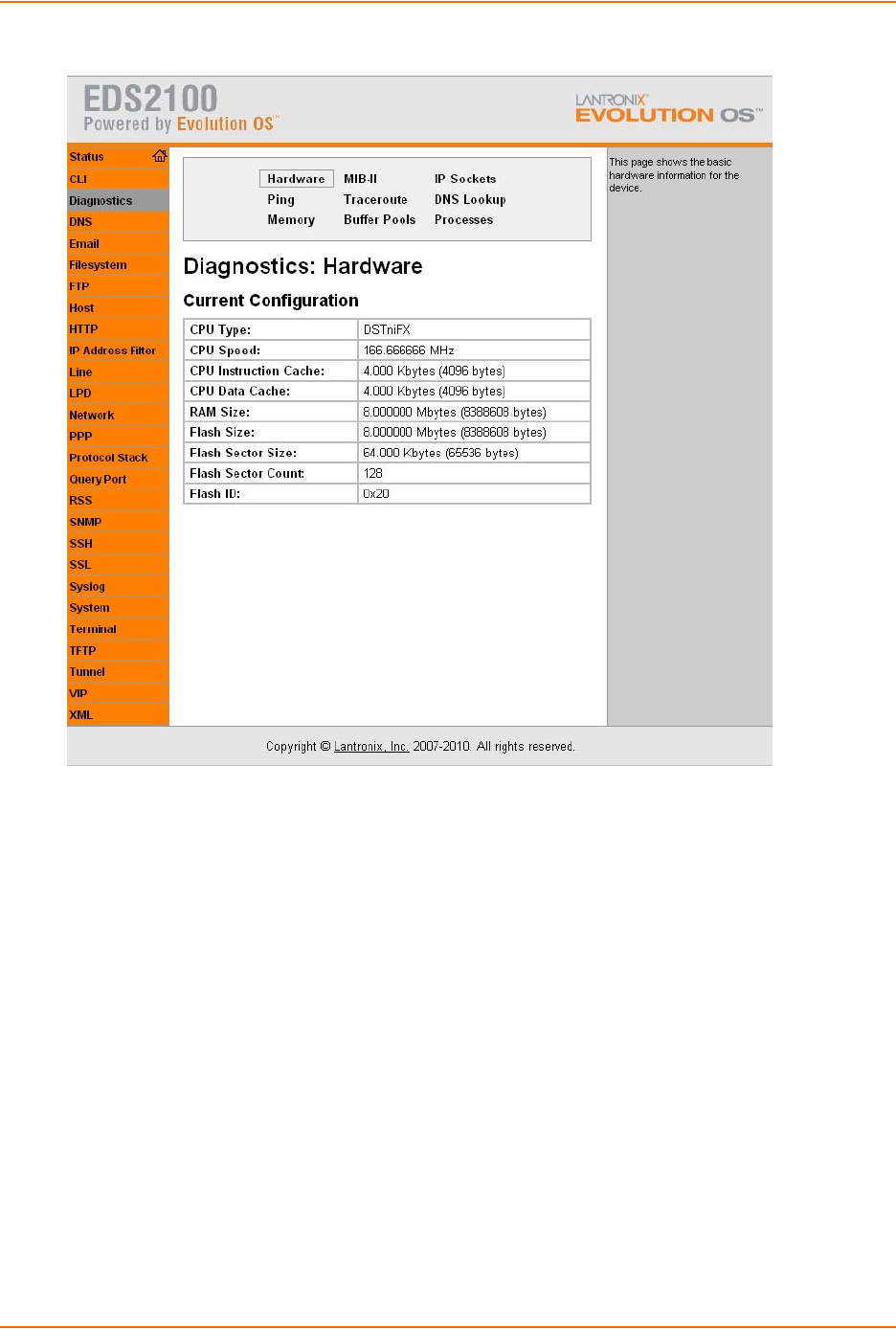

Figure 13-9 Hardware Web Page

MIB-II

The MIB-II Network Statistics page shows the available SNMP MIBs. To display MIB-II statistics,

perform the following steps.

1. Click Diagnostics > MIB-II at the top of the page. Figure 13-10 shows the page that displays.
