13: Maintenance and Diagnostics Settings

EDS1100/2100 User Guide 120

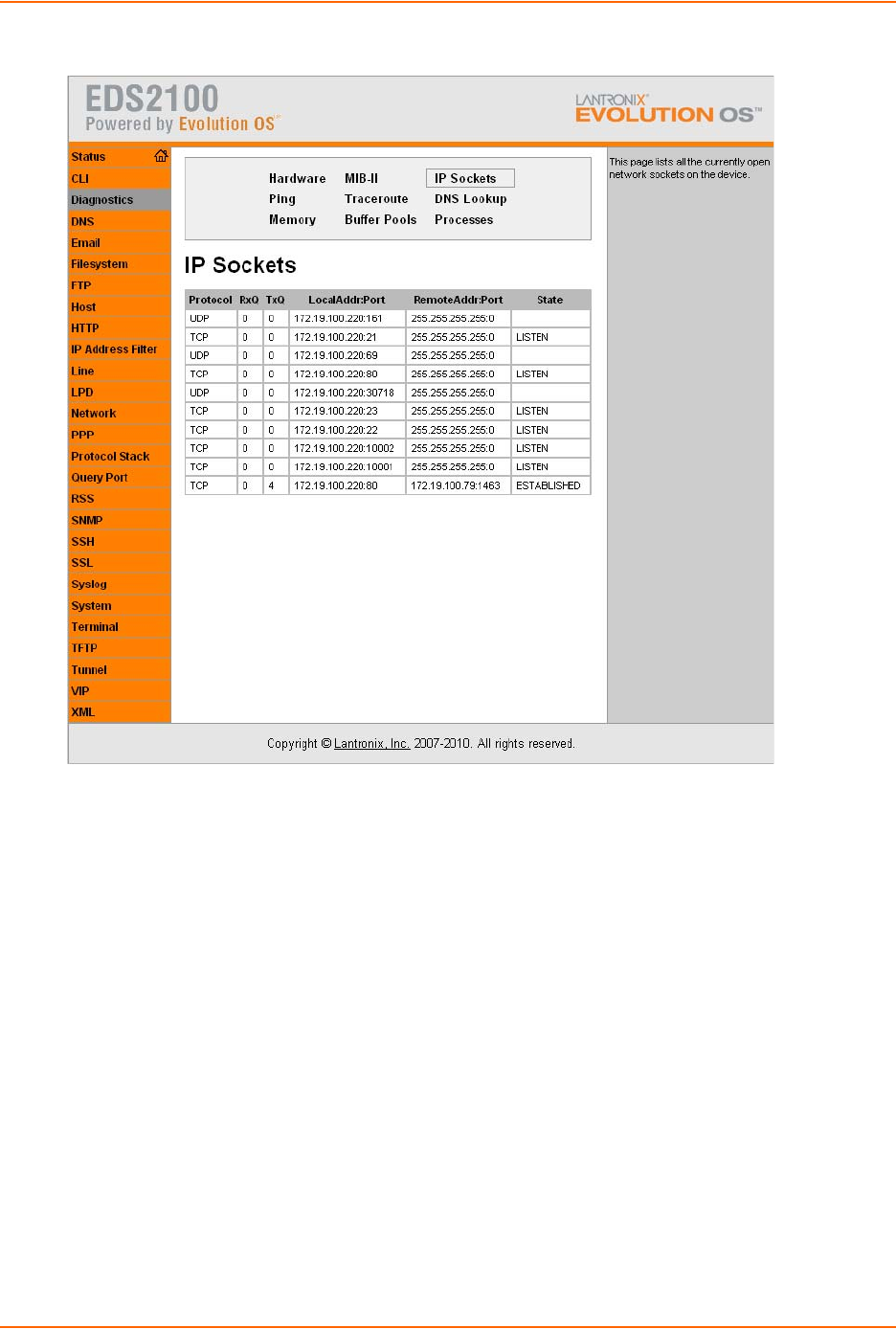

Figure 13-11 IP Sockets Web Page

Ping

To ping a remote device or computer, perform the following steps.

1. Click Diagnostics > Ping. Figure 13-12 shows the page that displays.
