13: Maintenance and Diagnostics Settings

EDS1100/2100 User Guide 122

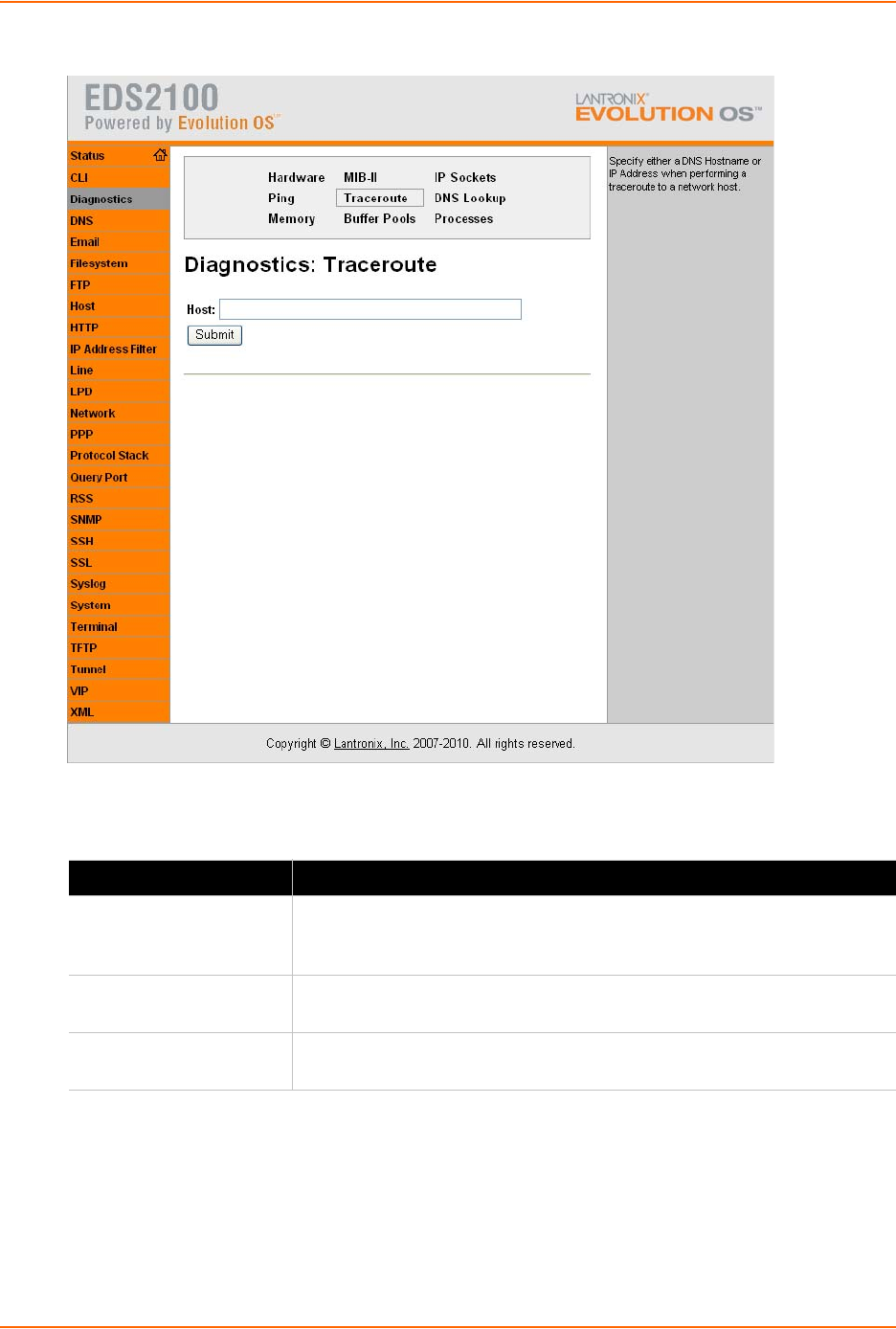

Figure 13-13 Traceroute Web Page

2. Enter or modify the fields in Table 13-6.

3. Click Submit.

DNS Lookup

You can specify a DNS Hostname for a forward lookup or an IP address for a reverse lookup. You

can also perform a lookup for a Mail (MX) record by prefixing a DNS Hostname with @.

Note: A DNS server must be configured for DNS Lookup to work.

Table 13-6 Traceroute Fields

Field Description

Host Enter the IP address or DNS hostname. This address is used to show the

path between it and the EDS1100/2100 when issuing the traceroute

command.

Count Enter the number of ping packets EDS1100/2100 should attempt to send to

the Host. The default is 3 attempts.

Timeout Enter the time, in seconds, for the EDS1100/2100 to wait for a response

from the host before timing out. The default is 5 seconds.
