13: Maintenance and Diagnostics Settings
EDS1100/2100 User Guide 124
Memory
The Memory web page displays total and available memory in bytes, along with the number of
fragments, allocated blocks, and memory status.To display memory statistics, perform the
following steps.
1. Click Diagnostics > Memory. Figure 13-15 shows the page that displays.

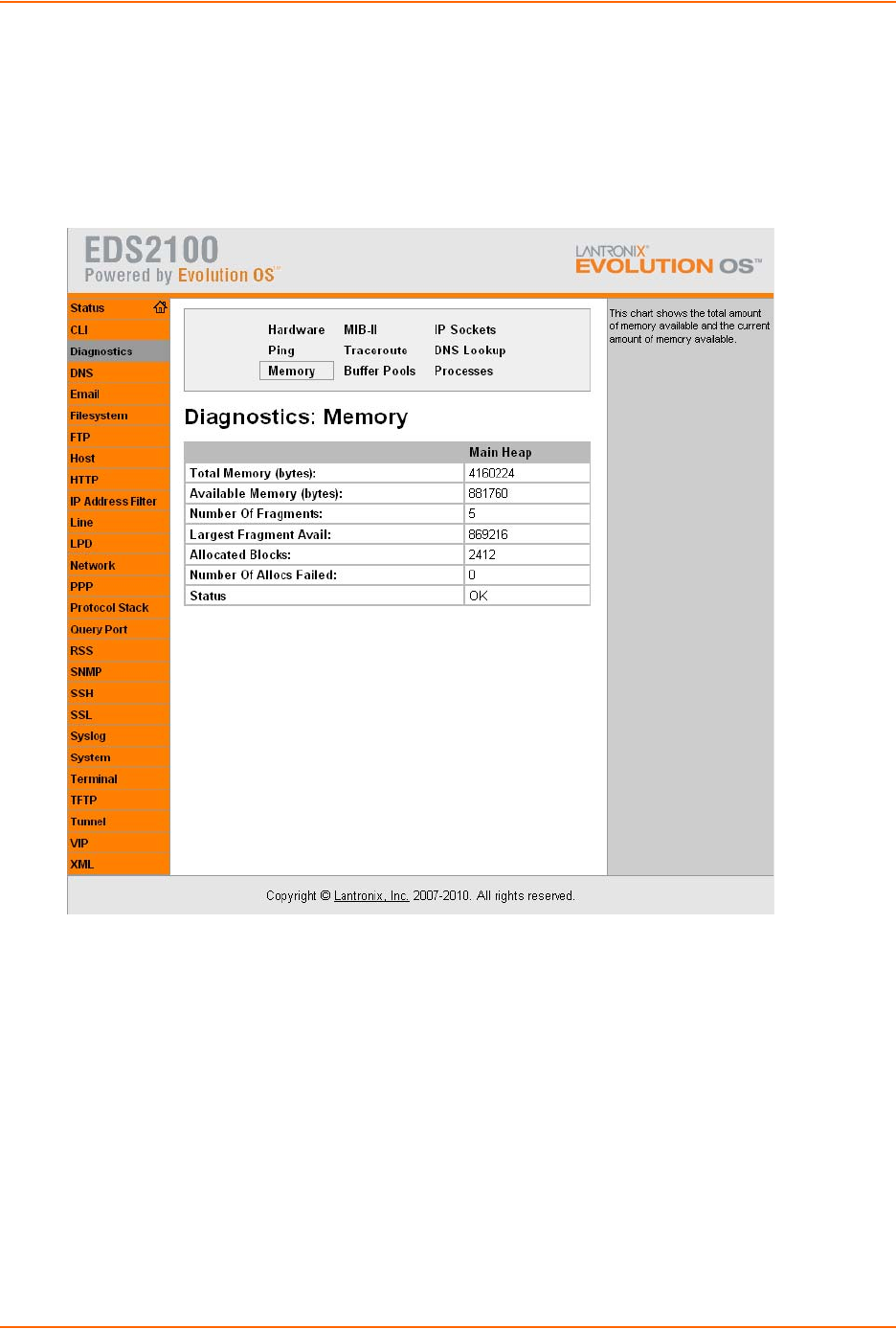

Figure 13-15 Memory Web Page
Buffer Pools
Private buffer pools ensure deterministic memory management. To display the buffer pools,
perform the following steps.
1. Click Diagnostics > Buffer Pools. Figure 13-16 shows the page that displays.
