EDS1100/2100 User Guide 129

14: Advanced Settings

This chapter describes advanced configuration of Email, CLI, and XML. It contains the following

sections:

 Email Statistics

 Email Configuration

 Command Line Interface

 XML Configuration

Email Statistics

The Email Statistics web page displays when you click Email from the Main Menu. It shows

statistics and current usage information about the email subsystem. When you transmit an email,

the transimission to the SMTP server gets logged and displayed in the bottom portion of the page.

To view the statistics, perform the following steps.

1. Click Email on the Main Menu. Figure 14-1 shows the page that displays.

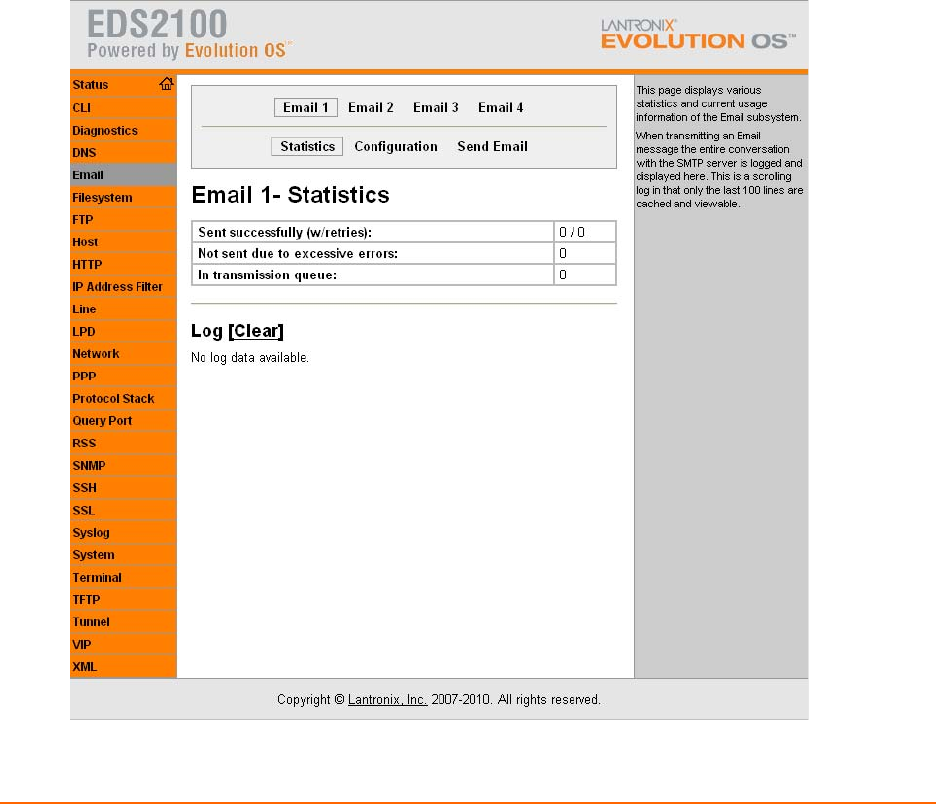

Figure 14-1 Email Statistics Web Page
