14: Advanced Settings

EDS1100/2100 User Guide 130

2. Click the Log [Clear

] link to clear the log.

Email Configuration

The EDS1100/2100 allows you to view and configure email alerts relating to the events occurring

within the system. To configure email settings, perform the following steps.

1. Click Email > Email 1 > Configuration. Figure 14-2 shows the page that displays.

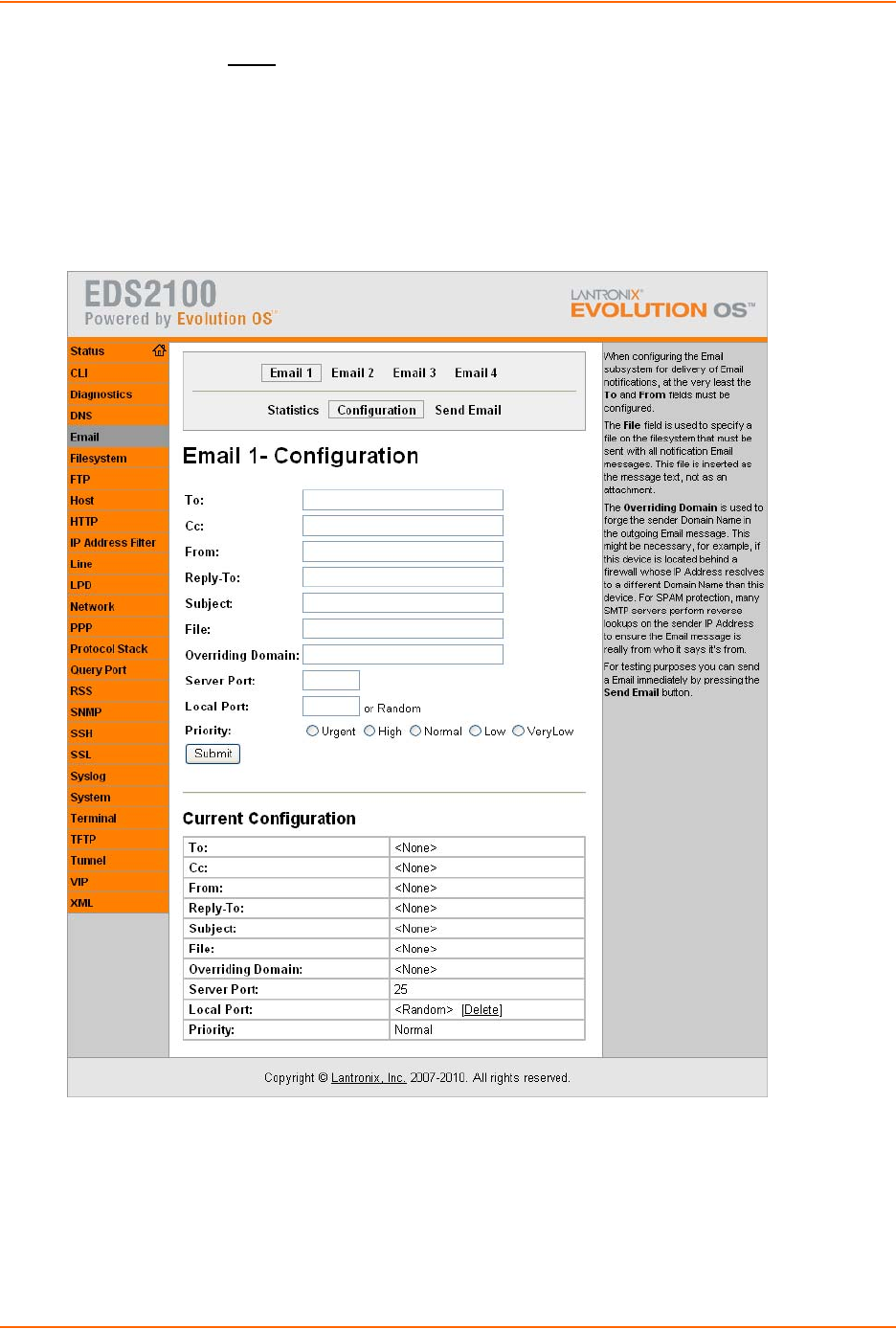

Figure 14-2 Email 1 Configuration Web Page
