EDS1100/2100 User Guide 146

16: Updating Firmware

Obtain the most up-to-date firmware and release notes for the EDS1100/2100 from the Lantronix

Web site (http://www.lantronix.com/) or by using anonymous FTP (ftp://ftp.lantronix.com/). To

upload new firmware, perform the following steps.

1. Click System in the Main Menu. Figure 16-1 shows the page that displays.

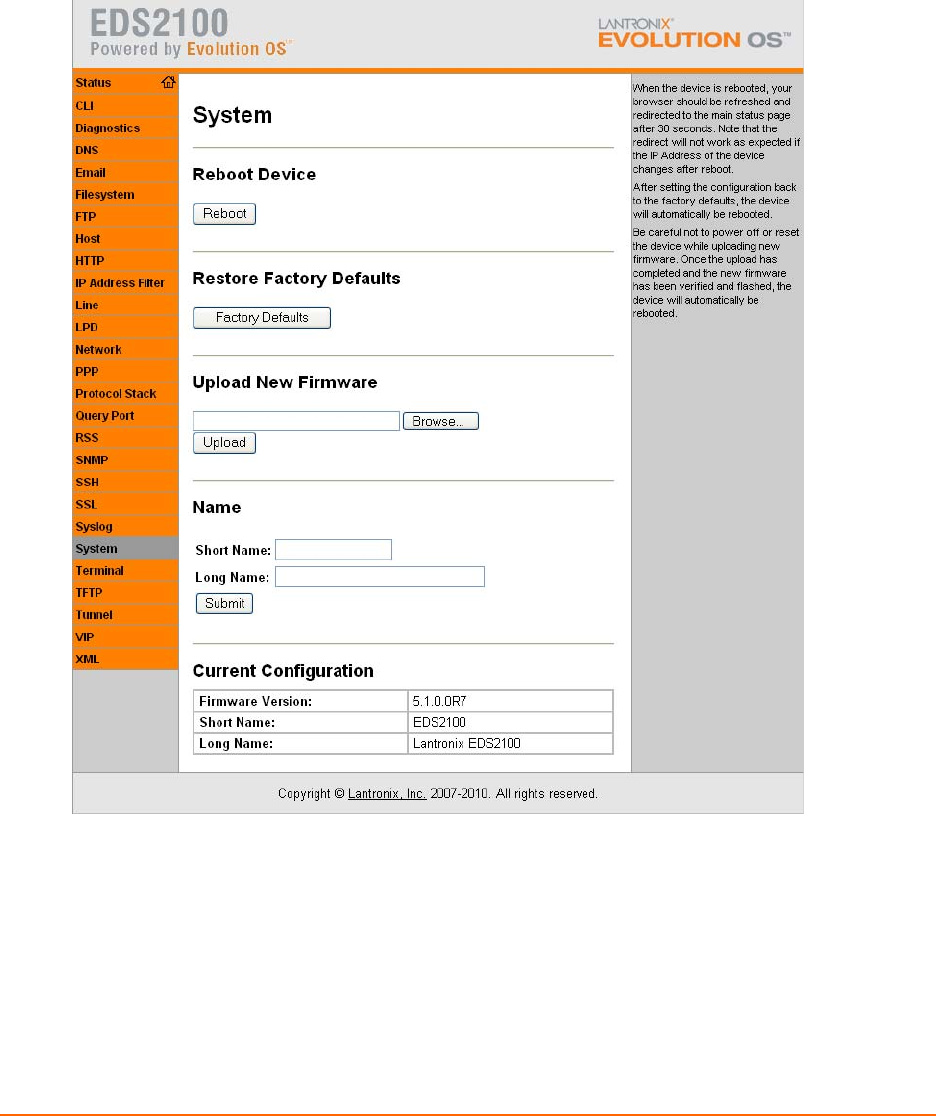

Figure 16-1 System Web Page

2. Click Browse in the Upload New Firmware section. The Choose File window displays.

3. Highlight the file and click Open.

4. Click Upload to install the firmware. The device automatically reboots on the installation of

new firmware.

Alternatively, firmware can be updated by sending the file to the EDS1100/2100 over a FTP or

TFTP connection.
