3: Installation of EDS1100
EDS1100/2100 User Guide 21

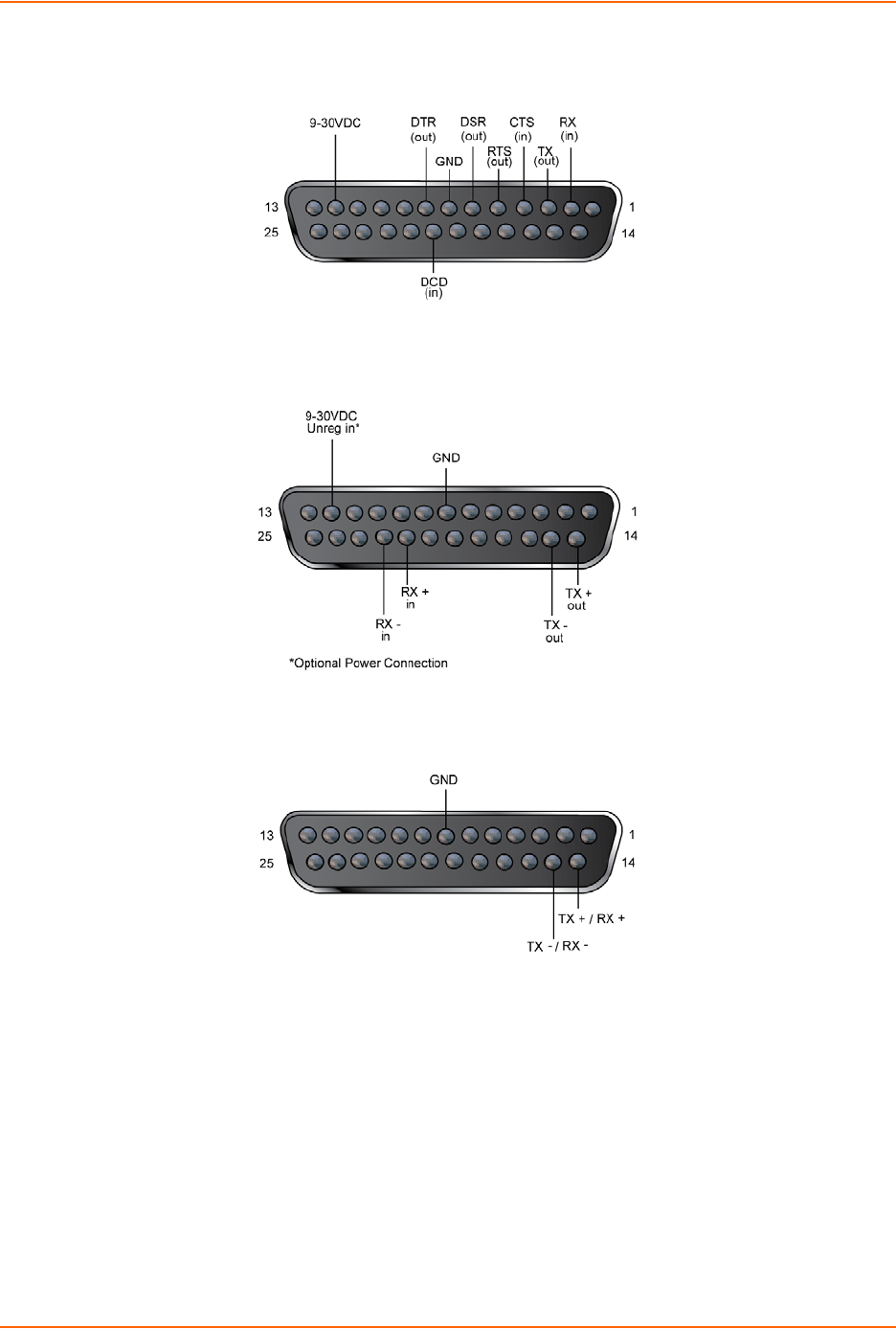

Figure 3-2 shows the RS-232 pinout configuration.
Figure 3-2 EDS1100 RS-232 Pinouts
Figure 3-3 shows the RS-422 (4-wire) pinout configuration.
Figure 3-3 EDS1100 RS-422 (4-wire) Pinouts
Figure 3-3 shows the RS-485 (2-wire) pinout configuration.
Figure 3-4 EDS1100 RS-485 (2-wire) Pinouts
