3: Installation of EDS1100

EDS1100/2100 User Guide 24

2. Connect an Ethernet cable between the EDS1100 RJ45 port and your Ethernet network.

3. Plug the EDS1100 into the power outlet by using the power supply that was included in the

packaging. The required input voltage is 9-30 VDC (center +) with 1.5W maximum power

required.

4. Power up the serial device.

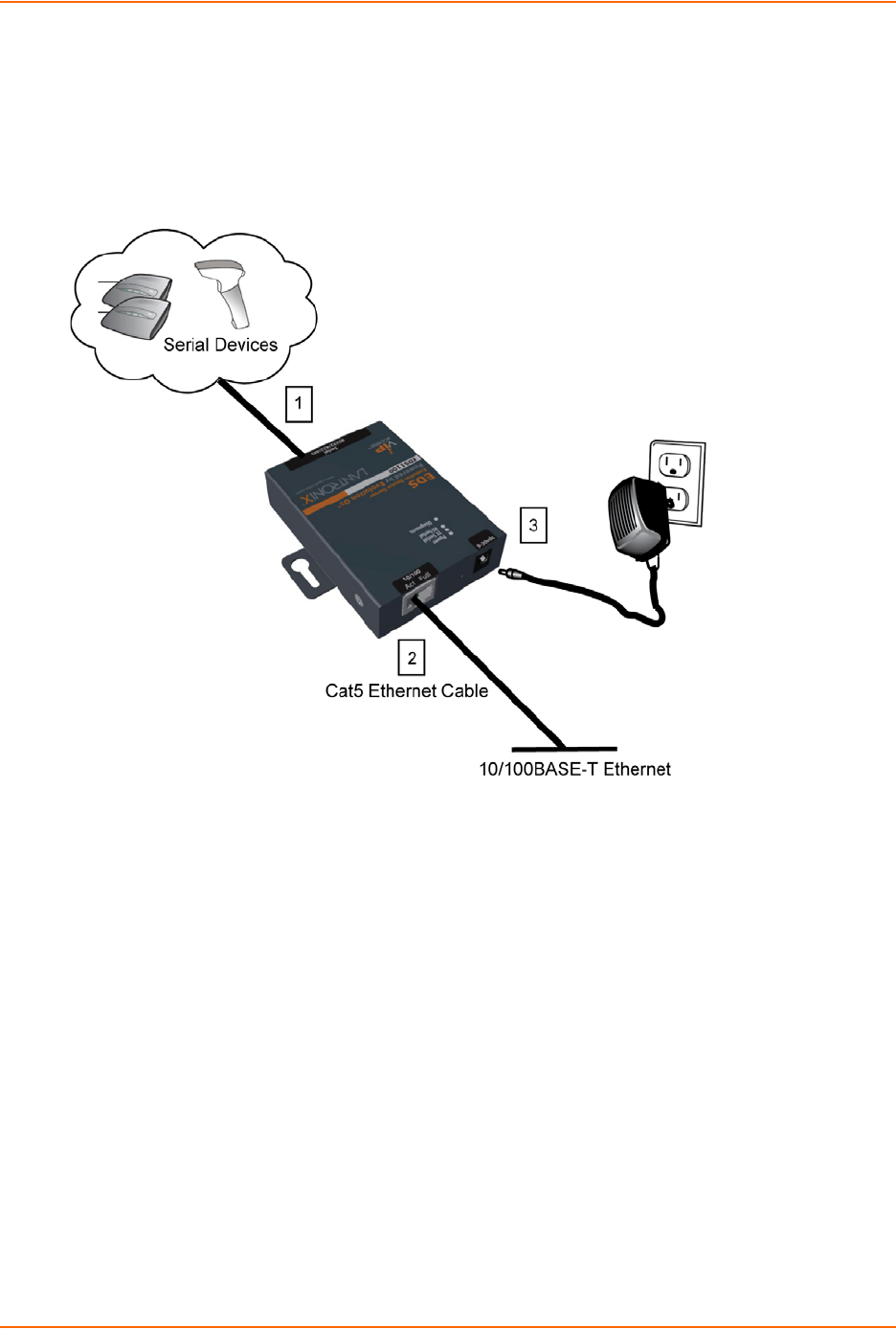

Figure 3-7 EDS1100 Connections
