8: Line and Tunnel Settings
EDS1100/2100 User Guide 51

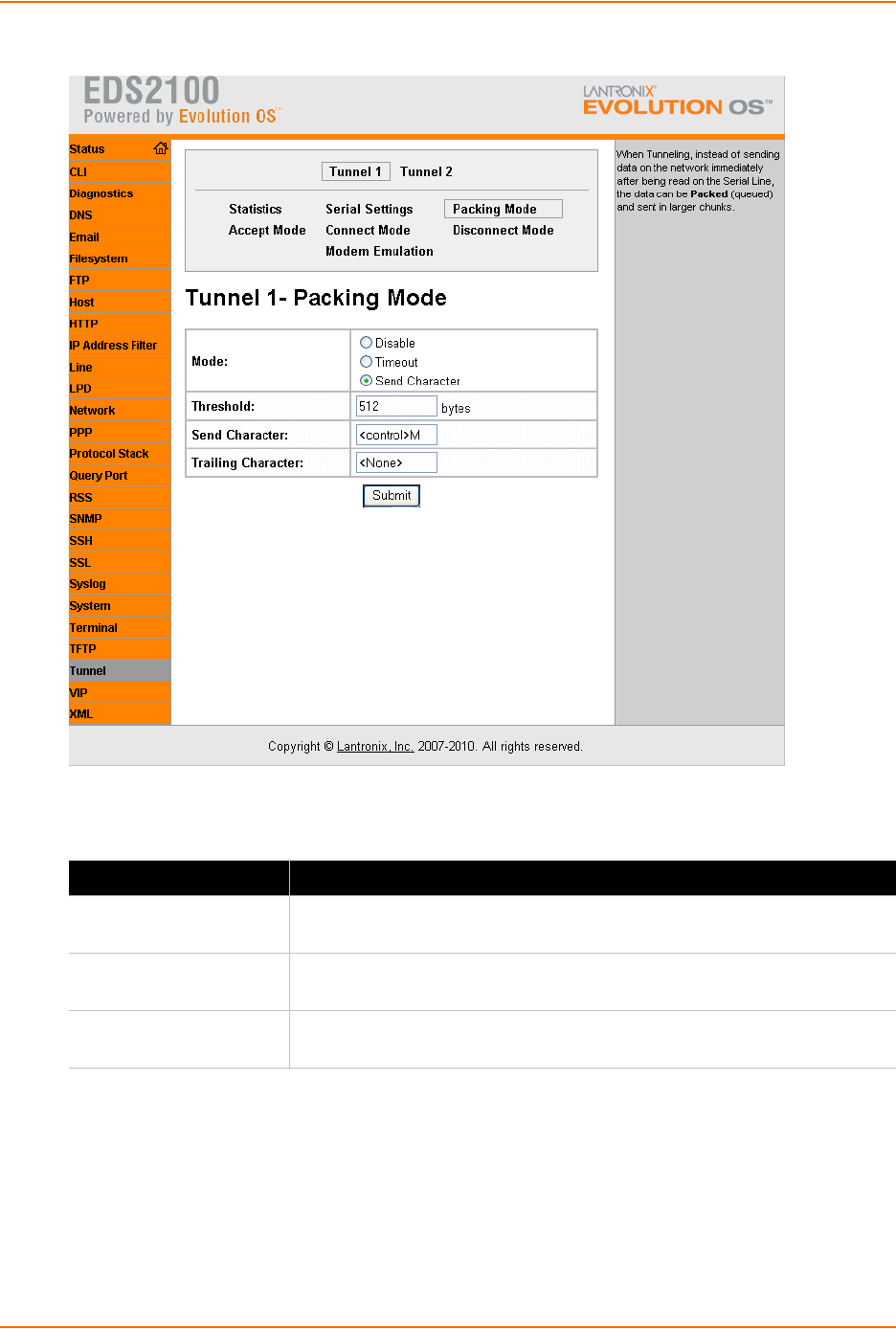

Figure 8-12 Tunnel 1 Packing Mode (Send Character)
6. Enter or modify the fields in Table 8-13.
7. Click Submit.
Accept Mode
In Accept Mode, the EDS1100/2100 waits for a connection from the network. The configurable
local port is the port the remote device connects to for this connection. There is no remote port or
address. The default local port is 10001 for serial port 1 and 10002 for serial port 2.
Table 8-13 Tunnel Packing Mode (Send Character) Fields
Field Description
Threshold Send the queued data when the number of queued bytes reaches the
threshold.
Send Character Enter the send character. Upon receiving this character, the EDS1100/2100
sends out the queued data.
Trailing Character Enter the trailing character. This character is sent immediately following the
send character.
