EDS1100/2100 User Guide 67

9: Terminal and Host Settings

This chapter describes how to view and configure terminals and hosts. It contains the following

sections:

 Terminal Settings

 Host Configuration

Terminal Settings

You can configure a terminal on a serial line or on the network by using the Terminal web page.

When you click Terminal from the Main Menu, Line 1 fields display. To go to the network or line 2,

click the Network or Line 2 button.

Network Terminal Configuration

To configure menu features applicable to CLI access via the network, perform the following steps.

1. Click Terminal > Network. Figure 9-1 shows the page that displays.

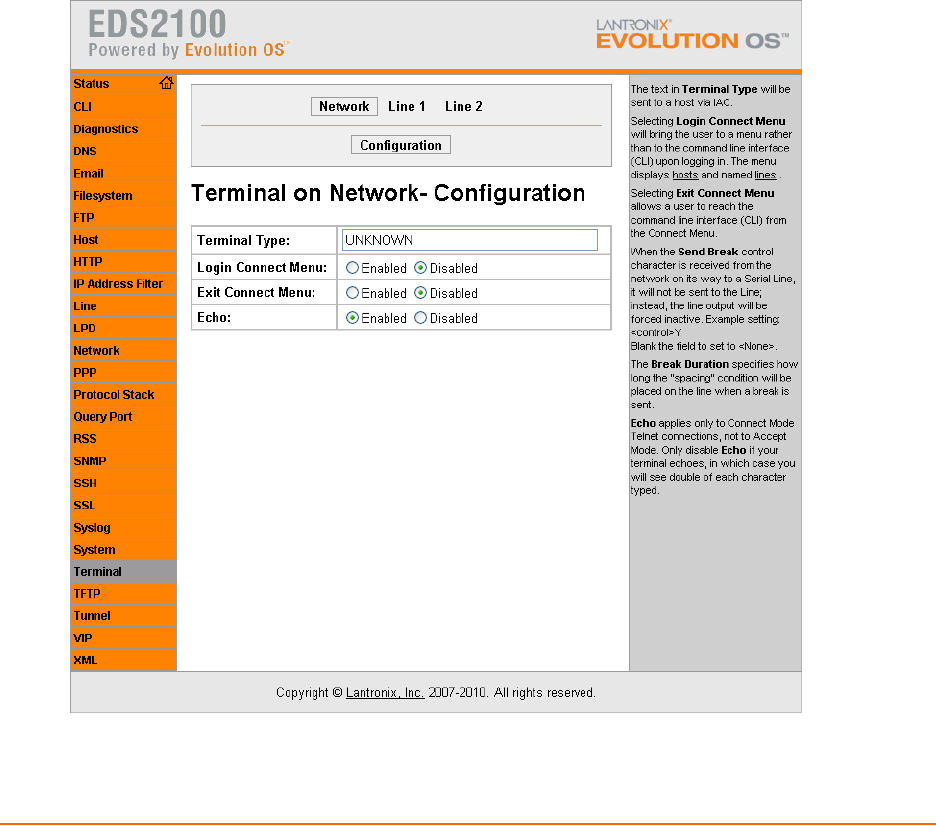

Figure 9-1 Terminal on Network Configuration Web Page
