10: Services Settings

EDS1100/2100 User Guide 87

LPD

The EDS1100/2100 acts as a print server if a printer gets connected to one of its serial ports.

Clicking the Line Printer Daemon (LPD) link in the Main Menu displays the LPD web page. The

LPD web page has three sub-menus for viewing print queue statistics, changing print queue

configuration, and printing a test page. Because the LPD lines operate independently, you can

specify different configuration settings for each.

LPD Statistics

To view LPD statistics, perform the following steps.

1. Click LPD on the Main Menu. Figure 10-11 shows the page that displays.

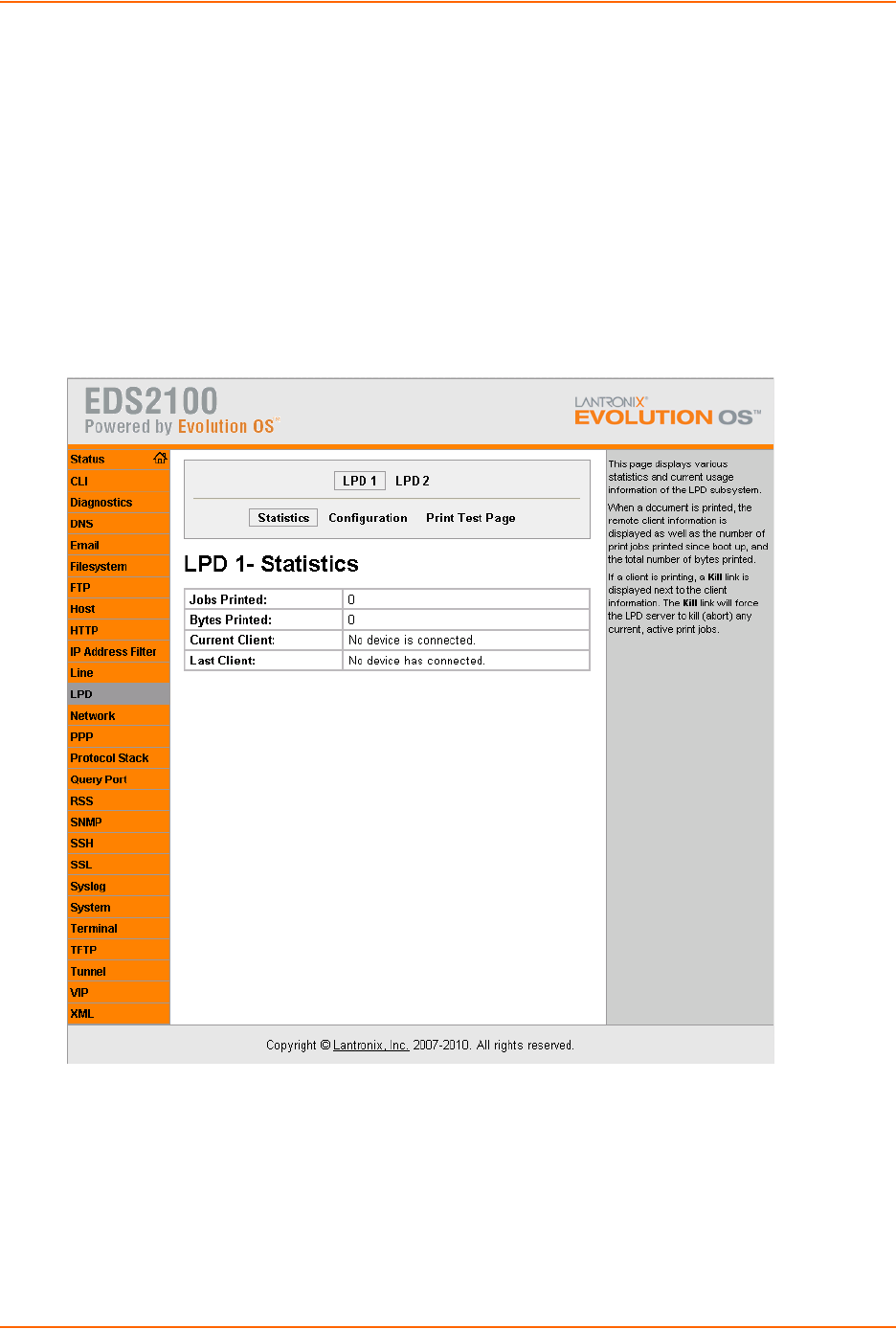

Figure 10-11 LPD Web Page

LPD Configuration

To configure LPD, perform the following steps.

1. Click LPD > Configuration. Figure 10-12 shows the page that displays.
