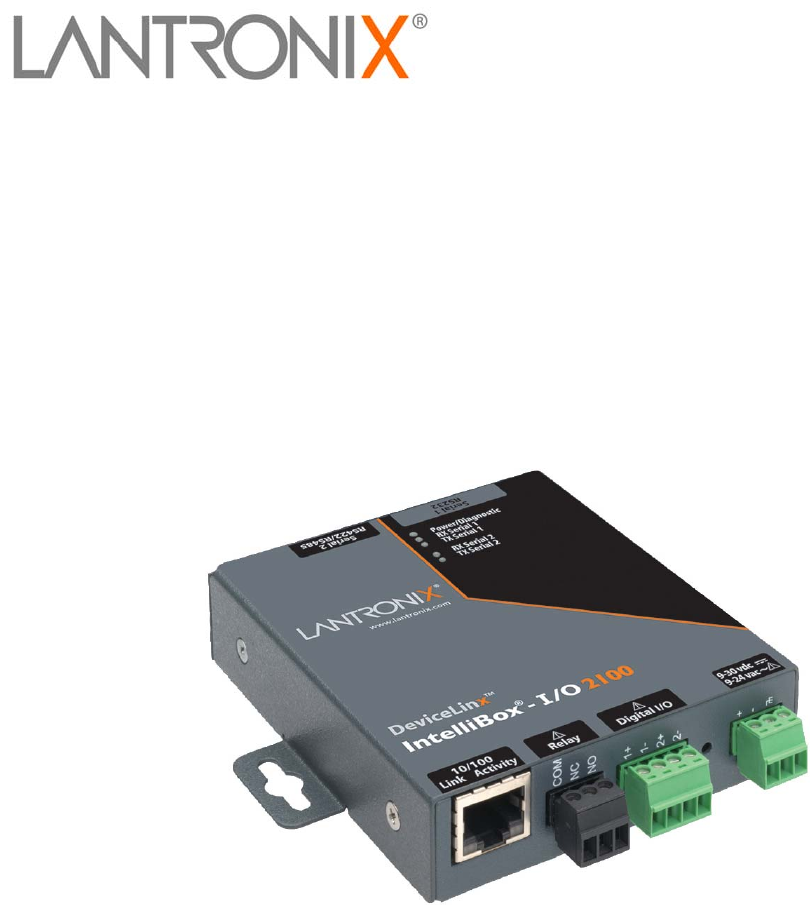

IntelliBox®-I/O 2100 Command Reference Part Number 900-475 Revision B March 2012
Copyright and Trademark © 2012 Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America. Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of The Open Group. Windows is a trademark of Microsoft Corporation.
Table of Contents List of Figures _____________________________________________________________ 4 List of Tables ______________________________________________________________ 5 1: About This Guide 6 Chapter Summaries ________________________________________________________ 6 Conventions ______________________________________________________________ 6 Additional Documentation ____________________________________________________ 7 2: Overview 8 XML Architecture and Device Control ______________________
List of Figures Figure 3-1 CLI Level Hierarchy ______________________________________________________ 12 Figure 3-2 Login Level Commands ___________________________________________________ 12 Figure 3-3 Enable Level Commands__________________________________________________ 13 Figure 4-1 DTD for XCRs __________________________________________________________ 14 Figure 4-2 XML Example __________________________________________________________ 15 Figure 4-3 XML Group Example __________________________________
List of Tables Table 4-8 XCR Groups ____________________________________________________________ 20 Table 4-9 XSR Groups and Items ____________________________________________________ 34 Table 5-1 Commands and Levels ____________________________________________________ 49 IntelliBox-I/O 2100 Command Reference 5
1: About This Guide This guide describes how to configure the IntelliBox-I/O 2100 using the Command Line Interface (CLI) and/or Extensible Markup Language (XML). It is written for software developers and system integrators. Chapter Summaries This table lists and summarizes each chapter and appendix. Chapter Summary Chapter 2: Overview Gives an overview of CLI and XML. Chapter 3: Command Line Interface Lists commands and describes how to use CLI to configure the IntelliBox.
1: About This Guide Additional Documentation Visit the Lantronix web site at www.lantronix.com/support/documentation for the latest documentation and the following additional documentation. Document Description IntelliBox-I/O 2100 User Guide Information about the IntelliBox hardware, testing the IntelliBox, and integrating the IntelliBox device into your product.
2: Overview Evolution OS™ is the Lantronix cutting-edge operating system that supports three convenient configuration methods: Web Manager, Command Line Interface (CLI), and Extensible Markup Language (XML). For more information about the Web Manager, see the IntelliBox-I/O 2100 User Guide at the Lantronix website. XML Architecture and Device Control XML is a fundamental building block for the future growth of Machine-to-Machine (M2M) networks.
3: Command Line Interface This chapter describes accessing the IntelliBox by using Telnet, SSH, or serial ports to configure the IntelliBox, navigating the Command Line Interface (CLI), typing keyboard shortcuts, and moving between the levels.
3: Command Line Interface To configure the Lantronix device server locally using a serial port, connect a terminal or a PC running a terminal emulation program to one of the device server's serial ports. Configure the terminal for 9600 baud, 8-bit, no parity, 1 stop bit, and no flow control. 1. Power off the device. 2. Press and hold down the exclamation point (!) key. 3. Power on the device. After about ten seconds, the exclamation point will display on the terminal or PC screen. 4.
3: Command Line Interface Using Keyboard Shortcuts and CLI One useful shortcut built into Evolution OS™ is that the complete text of a command does not have to be entered to issue a command. Typing just enough characters to uniquely identify a command, then hitting enter, can be used as a short cut for a command. For example, at the enable level, "sh" can be used for the "show" command. Tab Completion is also available.
3: Command Line Interface Figure 3-1 CLI Level Hierarchy (login) enable chem configure arp device cli filesystem eventtrak (number) io match task line ftp lpd host ssh http ssl icmp tunnel accept if 1 connect ip disconnect ip filter modem lpd packing modbus serial query port ethernet link rss snmp syslog tcp terminal tftp udp Commands at the login level, shown in Figure 3-2, do not affect current configurat
3: Command Line Interface To configure the , you must be in the enable level and any of its sub-levels. Figure 3-3 shows the enable level commands.
4: Configuration Using XML The device server provides an Extensible Markup Language (XML) interface that you can use to configure device server devices. Every configuration setting that can be issued from the device server Web Manager and CLI can be specified using XML. The device server can import and export configuration settings as an XML document known as an XML Configuration Record (XCR). An XCR can be imported or exported via the CLI, a Web browser, FTP, or the device server filesystem.
4: Configuration Using XML Notes: The name for each (specified with the name attribute) is the group name listed in the Web Manager XCR groups or with the “xcr list” CLI command. See the IntelliBox-I/O 2100 User Guide for more information about the Web Manager XCR groups. An empty or missing element in each present clears the setting to its default. Quick Tour of XML Syntax Declaration The first line,
4: Configuration Using XML Record, Group, Item, and Value Tags A is a logical grouping of configuration parameters and must contain one or more elements. It must have a name attribute and may have an instance attribute. A is a specific grouping of configuration parameters relevant to its parent group. An item takes the name attribute and must contain one or more value elements.
4: Configuration Using XML Figure 4-5 XML Example of Multiple Items john.doe@somewhere.com> evolution@intellibox.com> Figure 4-6 XML Example with Multiple Groups
4: Configuration Using XML settings specified. This can be done on any level, including the root. Special tags in the XML allow for providing root and enable level passwords so that this can also be done at the password prompt. Web browser—Web Manager can be used to import and export an XCR to the device server file system. It can also be used to import an XCR from an external source such as your local hard drive.
4: Configuration Using XML The following syntax can be used to export configurations to a file on the device server’s file system: xcr export xcr export The same guidelines above regarding importing configurations also apply to exporting configurations. If no groups are specified, then the export command will export all configuration settings to the file. If instances are specified after the groups, only those group instances are written.
4: Configuration Using XML The “xml paste passwords” name is used with the “passwords” name and “cli login” and “cli enable level” values to specify the passwords to use when the device has been configured with password protection. The password value is clear text. To protect the password, establish an SSH connection to the device server. Figure 4-7 shows an example.
4: Configuration Using XML Group Name Group Item cli login password Value is SECRET, hidden from user view. enable level password Value is SECRET, hidden from user view. quit connect line Accepts text containing control characters, for example, <control> A represents control-A Default: L device Value Name Value Options Additional Information cpu speed short name long name email (Attribute of “instance” is a number.) serial number Read only. firmware version Read only.
4: Configuration Using XML Group Name Group Item Value Name event trak (Attribute of “instance” is a number.) match (Attribute of “instance” is a number.) string Value Options Additional Information wildcard timeout milliseconds task (Attribute of “instance” is a number.) case sensitive no, yes rss trace matches <None>, ...
4: Configuration Using XML Group Name Group Item Value Name Value Options event trak (Attribute of “instance” is a number.) step (Attribute of “instance” is a number.) name <None>, ...
4: Configuration Using XML Group Name Group Item Value Name event trak (Attribute of “instance” is a number.) step (Attribute of “instance” is a number.) (continued) upon advance clear receive buffer (continued) Value Options Additional Information enable, disable Default: enable upon advance send line upon advance send data upon advance send file name upon advance send trigger upon advance rss upon advance rss title ftp server host (Attribute of “instance” is a number.
4: Configuration Using XML Group Name Group Item http server Value Name Value Options Additional Information state enable, disable Default: enable port <None>, ... Default: 80 secure port <None>, ... Default: 443 secure protocols ssl3, tls1.0, tls1.1 May contain zero, one, or more of the values, separated by commas. Default: ssl3, tls1.0, tls1.
4: Configuration Using XML Group Name Group Item interface (Attribute of “instance” is eth0”) Value Name Value Options Additional Information bootp enable, disable Default: disable dhcp enable, disable Default: enable ip address <None>, ... Accepts an IP address and mask as either: (1) IP address only (192.168.1.1) gets a default mask, (2) CIDR (192.168.1.1/24), or (3) Explicit mask (192.168.1.1 255.255.255.0). default gateway <None>, ...
4: Configuration Using XML Group Name Group Item line (Attribute of “instance” is a number.) name Value Name Value Options Additional Information interface rs232, rs485 halfduplex, rs485 fullduplex Default: termination enable, disable Default: disable state enable, disable Default: depends on instance protocol none, tunnel, ppp, lpd Default: baud rate lpd (Attribute of “instance” is a number.
4: Configuration Using XML Group Name Group Item rss Value Name Value Options Additional Information feed enable, disable Default: disable persist enable, disable Default: disable max entries serial command mode (Attribute of “instance” is a number.) Default: 100 mode echo serial string serial string signon message wait time snmp state enable, disable Default: enable read community Value is SECRET, hidden from user view.
4: Configuration Using XML Group Name Group Item ssh client delete known hosts Value Name known host delete name known host (Attribute of “instance” is required for the known host name) public rsa key Additional Information enable, disable If enabled, deletes any existing hosts before adding “known host”. Specify the known host to delete.
4: Configuration Using XML Group Name Group Item Value Name Value Options Additional Information ssl RSA certificate certificate Enter the text of the certificate. private key Enter the text of the private key. If configured and not exporting secrets, exports only a placeholder. DSA certificate certificate Enter the text of the certificate. private key Enter the text of the private key. If configured and not exporting secrets, exports only a placeholder.
4: Configuration Using XML Group Name Group Item terminal (Attribute of “instance” is either “network” or a number.) terminal type tftp server tunnel accept (Attribute of “instance” is a number.
4: Configuration Using XML Group Name Group Item tunnel connect connect mode Value Name Value Options Additional Information disable, always, any character, start character, modem control asserted, modem emulation Default: disable local port <Random>, ... Default: protocol tcp, udp, ssh, telnet, tcp aes, udp aes, ssl Default: tcp (Attribute of “instance” is a number.) remote address remote port ssh username Username must correspond to a configured ssh client user.
4: Configuration Using XML Group Name Group Item tunnel modem (Attribute of “instance” is a number.
4: Configuration Using XML Group Name Group Item Value Name xml import control restore factory configuration Value Options delete cpm groups cpm group delete Additional Information enable, disable name delete http authentication uris http authentication uri delete enable, disable name Deletes existing http authentication uris before importing new ones. Deletes the specified http authentication uri. reboot enable, disable Reboots after importing.
4: Configuration Using XML Group Name Item Name Value Name device product info product type Valid Values serial number firmware version uptime permanent config saved unsaved email (Attribute of “instance” is a number.) success sent sent with retries failed queued email log entry (Attribute of “instance” is a number.) ethernet driver time log buffer headers (Within group “buffer pool”.
4: Configuration Using XML Group Name Item Name Value Name Valid Values filesystem (continued) banks current A B firmware begin firmware end firmware erase cycles bank a begin bank a end bank a erase cycles bank b begin bank b end bank b erase cycles ftp status running inactive admin username admin connections rejected accepted last client ip address port hardware cpu type speed hardware id hardware id memory flash size ram size http state enabled disabled ports max timeout max b
4: Configuration Using XML Group Name Item Name Value Name icmp in messages Valid Values messages discarded errors destination unreachable time exceeded messages parameter problems source quench requests redirects ping requests ping replies timestamp requests timestamp replies address mask requests address mask replies out messages messages discarded errors destination unreachables time exceeded messages parameter problems source quench requests redirects ping requests ping replies timestamp reques
4: Configuration Using XML Group Name Item Name Value Name Valid Values interface generic status no link (Attribute of “instance” is “eth0”.) link up disabled unknown errors (error text) none ethernet (Present only for eth0.
4: Configuration Using XML Group Name Item Name Value Name interface transmit octets (Attribute of “instance” is “eth0”.) (Continued.
4: Configuration Using XML Group Name Item Name ip state Value Name Valid Values enabled disabled default ttl forwarded route discards in receives header errors address errors unknown protocols discarded delivered out requests discards discards no route reassembly timeout needed success failures fragments needed failures success ip sockets ip socket protocol UDP TCP rx queue tx queue local address local port remote address remote port state IntelliBox-I/O 2100 Command Reference 40
4: Configuration Using XML Group Name Item Name Value Name line receiver bytes (Attribute of “instance” is a number.) Valid Values breaks parity errors framing errors overrun errors no receive buffer errors queued bytes flow control n/a stop go transmitter bytes breaks queued bytes flow control n/a stop go line levels cts asserted not asserted rts asserted not asserted dsr asserted not asserted dtr asserted not asserted line (within group “buffer pool”.
4: Configuration Using XML Group Name Item Name line (With no instance.) (Within group “line” with instance.) state Value Name Valid Values enable disable protocol none ppp tunnel baud rate Any value from 300 to 230400. parity even none odd data bits 7 8 stop bits 1 2 flow control hardware none software xon char xoff char lpd jobs printed (Attribute of “instance” is a number.
4: Configuration Using XML Group Name Item Name Value Name modbus local slave totals pdus in Valid Values pdus out exceptions modbus tcp server state down (Attribute of “instance” is “permanent” or “additional”.) up binding no port local port totals uptime pdus in pdus out connections processes process cpu % (Attribute of “instance” is a number.
4: Configuration Using XML Group Name Item Name Value Name sessions line baud (Attribute of “instance” is a number.) parity Valid Values none even odd data bits 7 8 stop bits 1 2 flow control none hardware software ssh local port (Attribute of “instance” is the ssh session number.) remote ip address remote port duration telnet local port (Attribute of “instance” is the telnet session number.
4: Configuration Using XML Group Name Item Name Value Name Valid Values tcp retransmission algorithm vanj timeout minimum timeout maximum connections maximum open active open passive failed resets established errors in resets in out segments in out retransmitted telnet state active waiting disabled local port totals uptime bytes in bytes out last connection local ip address local port remote ip address remote port tftp state enabled, disabled creation enabled, disabled downloaded
4: Configuration Using XML Group Name Item Name Value Name tunnel aggregate completed connects (Attribute of “instance” is a number.) Valid Values completed accepts disconnects dropped connects dropped accepts octets from serial octets from network connect connection time accept connection time connect dns address changes connect dns address invalids current connect connections (As many as present.
4: Configuration Using XML Group Name Item Name tunnel modem (within group “tunnel”) echo commands Value Name Valid Values enable disable verbose response enable disable response type text numeric error unknown commands disable enable incoming connection disabled automatic manual udp in unknown ports in datagrams in errors out datagrams xsr out bytes lines elements errors IntelliBox-I/O 2100 Command Reference 47
5: Commands and Levels Click the level in the tree structure and it will take you to the command list for that level. root • enable (enable) • chem 1 (chem:1) • chem 2 (chem:2) • chem 3 (chem:3) • chem 4 (chem:4) • configure (config) • arp (config-arp) • cli (config-cli) • eventtrak 1 (config-eventtrak:1) • match 1 (config-eventtrak-match:1.1) • match 2 (config-eventtrak-match:1.2) • match 3 (config-eventtrak-match:1.3) • task 1 (config-eventtrak-task:1.1) • task 2 (config-eventtrak-task:1.
5: Commands and Levels • • • • • • • line 1 (line:1) line 2 (line:2) lpd (lpd) ssh (ssh) ssl (ssl) tunnel 1 (tunnel:1) • accept (tunnel-accept:1) • output select (tunnel-accept-output_select:1) • connect (tunnel-connect:1) • output select (tunnel-connect-output_select:1) • disconnect (tunnel-disconnect:1) • modem (tunnel-modem:1) • packing (tunnel-packing:1) • serial (tunnel-serial:1) tunnel 2 (tunnel:2) • accept (tunnel-accept:2) • output select (tunnel-accept-output_select:2) • connect (tunnel-connect:2
5: Commands and Levels block network enable Discards all data coming in from the accept mode tunnel before forwarding block serial disable Forwards (tunnels) serial data in accept mode tunneling. block serial enable Discards all data coming in from the serial interface before forwarding clrscrn Clears the screen. default accept mode Restores the default accept mode as "always". default protocol Restores the default protocol as "TCP".
5: Commands and Levels accept mode always Enables the tunneling server to always accept tunneling connections. accept mode any character Enables the tunneling server to accept tunneling connections only when a accept mode disable Disables accept mode tunneling. accept mode modem control asserted Enables the tunneling server to accept tunneling connections when the modem accept mode modem emulation Enables modem emulation for accept mode tunneling.
5: Commands and Levels password Enters the next lower level. protocol ssh Uses SSH protocol for accept mode tunneling. protocol ssl Uses SSL protocol for accept mode tunneling. protocol tcp Uses TCP protocol for accept mode tunneling. protocol tcp aes Uses TCP protocol with AES encryption for accept mode tunneling. protocol telnet Uses Telnet protocol (with IAC) for accept mode tunneling. rss trace connections disable Disables RSS Trace of accept mode connections.
5: Commands and Levels no from Removes From address for email alerts. no overriding domain Removes the overriding domain name option. no replyto Removes Reply-To address for email alerts. no subject Removes subject used for email alerts. no to Removes To address for email alerts. no trigger Disables the trigger to send an email. overriding domain Sets a domain name that will be used when connecting to an SMTP server to priority high Sets X-Priority for email alerts to 2.
5: Commands and Levels no to Removes To address for email alerts. no trigger Disables the trigger to send an email. overriding domain Sets a domain name that will be used when connecting to an SMTP server to priority high Sets X-Priority for email alerts to 2. priority low Sets X-Priority for email alerts to 4. priority normal Sets X-Priority for email alerts to 3. priority urgent Sets X-Priority for email alerts to 1. priority very low Sets X-Priority for email alerts to 5.
5: Commands and Levels priority high Sets X-Priority for email alerts to 2. priority low Sets X-Priority for email alerts to 4. priority normal Sets X-Priority for email alerts to 3. priority urgent Sets X-Priority for email alerts to 1. priority very low Sets X-Priority for email alerts to 5. replyto Sets Reply-To address for email alerts. send Sends an email using the current settings. server port Sets the port used by the SMTP server.
5: Commands and Levels priority very low Sets X-Priority for email alerts to 5. replyto Sets Reply-To address for email alerts. send Sends an email using the current settings. server port Sets the port used by the SMTP server. show Displays email settings. show history Displays the last 20 commands entered during the current CLI session. show log Displays the email log. show statistics Displays email statistics. subject Sets the subject for email alerts.
5: Commands and Levels eventtrak Changes to the command level for EventTrak configuration. exit Exits to the enable level. ftp Enters the ftp level. host Change to config host level http Enters the http level. icmp Changes to the command level for ICMP configuration and status. if Changes to the interface configuration level. ip Changes to the command level for IP configuration and status. ip filter Enters the config-filter level.
5: Commands and Levels connections. connect mode any character Enables the tunneling server to establish a tunneling connection when a connect mode disable Disables connect mode tunneling. connect mode modem control asserted Enables the tunneling server to make tunneling connections when the modem connect mode modem emulation Enables modem emulation for connect mode tunneling.
5: Commands and Levels protocol udp aes Uses UDP protocol with AES encryption for connect mode tunneling. reconnect time Sets the reconnect time value for tunneling connections established by the remote address Sets the remote host to establish tunneling connections with. remote port Sets the remote port to use for connect mode tunneling. show Displays the current configuration. show history Displays the last 20 commands entered during the current CLI session.
5: Commands and Levels email connect Sets an email profile to use to send an email alert upon establishing email disconnect Sets an email profile to use to send an email alert upon closing exit Returns to the tunnel level.
5: Commands and Levels auto show tlog Continuously displays the internal trouble log. auto show upload Continuously displays the status of firmware upload. clrscrn Clears the screen. cpu speed Sets the CPU speed. default cpu speed Restores the default CPU clock rate. default long name Restores the default product long name. default short name Restores the default product short name. exit Exit to the enable level.
5: Commands and Levels disconnect (tunnel-disconnect:1) level commands character stop disable Does not watch for a stop character to disconnect. character stop enable Watches for a stop character to disconnect. clrscrn Clears the screen. exit Returns to the tunnel level. flush serial disable Does not flush serial data upon closing a tunneling connection. flush serial enable Flushes serial data buffer when a tunneling connection is closed.
5: Commands and Levels ping Ping destination 5 times with 5 second timeout ping Ping destination n times with 5 second timeout ping Ping destination n times with x timeout (in seconds) reload Reboot system reload factory defaults Reload factory defaults to permanent storage secret xcr dump Dump XML configuration containing secrets to the console secret xcr dump Dump specified XML configuration containing secrets to the console secret
5: Commands and Levels match Changes to the command level for EventTrak Match configuration. show history Displays the last 20 commands entered during the current CLI session. task Changes to the command level for EventTrak Task configuration. write Stores the current configuration in permanent memory. eventtrak 2 (config-eventtrak:2) level commands clrscrn Clears the screen. eventtrak Changes to the command level for EventTrak configuration.
5: Commands and Levels file> touch Create a file ftp (config-ftp) level commands admin password Sets the administrative password for the FTP server. admin username Sets the administrative username for the FTP server. clear counters Zeros FTP counters. clrscrn Clears the screen. default admin password Resets the FTP password to the default (PASS). default admin username Resets the FTP username to the default (admin). exit Returns to the config level.
5: Commands and Levels no remote address Clears the remote address of the host. no ssh username Clears the SSH username associated with the host. protocol ssh Sets the protocol to SSH. protocol telnet Sets the protocol to Telnet. remote address Sets the IP address of the remote host to connect to when this host is remote port Sets the remote port used to connect to the host. show Displays the current configuration.
5: Commands and Levels cepts when receiving max timeout Sets the maximum timeout the HTTP server waits when receiving a request. no clear counters Restores the HTTP counters to the aggregate values. port Sets the port number the HTTP server will use. server disable Disables the HTTP server. server enable Enables the HTTP server. show Displays the HTTP server settings. show auth Displays the HTTP server authentication settings.
5: Commands and Levels exit Exits to the config level. hostname Sets the host name. ip address Sets the IP address and network mask. link Enter link configuration level no default gateway Clears the default gateway. no dhcp client id Clears the DHCP client ID. no domain Clears the domain name. no hostname Clears the host name. no ip address Clears the IP address. no primary dns Clears the name of the primary DNS server.
5: Commands and Levels add Adds an entry to the IP filter table. clrscrn Clears the screen. exit Returns to the config level. remove Removes an entry from the IP filter table. show Displays the IP filter table. show history Displays the last 20 commands entered during the current CLI session. write Stores the current configuration in permanent memory.
5: Commands and Levels line Enters the line level. lpd Enters the configure lpd level. name Sets the name for this line. no clear line counters Restores the serial counters to the aggregate values. no command mode Disables command mode for the current line.
5: Commands and Levels command mode echo serial string disable Disables user-defined serial boot string to be echoed in the CLI. command mode echo serial string enable Enables user-defined serial boot string to be echoed in the CLI. command mode serial string Enables user to enter a custom string at boot time to enter command mode. command mode serial string Sets a string that can be entered at boot time to enter command mode.
5: Commands and Levels protocol lpd or tunnel Applies LPD or tunnel protocol on the line. protocol modbus ascii Applies Modbus ASCII protocol on the line. protocol modbus rtu Applies Modbus RTU protocol on the line. protocol none Uses no protocol on the line. protocol tunnel Applies tunnel protocol on the line. reassert Asserts line status with current configured values. show Displays the current status. show command mode Shows the command mode settings for the current line.
5: Commands and Levels kill Kills the current print job on the specified line. show Displays lpd status for the specified line. show history Displays the last 20 commands entered during the current CLI session. lpd 1 (config-lpd:1) level commands banner disable Disables printing banner for all print jobs. Only print the banner when a banner enable Enables printing banner for all print jobs. binary disable Treats print job as ascii text.
5: Commands and Levels write Stores the current configuration in permanent memory. lpd 2 (config-lpd:2) level commands banner disable Disables printing banner for all print jobs. Only print the banner when a banner enable Enables printing banner for all print jobs. binary disable Treats print job as ascii text. Filters out all non-ascii characters and binary enable Treats print job as binary. Sends data byte-for-byte to the printer. capture disable Redirects serial output back to the line.
5: Commands and Levels either a or A will case sensitive yes Sets EventTrak monitoring to be case sensitive, requiring an exact match. clrscrn Clears the screen. default case sensitive Sets the default EventTrak monitoring case sensitivity, which is not case default timeout milliseconds Restores the default EventTrak monitoring timeout. exit Exits to the EventTrak level. match Changes to the command level for EventTrak Match configuration.
5: Commands and Levels string set Sets the EventTrak monitoring match string. task Changes to the command level for EventTrak Task configuration. timeout milliseconds Sets the EventTrak monitoring timeout milliseconds. Old data that might wildcard Sets the EventTrak monitoring wildcard character. Where it is placed in the write Stores the current configuration in permanent memory. match 2 (config-eventtrak-match:2.
5: Commands and Levels no string Removes the EventTrak monitoring match string. no wildcard Removes the EventTrak wildcard character. rss trace matches disable Turns off RSS tracing of EventTrak string matches. rss trace matches enable Turns on RSS tracing to post each time EventTrak matches the string. show Displays the current configuration. show history Displays the last 20 commands entered during the current CLI session.
5: Commands and Levels either a or A will case sensitive yes Sets EventTrak monitoring to be case sensitive, requiring an exact match. clrscrn Clears the screen. default case sensitive Sets the default EventTrak monitoring case sensitivity, which is not case default timeout milliseconds Restores the default EventTrak monitoring timeout. exit Exits to the EventTrak level. match Changes to the command level for EventTrak Match configuration.
5: Commands and Levels display remote ip disable The incoming RING has nothing following it. display remote ip enable The incoming RING is followed by the IP address of the caller. echo commands disable Does not echo modem commands. echo commands enable Echoes modem commands. echo pluses disable Does not echo the +++ characters when entering modem command mode. echo pluses enable Echoes the +++ characters when entering modem command mode.
5: Commands and Levels incoming connection manual Wait for an ATA command before answering an incoming network connection. no connect string Removes optional CONNECT string information for modem emulation. reassert Asserts tunnel modem status with current configured values. response type numeric Uses numeric type responses. response type text Uses text type responses. show Displays the current configuration. show history Displays the last 20 commands entered during the current CLI session.
5: Commands and Levels clrscrn Clears the screen. default mode Requires exclusive control of the output for connect mode connection. exit Exits to the next higher level. mode exclusive control Requires exclusive control of the output for connect mode connection. mode logical-or Does not require exclusive control of the output for connect mode connection. no output Discontinues enabling any output while the connect mode connection is up.
5: Commands and Levels CLI session. threshold Sets the threshold (byte count). If the queued data reaches this threshold timeout Sets the timeout value for packing mode in milliseconds. trailing character Sets the trailing character for packing mode. write Stores the current configuration in permanent memory. packing (tunnel-packing:1) level commands clrscrn Clears the screen.
5: Commands and Levels show ibio2100 Show system information trace route Trace route to destination rss (config-rss) level commands clear rss Clear the RSS Feed data clrscrn Clears the screen. default max entries Restores the default number of RSS feed entries. exit Exits to the configuration level. feed disable Disables RSS feed. feed enable Enables RSS feed. max entries Sets the maximum number of RSS feed entries. persist disable Disables RSS feed data persistence.
5: Commands and Levels clrscrn Clears the screen. community ro Sets the SNMP read-only community string. community rw Sets the SNMP read-write community string. contact Sets the SNMP system contact information. default description Restores the SNMP system description to its default. description Sets the SNMP system description. exit Returns to the config level. host Sets the primary SNMP trap host.
5: Commands and Levels host generate dsa 768 Generate DSA public and private keys host generate rsa 1024 Generate RSA public and private keys host generate rsa 512 Generate RSA public and private keys host generate rsa 768 Generate RSA public and private keys host user Sets Host username and password host user Sets Host username, password and either a RSA or DSA public key.
5: Commands and Levels default local port Restores the default syslog local port. default remote port Restores the default syslog remote port. exit Returns to the config level. host Sets the address of the syslog recipient. level Sets the minimum severity of events that will be logged. local port Sets the syslog local port. no host Removes the address of the syslog recipient. no level Disables logging of all events.
5: Commands and Levels CLI session. step Changes to the command level for EventTrak Task Step configuration. task Changes to the command level for EventTrak Task configuration. write Stores the current configuration in permanent memory. task 1 (config-eventtrak-task:1.1) level commands activity none Sets the EventTrak task activity to None. activity output Sets the EventTrak task activity to control the designated output pin.
5: Commands and Levels activity ping Sets the EventTrak task activity to send a ping once per second. clrscrn Clears the screen. default activity Sets the default EventTrak task activity, which is None. default description Removes the description of an EventTrak control task. default output control Sets the default EventTrak output control, which is Exclusive. description Sets the description of an EventTrak control task. It will appear in exit Exits to the EventTrak level.
5: Commands and Levels match Changes to the command level for EventTrak Match configuration. no ping address Removes the EventTrak ping address.
5: Commands and Levels EventTrak task. rss trace steps disable Turns off RSS tracing of EventTrak task steps. rss trace steps enable Turns on RSS tracing of each step taken by an EventTrak task. rss trace triggers disable Turns off RSS tracing of EventTrak task triggers. rss trace triggers enable Turns on RSS tracing of triggers emitted by this EventTrak task. show Displays the current configuration. show history Displays the last 20 commands entered during the current CLI session.
5: Commands and Levels step Changes to the command level for EventTrak Task Step configuration. task Changes to the command level for EventTrak Task configuration. write Stores the current configuration in permanent memory. tcp (config-tcp) level commands ack limit Sets the number of packets that must be received before an ACK is forced. auto show stats Continuously shows TCP statistics clear counters Zeros TCP counters clrscrn Clears the screen.
5: Commands and Levels tings. send break Sets the optional send break character. show Displays the current configuration. show history Displays the last 20 commands entered during the current CLI session. terminal Enters the configure-terminal level. terminal network Enters the configure-terminal level for the network. terminal type Sets the terminal type. tunnel Enters the tunnel level. write Stores the current configuration in permanent memory.
5: Commands and Levels echo disable Disables echoing of characters received on the line back to the line. echo enable Enables echoing of characters received on the line back to the line. exit Exits to the configuration level. exit connect menu disable On the login connect menu, removes the menu item allowing the user to exit exit connect menu enable On the login connect menu, inserts the menu item allowing the user to exit line Enters the line level.
5: Commands and Levels clrscrn Clears the screen. connect Enters the connect level for this tunnel. disconnect Enters the disconnect level for this tunnel. echo start character disable Disables forwarding (tunneling) of the start character. echo start character enable Enables forwarding (tunneling) of the start character. echo stop character disable Disables forwarding (tunneling) of the stop character. echo stop character enable Enables forwarding (tunneling) of the stop character.
5: Commands and Levels modem Enters the modem level for this tunnel. no clear accept counters Unzeros accept counters no clear aggregate counters Unzeros aggregate counters no clear all counters Unzeros all tunnel counters no clear connect counters Unzeros connect counters no start character Removes the start character. no stop character Removes the stop character. packing Enters the packing level for this tunnel. serial Enters the serial level for this tunnel.
