Specification Sheet

Page: 1
Larson Electronics LLC www.LarsonElectronics.com
9419 E US HWY 175, Kemp, TX 75143 Phone: [phone] Fax: [phone] Email: [e-mail]

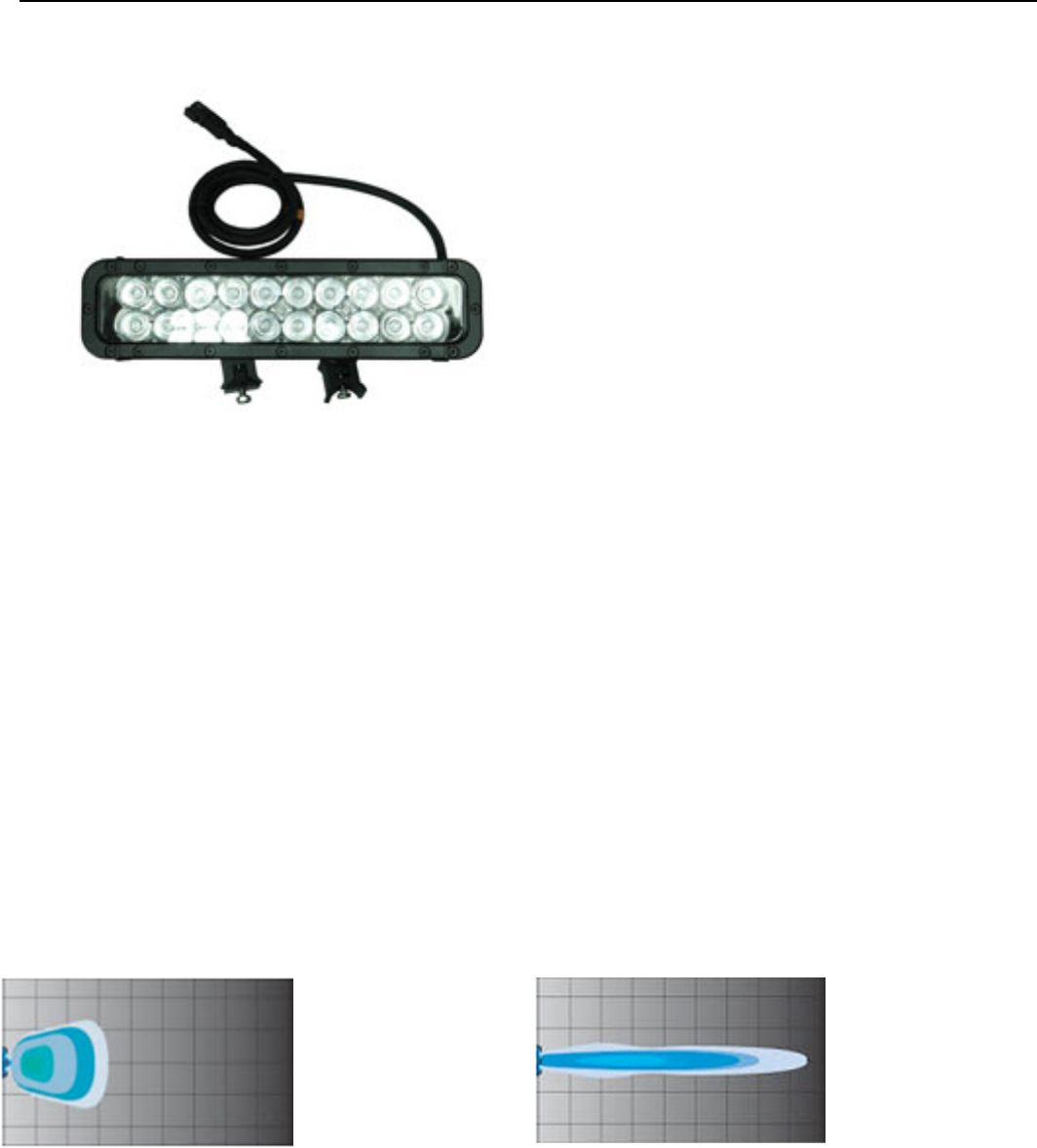

Infrared LED Light Bar - 20 IR LEDs - 60 Watts 750/ 850/ 940NM - Extreme Environment - 800'L X
Part #: LEDLB-20E-IR
Buy American Compliant
The Larson Electronics LEDLB-20E-IR LED Light Bar offers high infrared light output and extreme durability. This IP68 rated infrared
LED light bar is waterproof to three feet and produces an infrared light beam that can only be seen through the use of night vision
goggles. 750Nm, 850Nm or 940Nm versions. This light can run on any voltage from 9 to 42 volts and provides an extremely rugged
infrared lighting solution that is ideal for use in commercial and industrial security applications as well as military environments.
Click here to see the LED version of this
The LEDLB-20E-IR infrared LED light bar from Larson Electronics produces light in the infrared 750Nm, 850Nm or 940Nm end of the light
spectrum depending upon the version selected. Twenty Edison Edixeon® 3 watt infrared emitters producing 180 lumens each are arranged in
rows and paired with high purity 10 degree optics to produce a tightly focused spot beam 800' long by 80' wide. We offer optional floodlight
versions of this light that have 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture. These LED
light bars are IP68 rated and waterproof to 3 feet, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most
demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and
feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations,
impacts, waves, hard rains, sand and high winds.
LEDLB-20E-IR 35° Flood Beam
(Opt)
LEDLB-20E-IR 10° Spot Beam
(Stnd)
